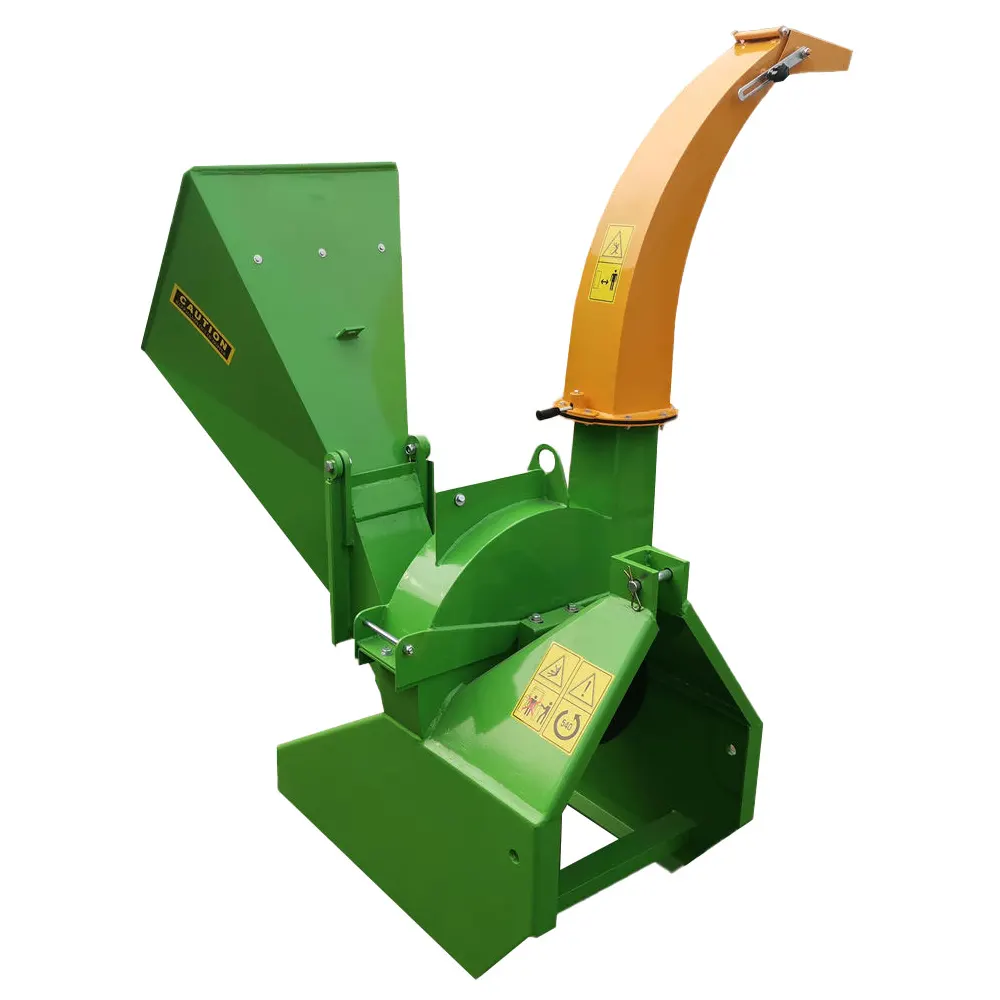

BX42S PTO Wood Chipper
Our upgraded BX42 shreds wood up to 5″ in diameter and has improved suction.

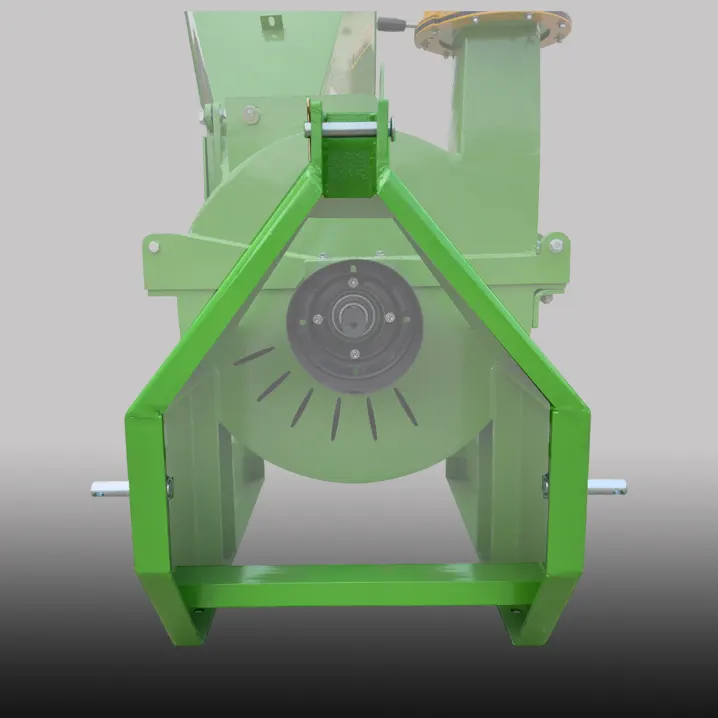

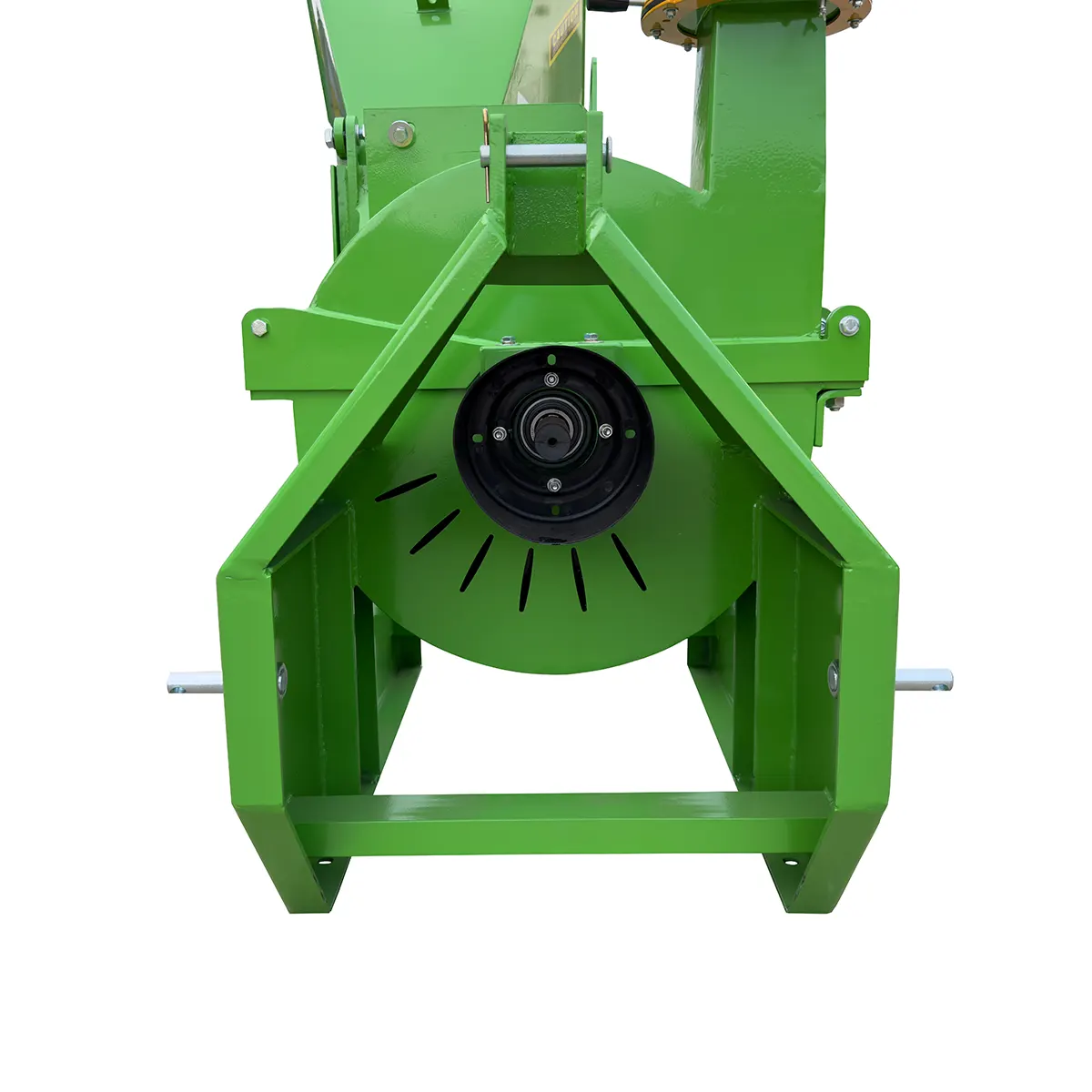

Our BX42S Wood Chipper is powerful and reliable, but still easy to handle. It shreds all kinds of woods up to 5 inches in thickness. The BX42S includes the PTO shaft with a shear bolt and connects to your CAT I 3-Point Hitch. The upper and lower pins are included and additional bushings for Cat II mounting are available.

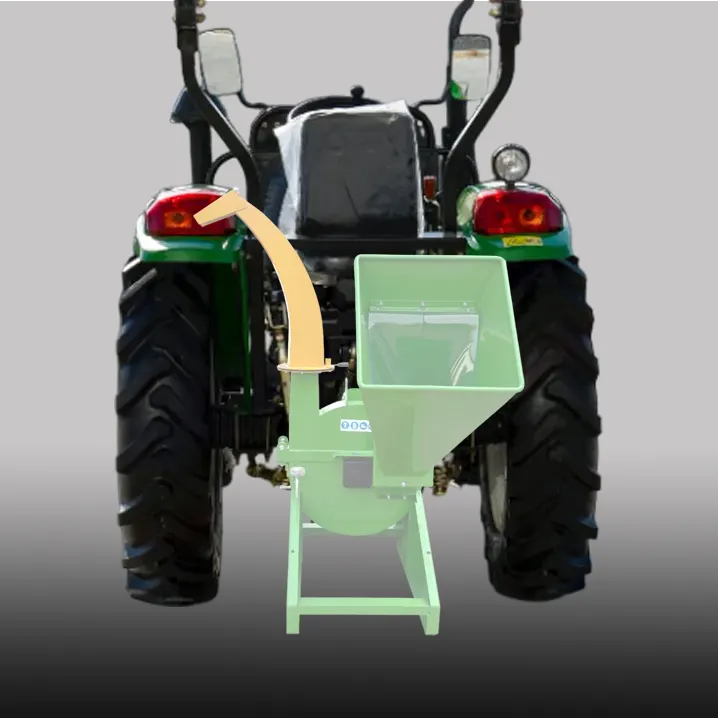

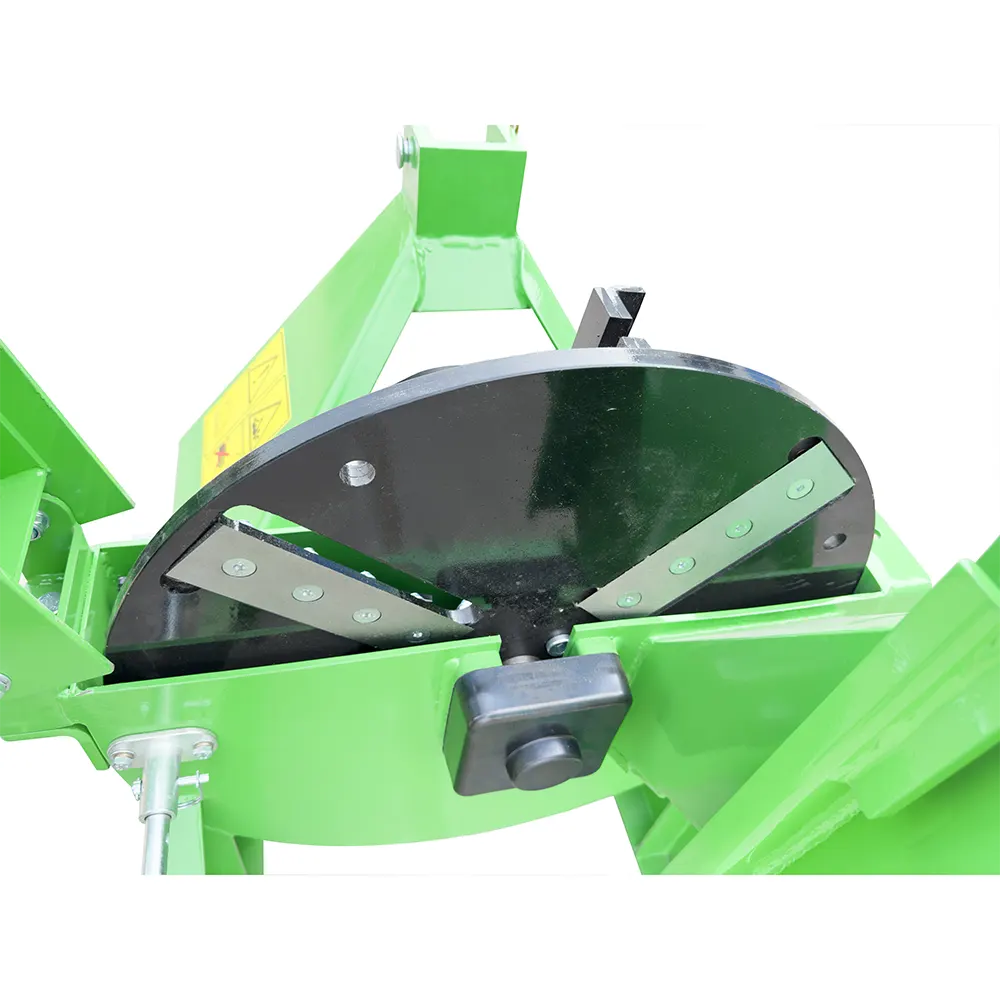

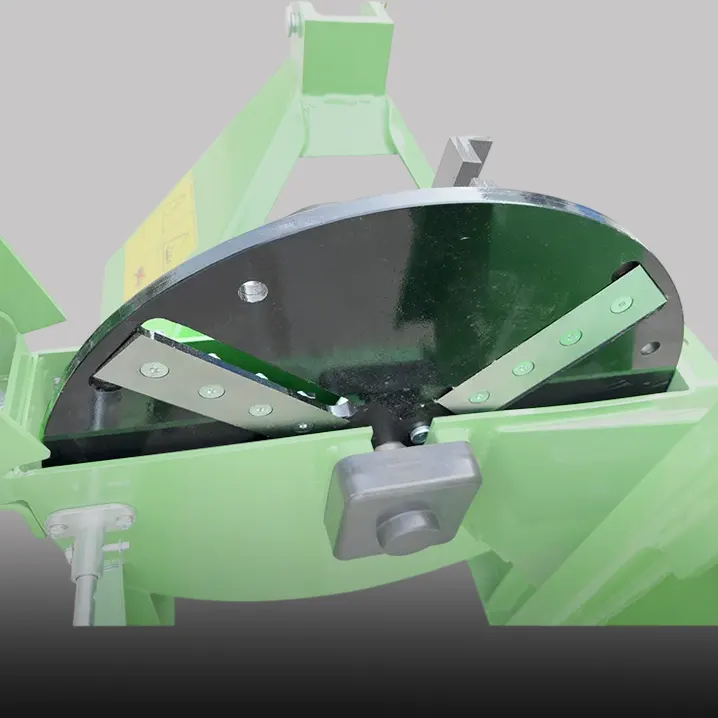

For maximum performance and flexibility, we recommend you operate your tractor between 25 – 35 HP and a PTO shaft speed of 540 RPM. The direct PTO drive system turns the well-balanced 37kg (82 lb.) rotor with its four 8″ knives, made from hardened tooling steel.

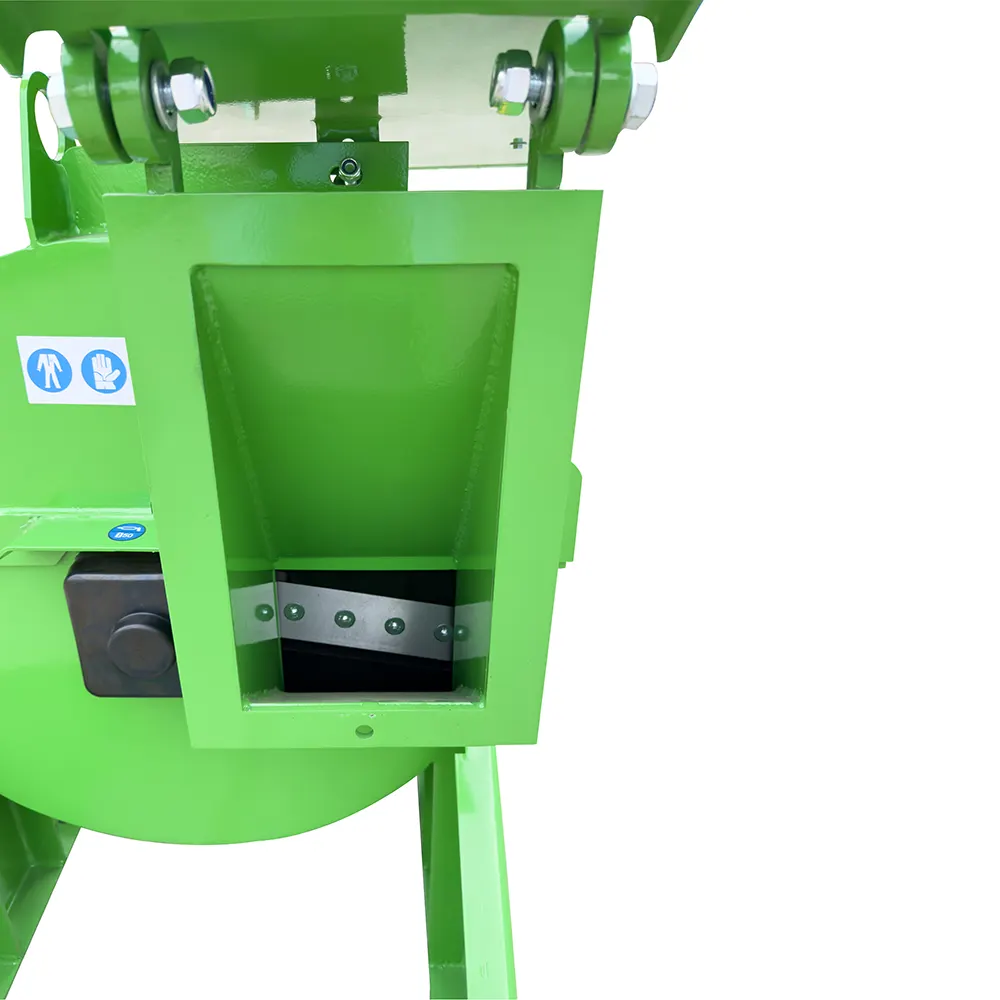

The fast-turning rotor is cutting the wood about 9 times per second and creates the centrifugal force pulling in the material. The counter knife setting produces shredded material from ¾ in. to 1 ½ in. size. The rotor speed and the specially designed rotor winglets create the air suction which throws out the shredded material and makes wood jams virtually impossible.

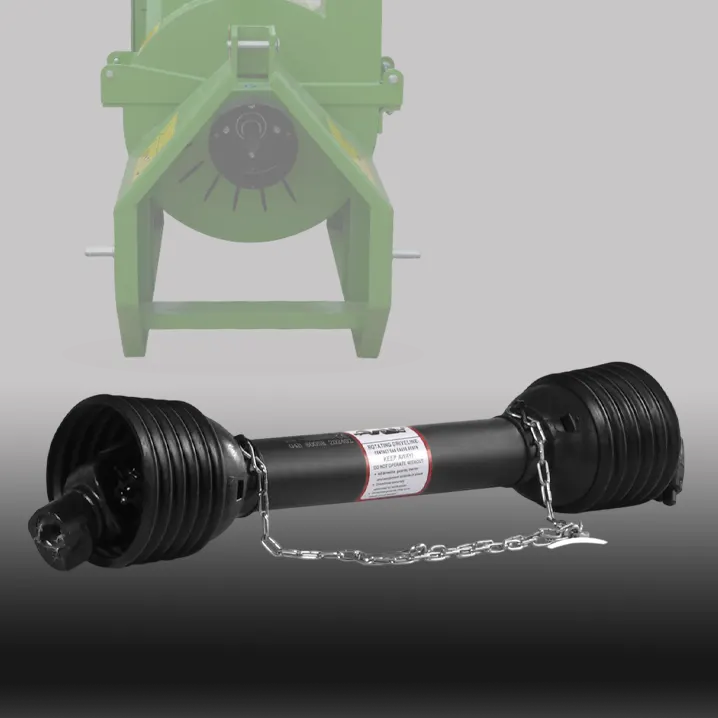

The heavy half-inch thick rotor disc is equipped with branch breakers processing very thin branches as well. The rotor is directly driven by the PTO shaft (which is included in the shipment).

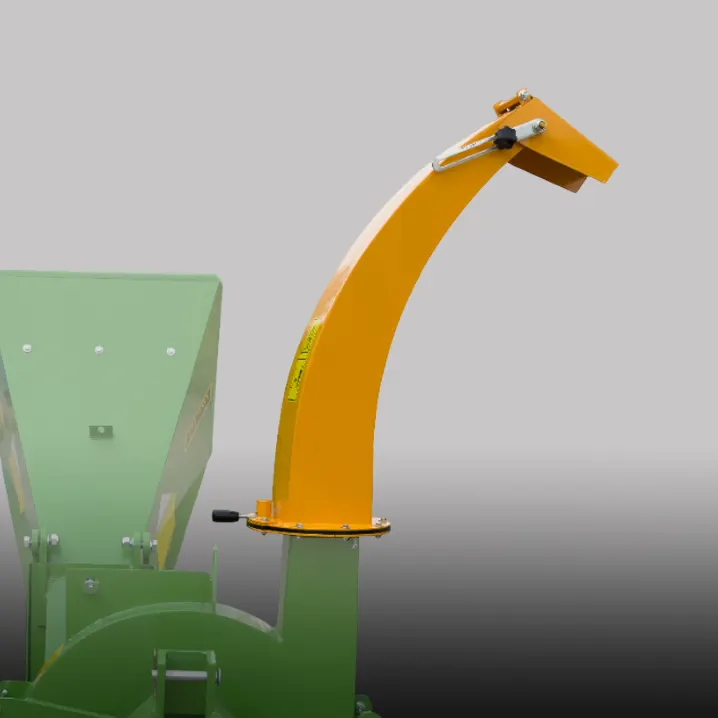

The discharge funnel is located at 62in. in height and can be turned by 230° with an adjustable throwing angle. The shredded material can be thrown up to 20 ft. in distance making it easy to fill trailers or containers. The shredding capacity is 200 to 250 cu.ft./hr. depending on the type of material to be shredded.
See the Victory Tractor BX42S Wood Chipper in action:
To learn more about Wood Chippers check out:

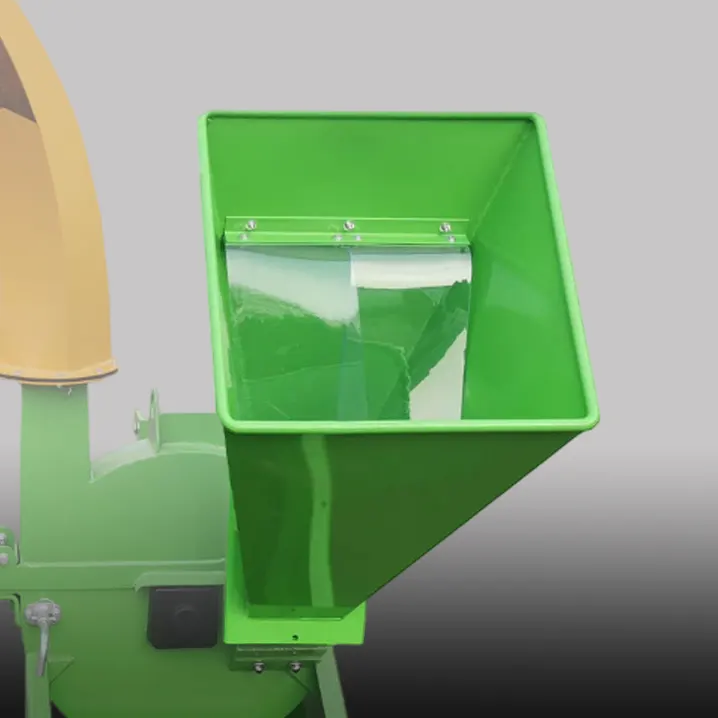

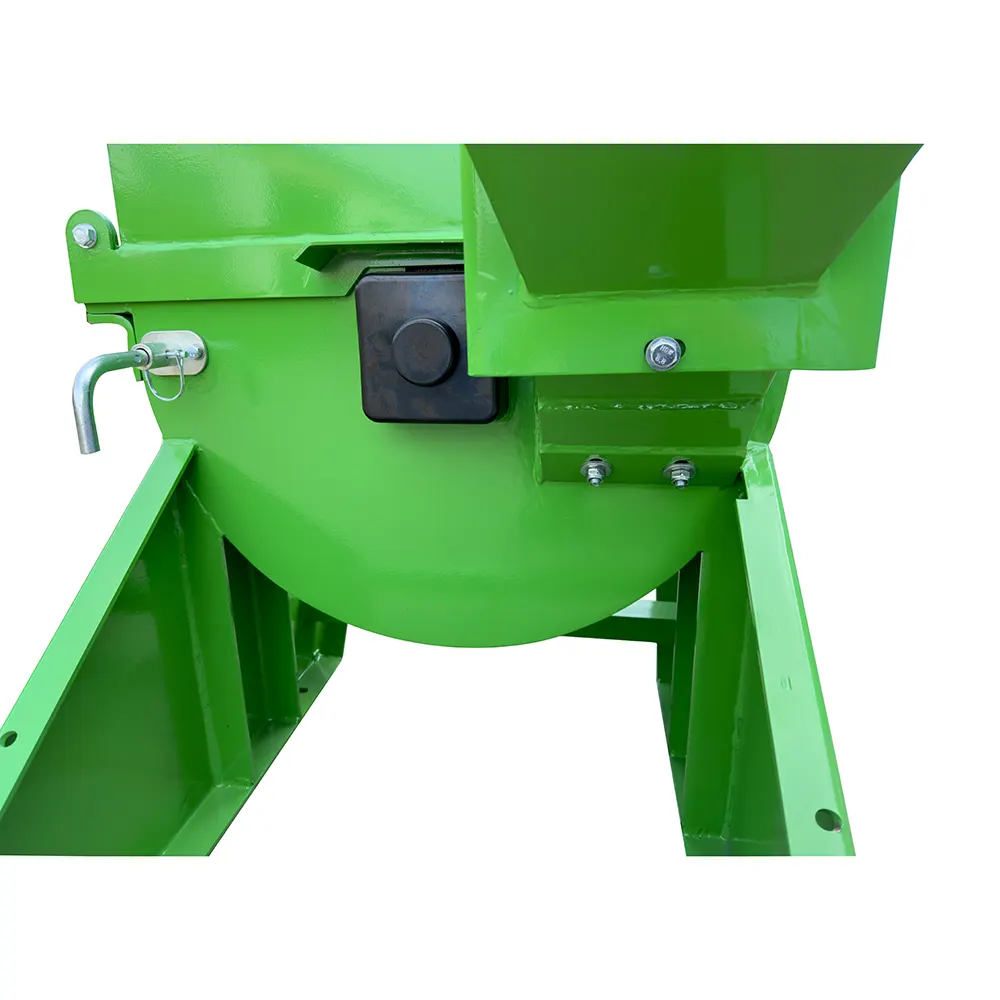

Our BX42S PTO wood chipper is designed for easy maintenance. The rotor cover opens by removing only one screw to get access to the knives. For easy transportation, the input chute can be lifted up and secures with a pin.
Victory’s BX series PTO wood chippers comply with all safety regulations and are CE tested following the 2006/42/EC machine directive.
Victory Tractor Implements offers the very best value in a heavy-duty tractor-driven wood chipper, supported with a maximum in personalized customer service.
Partially assembled machines do not contain any fuel, oil, or other fluids or grease needed for operation! BEFORE USING THE MACHINE please carefully read the user’s manual.
|Technical Data||BX42S for 2021|
|Dimensions (HxWxD)||77 x 40 x 43 in.|
|Total weight||408 lb. (184kg)|

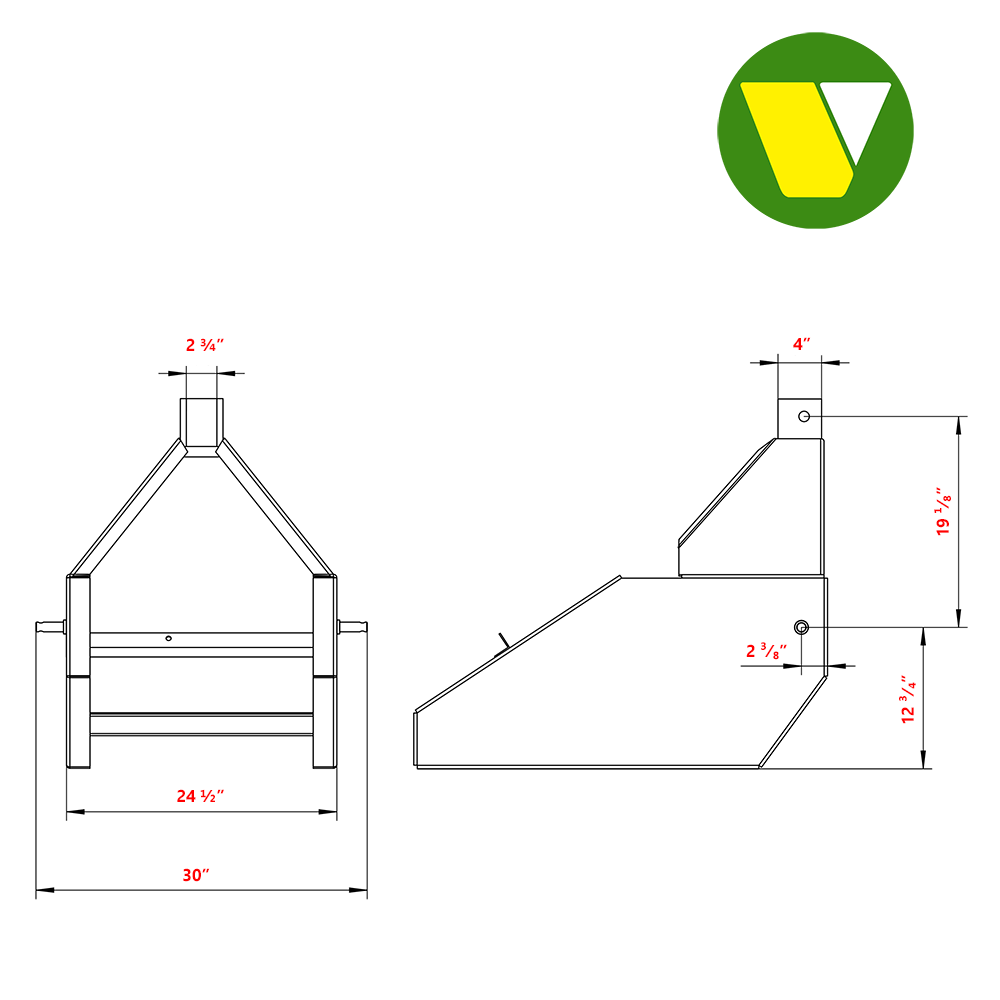

|3-point hitch||CAT I (Cat II bushings are av.)|
|PTO shaft RPM||540-1,000 U/min|
|Length of PTO shaft||40 in.|
|PTO safety||shear bolt|
|Drive system||direct drive|
|Tractor engine power recommended||18-50hp / 13-37kw|
|Power recommended for max. performance||25-35hp|
|Rotor diameter||25 in.|
|Rotor width||1/2 in. + winglets|
|Rotor weight||82 lb. (37kg)|
|Number of knives||4 + 1|
|Hopper opening||20 x 20 in.|
|Chipper housing opening||5″ x 10″|
|Recommended max. diameter||approx. 5 in|
|Adjustable size of shredded material||3/4 – 1 1/2 in.|
|Height of output funnel||62 in.|
|Housing material strength||6mm|
|Painting||powder coating, green-yellow|
|Transport Crate (LxWxH)||46″ x 40″ x 52″|
Call Victory Tractor at (562) 534-8182 to place your order today!
