BX52 Self Feeding PTO Wood Chipper

Victory’s BX52 Wood Chipper! Tractors with 18-50 HP, Shredding up to 5 ” diameter.

PTO Shaft IncludedFree Shipping | Two Year Warranty

Product Type

MDWC-1500 | MDWC-2500 | BX42S | BX52 | BX510H | WC8H | WC10H

Questions?  Check out our blog post Self Feeding vs. Hydraulic: Which Wood Chipper is Right for Me?

Description

BX52S Self-Feeding PTO Wood Chipper

Victory BX52 wood chipper is ideal for small compact tractors with 18hp to 50hp with CAT I 3-point hitch.

The Victory Tractor Implements BX52 is a powerful and robust but easy to handle wood chipper for wood diameter of up to 5 inches. The BX52 wood shredder includes the PTO shaft with purchase.  To get maximum performance your wood shredder, your tractor should have at least 30HP and a PTO shaft speed of 540 RPM.

Performance:

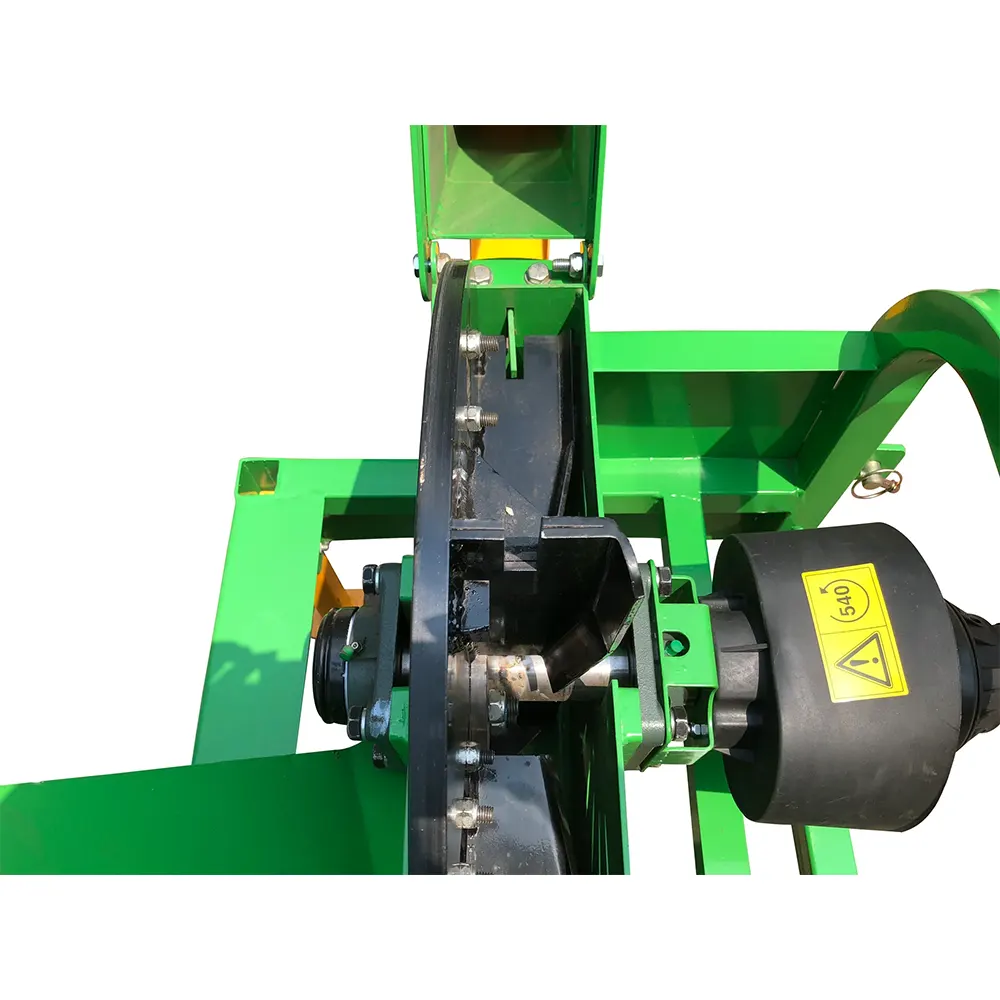

Heavy duty rotor and replaceable rotor shaft: The durable rotor is 143 lbs and 2/3 inch thick. All of our chipper rotor are precisely electrically balanced. The direct PTO drive system turns the well balanced 143 lbs rotor inside the wood chipper. The rotor shaft is separately replaceable. The rotor is directly driven by the PTO shaft which is included in the shipment.

A8-tooling-steel knife: It’s with four 8.2 inch length knives from hardened A8-tooling-steel. The rotor knife is reversible.

Chipping performance: The fast turning knife rotor is cutting the wood about 35 times per second which pulls in the material. The newly designed counter knife setting of the wood shredder allows a precise 0 – 0.2 inch distance setting to the rotor knives and creates shredded material from 0.7 to 1.5 inch in size.

Aerodynamic Design: The high rotor speed and the specially designed rotor winglets create an air suction inside the wood shredder, which throws out the shredded material and makes wood jams virtually impossible.

Branch beaker: The rotor housing is equipped with replaceable branch breakers that will reliably reduce the size of very thin branches with less than 1/5″ diameter.

Efficient shredding capacity: The wood chipper discharge funnel is located in 72 inch height and can be turned by 230° with an adjustable throwing angle. The shredded material can be thrown up to 20 feet in distance making it easy to fill trailers or containers. The shredding capacity is 20 – 25 cu ft/h depending on the type of wood.

Folding feeding chute: For easy transportation and convenient storage, the input chute can be lifted up and secured by a pin.

See the Victory Tractor BX52 Wood Chipper in action:

To learn more about Wood Chippers check out:

Self Feeding or Hydraulic: Which Wood Chipper is Right for Me?

The Ultimate Wood Chipper Guide

Maintenance:

Our BX52 PTO wood chipper is designed for easy maintenance. The rotor cover opens by removing only one screw to get access to the knives. For easy transportation, the input chute can be lifted up and secures with a pin.

Safety:

Victory’s BX series PTO wood chippers comply with all safety regulations and are CE tested following the 2006/42/EC machine directive.

Victory Tractor Implements offers the very best value in a heavy-duty tractor-driven wood chipper, supported with a maximum in personalized customer service.

ATTENTION:

Partially assembled machines do not contain any fuel, oil, or other fluids or grease needed for operation! BEFORE USING THE MACHINE please carefully read the user’s manual.

Technical Data
BX52
Dimensions (HxWxD)
54x58x72inch
total weight
452lbs
3-point hitch
CAT I
max. PTO shaft RPM
540 RPM
length of PTO shaft
27inch
drive system
direct drive
Tractor engine power recommended
18-50hp / 13-37kw
power needed for max. performance
30-40hp
rotor diameter
23inch
rotor width
0.63inch/16mm + winglets
rotor weight
143lbs
rotor shaft
replaceable, not welded
number of knives
4 + 1
length of rotor knife
8.2inch
counter knife adjustment range
0 ~ 0.2 inch
hopper opening
21×21 inch
chipper housing opening
11×5.5 inch
recommended diameter of shredding material
<5 inch
adjustable size of shredded material
0.7 – 1.5 inch
feeding system
self feeding
discharge height
72inch
painting
powder coated
transport rack (LxWxH)
46x39x49 inch





Call Victory Tractor at (562) 534-8182 to place your order today!
