Description

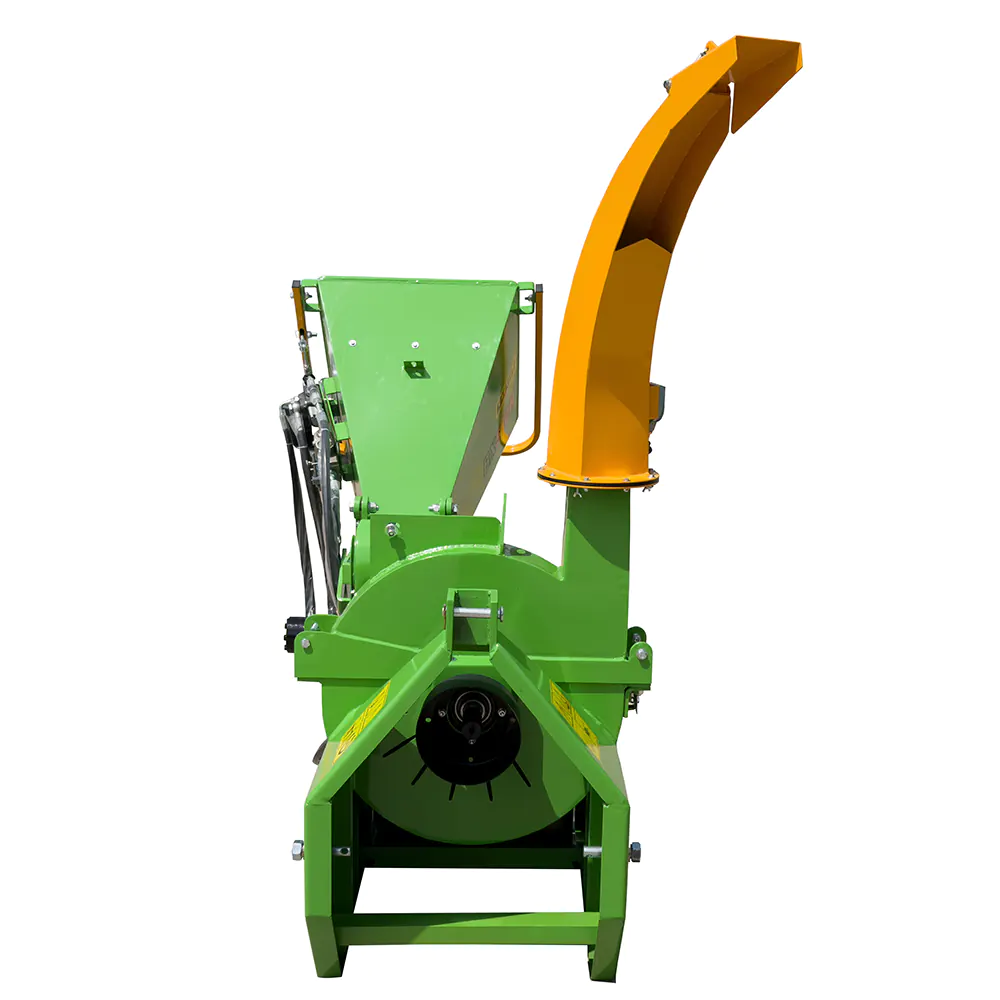

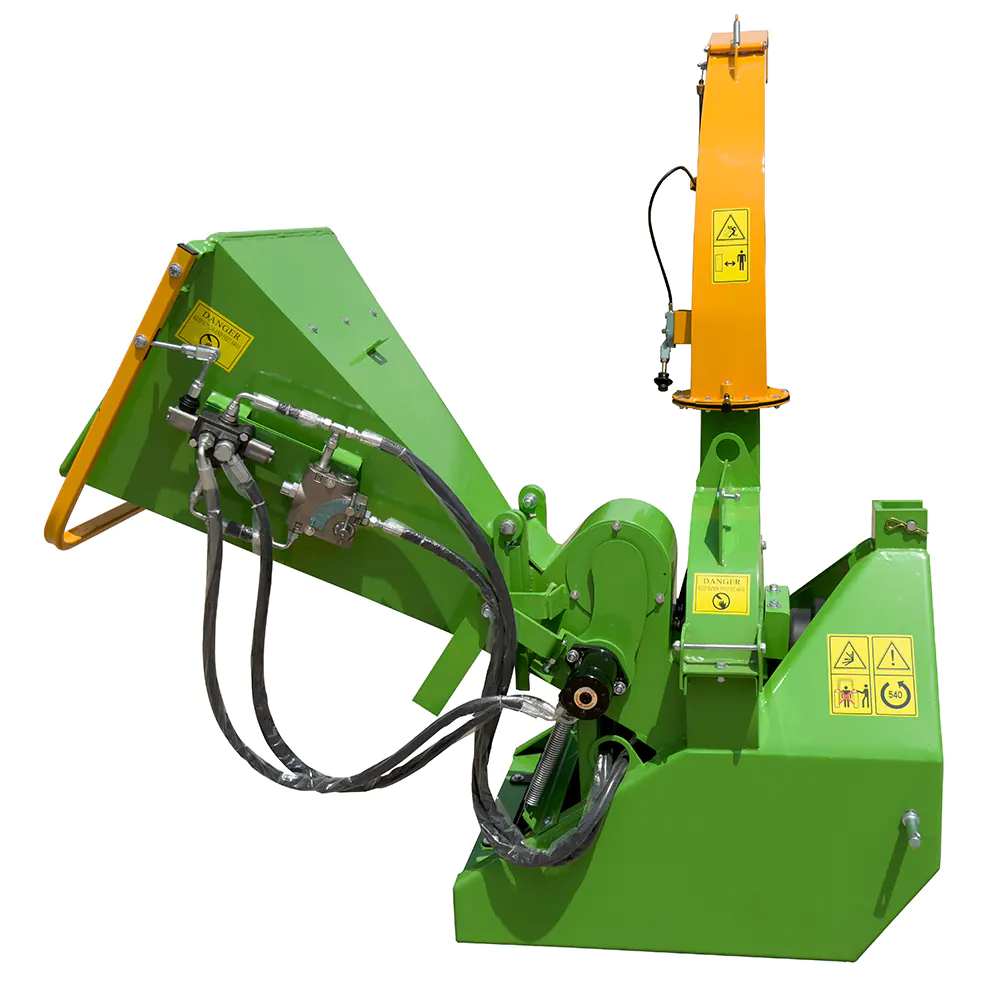

BX510H Wood Chipper with self-contained Hydraulic System
Victory’s BX510H is a solid and compact PTO driven Wood Chipper with a hydraulic motor, pump, and tank to provide a hydraulic Infeed System for high volume reliable wood chipping!
The 6 1/4” x 8” housing opening allows for commercial-like wood chipping easily up to 5″ in diameter. The chipper handles large branches, including leaves and twigs, as well as heavy-duty logs.

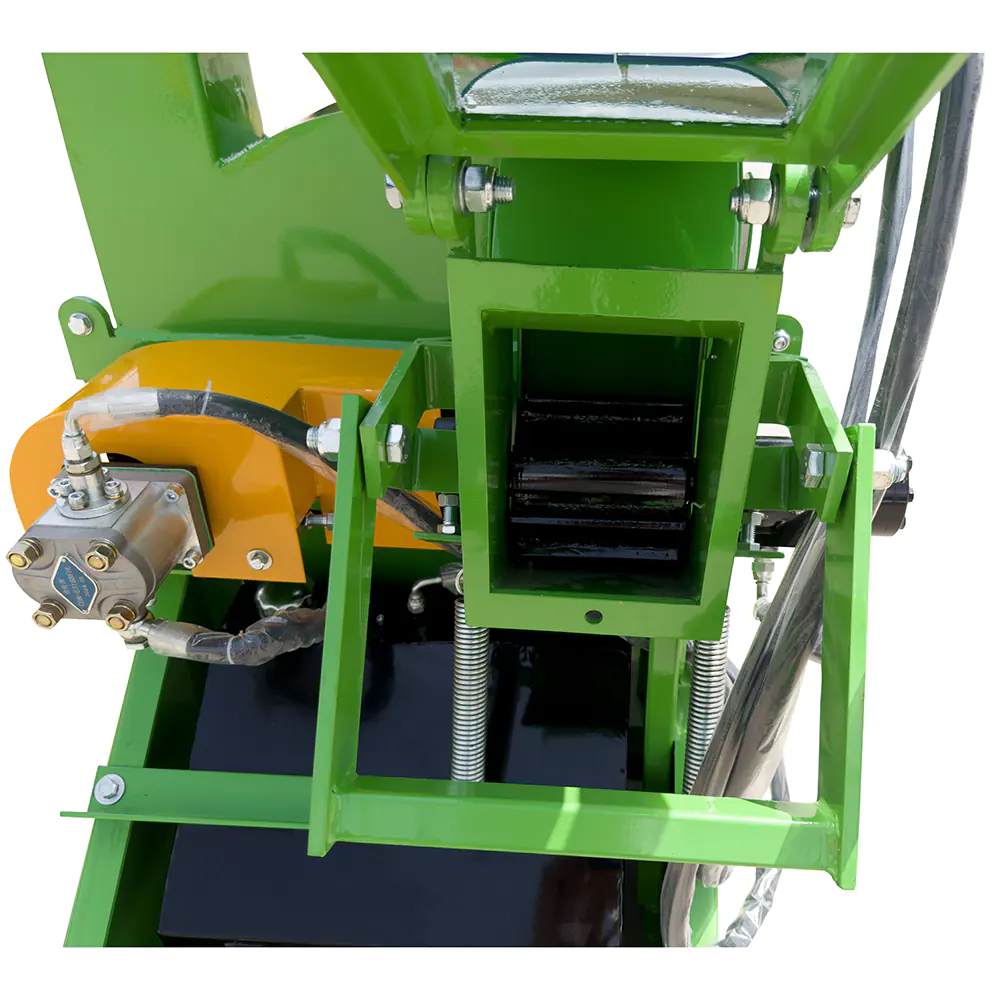

The BX510H utilizes its hydraulic system via the roller to pull the wood inside. The hydraulic pump drives the infeed roller dragging the wood into the chipper. The Safety Bracket operates the hydraulic controls via its “IN-OUT-STOP” function.
Features:

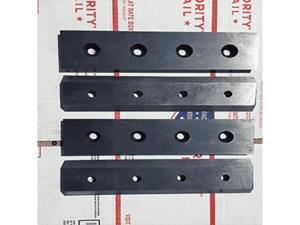

• 4 reversible carbon steel knives plus 1 counter knife
• Easy rotor access by just opening the flywheel shell
• Safety stop bar (handle) w/reverse
• Quick hitch compatible (for CAT I only, check your dimensions)
• Fold-up input chute for storage
• Nylon wraps protect hydraulic hoses
• 120 lb. 26″ Diameter rotor (electronically balanced)
• Variable Infeed speed up .78 ft./min. (depending on PTO RPM)
• Heavy-Duty steel shaft bearings
• Colors: Housing in Green, Hydraulics handle & output chute Yellow
For more details please see the Performance Features below and take a look at the Technical description.
Performance:
The Chipper can be operated between 540 to 1,000RPM thus shredding between 9 to 16 times per second utilizing 4 cutting knives (8 1/4 ” long, hardened tool steel) against 1 counter knife. Combined with the hydraulic infeed system wood chipping is now efficient and easy.

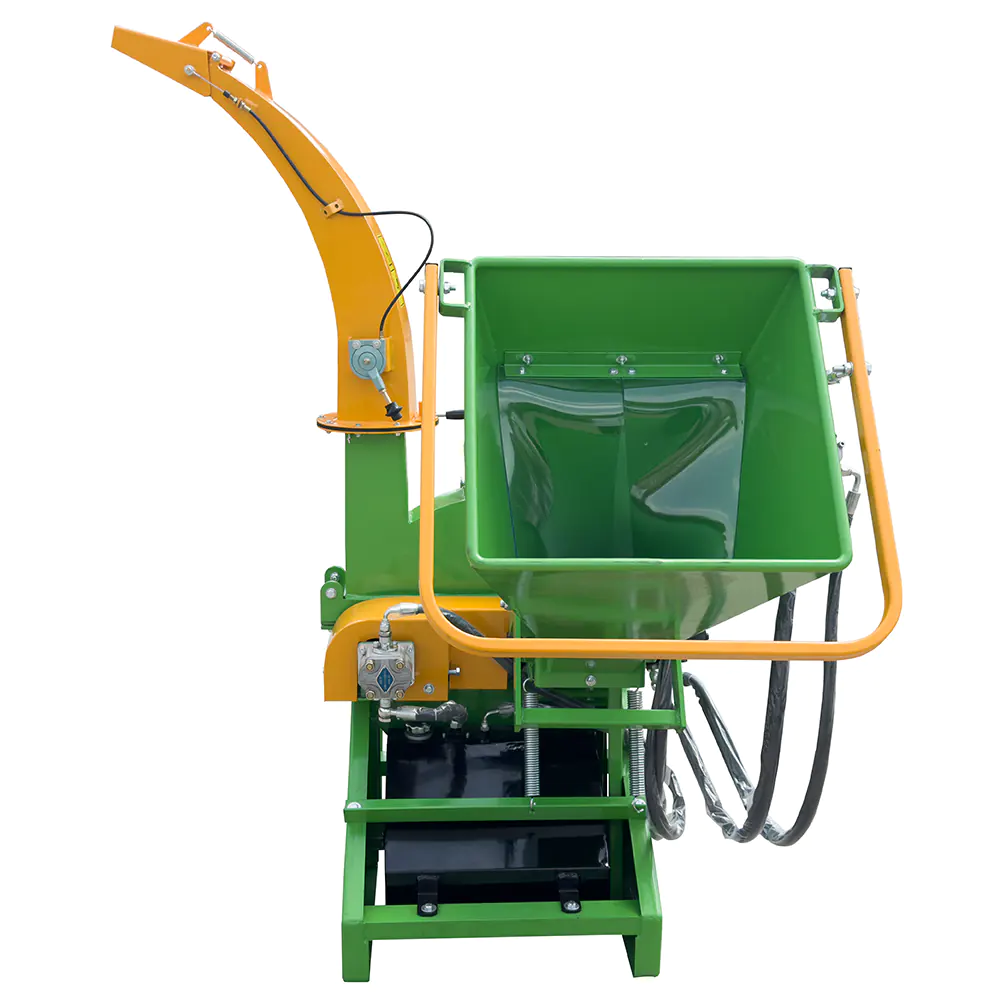

The large opening of the infeed chute (26″ x 34″) allows for reliable and professional wood chipping without concerns. The output chute can be turned 270 degrees.

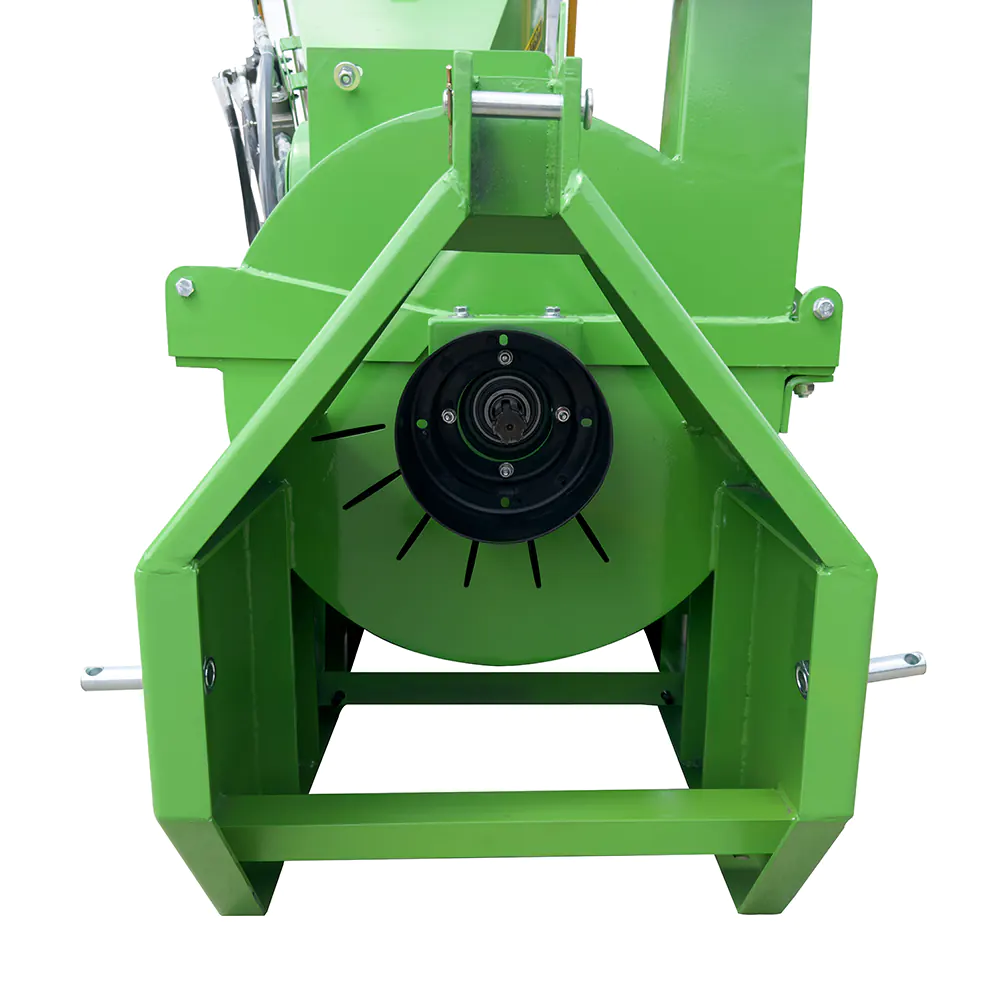

The compact BX510H is suitable for your small to mid-sized tractors between 18 to 50 HP, utilizing your CAT I 3-Point Hitch.

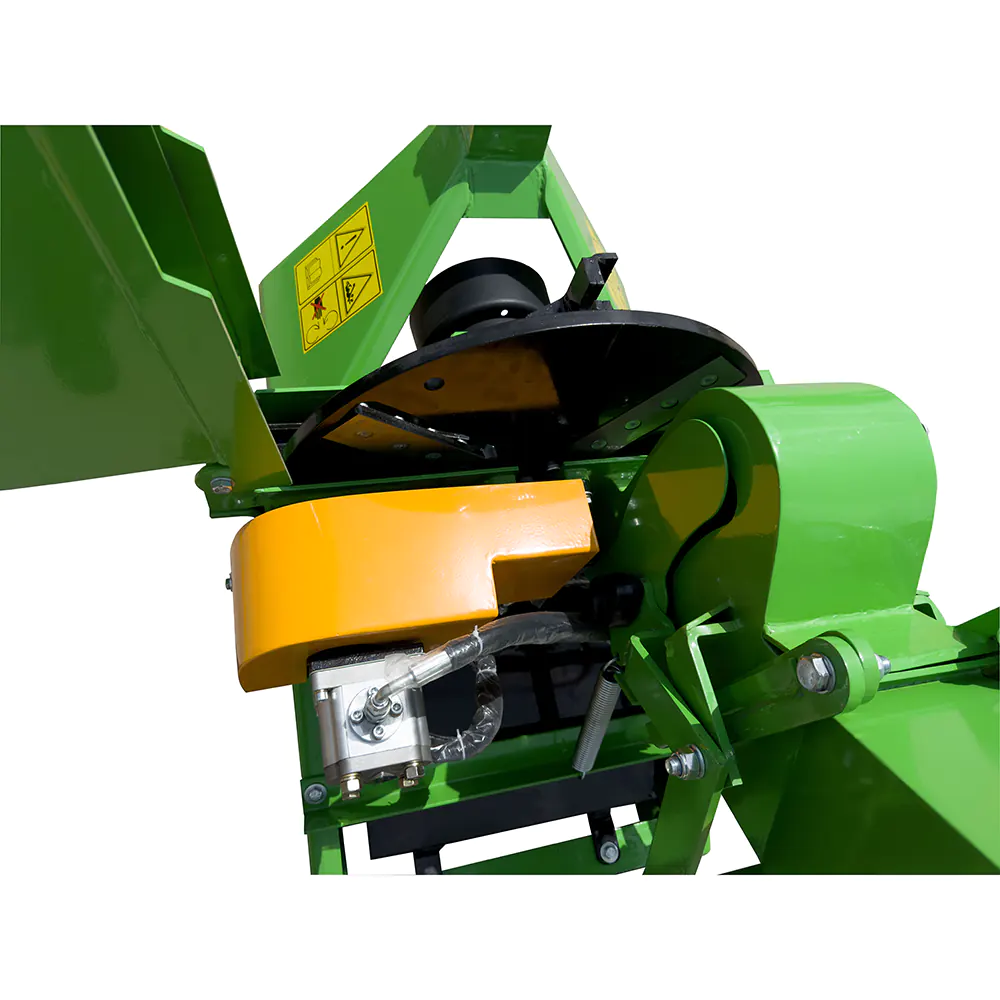

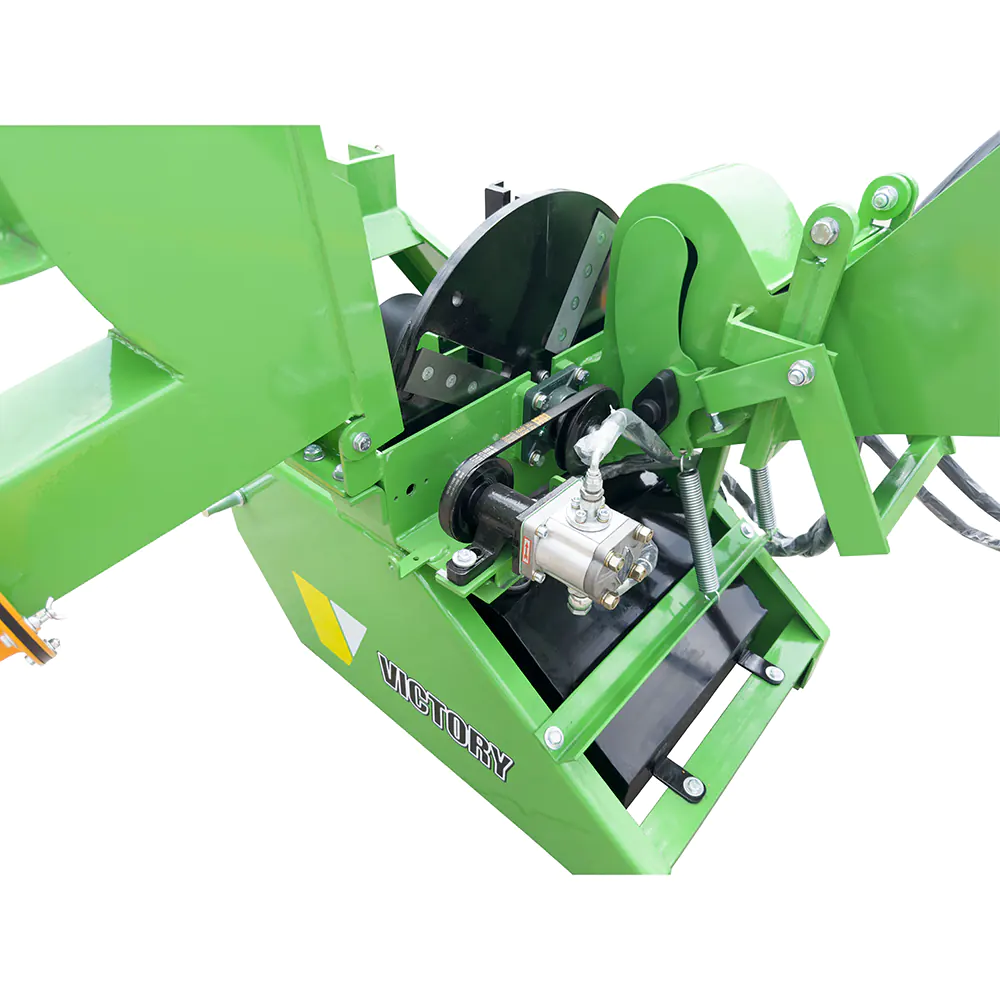

The high-quality hydraulic motor (with pump and tank) powers the infeed roller, avoiding wood jams by switching direction and speed.
Victory’s BX510H machine complies with all safety standards and is CE tested following the 2006/42/EC machine directives.
Check out our blog post Self Feeding or Hydraulic: Which Wood Chipper is Right for Me to decide if the BX510H is right for you
ATTENTION
The mostly assembled machine (minimal assembly required) does not contain any fluids or grease needed for operation! BEFORE USING THE MACHINE PLEASE CONSULT THE OWNER’S MANUAL.
We carry a full complement of spare parts. Take a look at our Spare Parts page.
Our satisfied customers say this is the best chipper available for sale online and we think you’ll agree!
Call Victory Tractor at (562) 534-8182 to place your order today!
Frequently Bought Together…
You May Also Like…
-
BX42S Self Feeding PTO Wood Chipper
Out of stock
$1,995.00 Read More -
BX510H Wood Chipper with Hydraulic Infeed System
In stock
$2,595.00 Read More -
MDWC1500 Motorized (Gas Powered) Wood Chipper
In stock
$2,145.00 Read More -
WC-10H 10″ PTO Wood Chipper with Self Contained Hydraulic System
Out of stock
$3,995.00 Read More -
WC-8H Hydraulic Wood Chipper with Self Contained Motor
In stock
$2,995.00 Read More -
MDWC-2500 Hydraulic Wood Chipper (Gas Powered)
In stock
$7,995.00 Read More
Proud supporters of the FFA
Jack link –
Works great
Jim –
Received the unit within 11 days of ordering.Very fast shipping and crated well. Live In Michigan. Went through and set everything up which included adjusting the knife gap to specs. Used the unit on my 1025r for about 2 hours so far works great. Ran up to 4 inch branches through it with no issues. The unit is heavier than expected about 750 lbs or more. The shipping weight is 880 lbs. The literature says it weighs about 620 lbs.Had to adjust the hydraulic pressure on the 1025r to around 2250 psi.so the 3 point can lift it easily.
Ed –
Good
1- Purchase was easy.
2- They shipped fast and the carrier was actually good.
3- Machine is well built, heavy duty.
4- Ship in metal crate
6- Price
5- Hydraulic feeder works good but only on straight lumber, you need chain saw small Y brunches to not stuck in it. Once you learn the limitations of the concept you will be out of trouble.
Bad
I took 2 star off because:
1- Manual is for the wrong machine, do not bother to print that stack of over 80 pages, half of it is about safety and the other half is for the WRONG MACHINE. You really will need assemble it by looking at the photo.
2- Some holes were not aligned for the screws
3- It uses a belt not a direct drive like show in the diagram
4- the place they put the oil intake on tank, is under the hydraulic pump, almost impossible to reach without taking the pump out, I had to snake in a garden hose to be able to fill it.
5- The hydraulic pump come disassembled and the gasket for it is installed at the pump base held by the 4 screws. Gasket was destroyed by the big cone intake that was loose inside the metal crate probably by all the trip vibration since China to here, they should have secured the big metal part inside the crate.
6- Contacted the seller about the gasket, sent many photos of it, told me that would ship, 2 weeks pass by and I still not even tried the machine, contact again and ask me for more photos, still never understood that what I need was the GASKET, he sent me the pump base from other machine. I appreciate that they tried to help but took too long and send the wrong part. I end up making my own gasket. Also, machine come in all scratched up, seller said would send a touch up bottle of paint, never did.
7- Parts may not be available for the machine in the future as they keep changing design, so you will be i your own to improvise if something break.
Keith Smith order# 15717 –
Online purchase was easy, shipping was fast and overall review – satisfied. Assembly took about 6 hours (between reading owners manual) and pondering. I purchased this model based on the illustration parts diagrams in the online manual. This shows a direct drive pump off the impeller shaft, not true, the unit I received is belt driven. A little upset at first, but the WC-510h/BX510H is a well built chipper and decided to keep it. Be aware the online owners manual for this model needs to be updated to the chipper being shipped to the customer (several directions, illustrations and procedures) are not correct and need to be revised. Great that all high stress bearings have grease fittings! I’ve run through a few branches to test it out and works great 👍. Very happy with the purchase and customer support, cannot give a 5 star review due to owners manual not being accurate on the website. Yes I will purchase from Victory Tractor Implements in the future.
Adam Jackson –
Works great on the back of my Branson 3515H. It makes short work of large or small branches Just be mindful if you are chipping up wet branches / or stuff that contains leaves or pine needles. The wet / sappy stuff will clog up the chipper quickly.
Erik –
Works Great – Heavy Duty !!!
Robert Cline –
I love this machine! Ordering was easy and it arrived on time. Assembly was easy enough and only took around an hour. My tractor is a 1962 Ford 661 Workmaster and doesn’t flinch during use. Very happy with this purchase and glad I found Victory Tractor Implements. Thanks!
Tony Davis –
I rec’d my chipper quickly and went about putting it together. The manual I had to print out was pretty much worthless. You could probably print 3-4 pages and that would be enough. Used the chipper for the first time and it worked great except that all the material was soaking wet and after about 5 minutes it plugged up badly. This was not the fault of the chipper because I didn’t think about all the wetness. So don’t chip if everything is wet. I love the hydraulic feed. Can’t imagine ordering one without. Some of the paint was chipped up or scrapped and I sent them an email concerning touch-up paint and they said they would send me some. Haven’t rec’d yet. My rating is 4.5 because the manual is worthless.
Robert Cote –
Received the chipper in about two weeks and assembled it in about half a day by the time I uncrated it, cut the drive shaft, added fluids and grease.
When I fired it up I was impressed with the speed and function of the feeder and the overall performance of the chipper using my L3800 Kubota. I’m a novice at this but my experience with this machine is that it loves the hardwoods. Works better with branchless timber but not as well with wet or pine type trees or ones with pitch, which is unfortunate when a good majority of my cuttings are small pine trees.
I would however highly recommend this unit and especially for the money.
Darrell –
It works much better than I expected. I’ve actually chipped some walnut branches that I would have normally just cut up for firewood just to see how well it could chip them. It took longer to assemble than it said in the instructions, and some of the instructions were not very well explained. Very good value for the cost.
Jeffrey Moore –
For the money you will not find a better chipper. I have a 46 HP tractor and it will eat 5″ pieces of wood all day long. just wood I run 10 and no plugs. With leaves and branches I found that I could run at 4 without plugging just once in awhile. It is a great addition of implements to my tractor and will be used every spring clean-up on my property from winter’s storms. Very impressed with the chipper as built because it is easy to work on and not bad to set up if your able to do basic mechanical work. Would recommend to anyone who is looking for a 3 point hitch chipper at the right price.
Thank-You Victory Tractor for a great addition to my tractor.
Gary Evans –
It works.
Silas Dobson –
I’ve been needing to clean up thick overgrown acreage for fire safety up here in NE Washington. I purchased this chipper knowing that the hydraulic feed would speed things up. It took a little longer to set up, but getting everything just right is important. The unit is on my Kubota L2800 p.t.o. 24 hp and it eats the wood with no problems. Clearing very thick overgrown acreage as fast as I can get it to the chipper (make piles close by it). The unit look’s just like some other’s out there but it’s cheaper and green. I’m very pleased with it.
Greg Morgan –
I went and picked mine up at the shipping terminal last week and put it to work over the weekend. Stout machine that flat out eats trees. I normally don’t post reviews, but the quality and functionality at this price point are incredible. Highly recommend this machine if you want to get a lot of slash chipped up in a hurry.
Rick –
I’ve been debating a wood chipper for awhile. I first borrowed a gas powered stand-alone unit from a friend to see if I’d use it enough, turns out I did. I have a small diesel tractor so I decided to get a PTO-run unit (less maintenance/etc). The cost difference here between the non-hydraulic fed unit and the one with tipped me over the edge to get the unit with hydraulic feed. I’m glad I did! I can get so much done quickly!
My tractor setup: I have a Kubota B2401 (24hp) compact tractor with 17-18hp at the PTO (depends on which manual/website you check). It has no trouble running this unit and I was feeding up to 3.5″ material (mix of hardwood/pine). Anything bigger than that is firewood if you ask me. I burn inside during the winter and have regular campfires outside, so it’ll get used up. My tractor carries the unit fine and I ran it for 3 hours straight the other day and had zero problems.Sizing the PTO shaft was fairly straightforward and easy to do.
The Good: The unit is very well built I think for the price point. A couple of bolt holes don’t line up perfectly, but all the hardware was present, nothing was damaged, and it feels heavy duty. Especially the flywheel, housing, and main shaft. Shipping was great, delivery (w/lift gate) was excellent, and the unit was packed well. Setup took awhile for me, there was a fair amount of assembly required (very different from provided manual on website, more on that later). I had to attach the in-feed hopper, the hydraulic control onto that hopper, the control bar for hydraulic feed, and the discharge chute. The discharge chute I had to disassemble and attach to the main unit due to design. It took every drop of 5 gallons of recommended oil and I as no where near 1″ from top of tank that I could tell. I spent a lot of time and set up the gap on the anvil blade (fixed blade inside) to the blades on the wheel. I’m glad I did, after 3 hours straight I had zero clogs, and good sized chips. I ran at speed setting 3.5-4 and that worked great. I started slow and gradually increased until I was comfortable with the rate of chipping and size of chips. I’m very happy and impressed with how this unit performed.
The Bad: The manual. It says 30 minute setup and the pictures show a nearly completely built machine. Very wrong. My machine took approx 2 hours of assembly (in bits and pieces when I had time) and most of it I had to figure out myself, which is fine. I’m not a mechanical engineer but I can usually figure stuff out. The illustrations in the manual are clearly of a different machine and it even references things that my unit does not have. This is really the only negative point in my entire purchase/own experience.
If I could give 4.5 stars I would. Customer service was excellent when I called in and had questions/etc.
Bottom line, my dad has a very fancy green hydraulic fed chipper from those nice folks in Canada, but I’m glad I saved the money and ordered this one. Highly recommended.
R.C. Freeman (verified owner) –
I found this chipper while searching the internet so I called to ask some questions about this chipper before placing an order. The fellow that I talked to was very helpful and gave me the information I needed. I then decided to go ahead and place an order for the BX510 woodchipper.
My chipper was shipped out promptly and arrived in about 6 days. I elected to pick up the machine at the UPS freight depot as it is not too far from my place.
The chipper was shipped in a steel crate made of angle iron. It had shifted slightly in the crate but upon inspection it was undamaged and appeared to be ok.
I unpacked it at home and assembled the few parts that needed attaching. There were no assembly instructions in the package but putting this thing together was just a matter of looking at the pictures on their website. All the bolts, nuts etc. we’re all ready in the holes where they belonged and nothing was missing. After checking and tightening all the bolts and hose fittings I then cut the pto driveshaft to the correct length for my tractor. Almost 5 gal. of hydraulic oil is required to operate the feed roller.
The construction of this machine is much better than I was expecting. It is heavy duty and performs better than I expected also. My L2800 Kubota (28hp)has no problem powering this chipper even when chipping branches up to 5″. Just be sure to set the infeed speed to an appropriate rate for the size wood you are working with.
I am very pleased with the chipper and the service of the company that sold it. The price with shipping included is hard to beat and I would recommend buying one from Victory to anyone looking for a good chipper at a great price
Ryan Thomas (verified owner) –
Ok so I’ve put a few hours on the machine. Assembly took about 4 hours. The machine works great, better than expected to be honest. The only draw back I have found is it’s not quick hitch compatible and you need a long top link to attach it properly. Not a huge deal but it is a bit of an inconvenience. Other than that it seems to be the same quality and HD construction of the bigger name chippers at a much lower price point. Very happy with my purchase.
Ryan Thomas (verified owner) –
Ok so I just ordered one and will have more to follow but for now here is my experience. I contacted Victory with lots of questions, I was about to buy another machine from another company. Even though it was a weekend they answered all my questions quickly. The machine looks exactly like the larger name brand unit I was going to buy, it even had the same specifications. Victory was so helpful during my decision process I decided to go with them vs the big name brand. I also saved a bunch of money.
The unit shipped quickly and arrived yesterday in a steel framed enclosure. This machine looks great and is a very heavy unit. I will post more info next week as I get time to assemble and run the unit.
