MDWC-1500 Motorized Disc Wood Chipper
MDWC-1500 Motorized Disc Wood Chipper

MDWC1500 Motorized Disc Wood Chipper

$1,995.00

Clear
SKU: VTI-MDWC1500 Category:

Description

MDWC1500 Motorized Disc Wood Chipper

Powerful 13.5 HP Briggs & Stratton Gasoline Engine, 4-Stroke Air-cooled, 420cc,

Electric Start, Battery included (LiFeP04),

Chipping up to 4.5″ in diameter, Rotor (Disc) Chipping System,

Emergency Stop Lever, Oil Sensor, Trailer Hitch 50mm Ball (2″), 16″ Wheel tires 4.8-8,

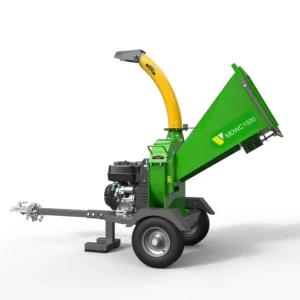

Victory’s MDWC-1500 is a self-feeding gasoline engine powered wood chipper that uses a large disc rotor to shred wood. Compared to most other motorized chippers which use a drum style processor, this machine is more efficient and more productive. The machine can handle material up to 4 1/2″ in diameter. The MDWC1500 is equipped with a professional-grade Briggs & Stratton gasoline engine with 13.5 HP and 21.00 ft./lbs. of torque. The MDWC comes standard with an electric starter. The material is fed by the infeed chute into the 22″ diameter rotor (7/8″ thick). This powerful system is pulling the branches in at up to 50′ per/min. The chipper is perfectly balanced and can be easily moved to your worksite either by hand or by connecting it to an ATV or utility vehicle for transport as well.

Victory’s newest Motorized Wood Chipper for sale – No Tractor needed!

Performance:

The Briggs & Stratton gasoline engine has 420CC and 13.5 HP  (21 ft./lb. torque). The drive system uses a centrifugal clutch and a direct belt. The engine’s 3,600 RPM powers the rotor-disc at 2,000 RPM.

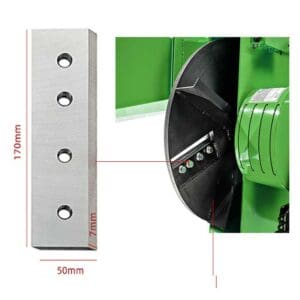

The chipping mechanism is designed with a Rotor-Disc of 22” in diameter and 7/8″ in width and 2 large knives. These knives pull the wood powerfully into the shredder and cut the material reliably against the counter knife. Depending on the type of material you process, how hard, or wet it handles up to 4 1/2” in diameter easily.

The disc-driven cutting system is significantly more powerful and reliable when compared to the drum system of most other motorized wood chippers. Also, it doesn’t clog up as often and it provides for easy access to the knives (just open up the rotor housing). The service-friendly design of our MDWC provides for easy maintenance, please follow the manual.

Need more information to decide if the MDWC-1500 is the right wood chipper for you?  Check out our blog post Self Feed or Hydraulic: Which Wood Chipper is Right for Me?

ATTENTION

Partially assembled machines do not contain any fuel, oil, or other fluids or grease needed for operation! BEFORE USING THE MACHINE please carefully read the English user manual.

Not the right for the job?  Victory Tractor offers a variety of quality wood chippers to choose from:

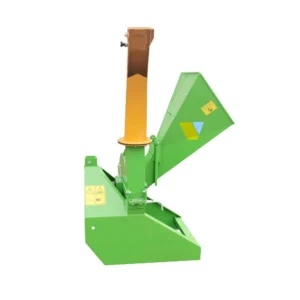

BX42S PTO Wood Chipper

BXH-510 Wood Chipper with Hydraulic Motor & Controls

WC-8H Hydraulic Wood Chipper

Victory Tractor Implements

Proud supporters of the FFA

Technical Specifications: MDWC-1500

Dimensions (LxWxH) 100” x 40” x 72”

Weight 535 lb. (242 kg) net

Disc (rotor) size  22″ diameter, 3/4″ thick

Chips Wood up to 4 1/2″ in diameter

Wheel Tires 16” DOT 4.8-8

Number of Knives 2 + 1

Knife rotor speed 2,000RPM, max

The inside opening of the infeed chute 8″ x  6”

Infeed Chute size 18” x 20”

Discharge Height  71 1/4 “

Housing Material thickness 4mm (.16”)

Painting Powder coated, green/yell.

Engine 4 stroke, 420cc, 13.5HP (regular gasoline)

Engine Oil (not included) 1 quart (10W30 / 10W40)

Gas Tank cap. 1.65 US Gal. max

Fuel consumption   0.85 US Gal./Hr. (max.load)

Max. RPM 3,600RPM (engine)

Drive System: Centrifugal Clutch to drive Belt drive

Oil Senser on engine
