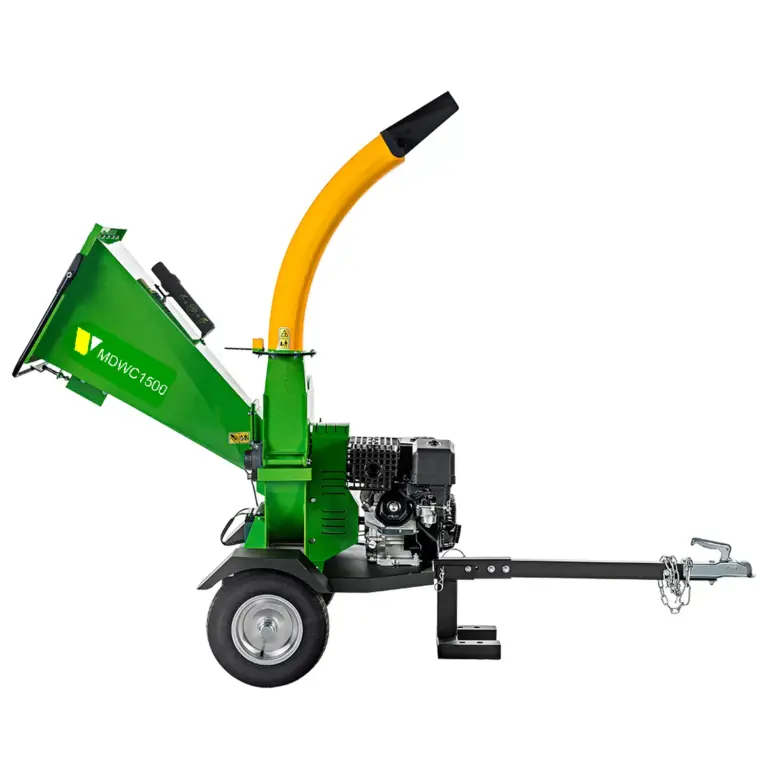

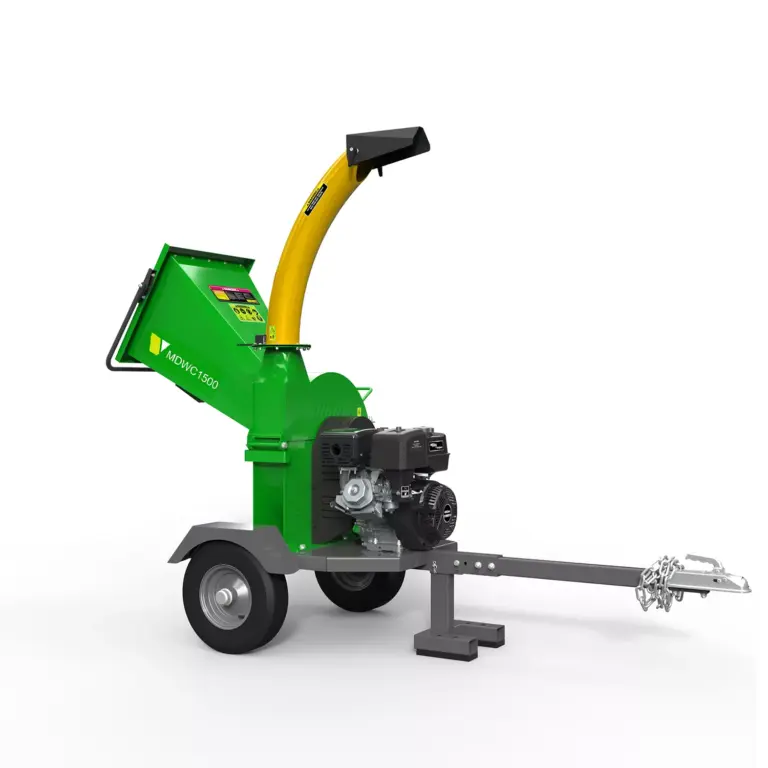

MDWC1500 Motorized (Gas Powered) Disc Wood Chipper
Victory’s newest Gas Powered Wood Chipper replacing the old drum chippers, shreds up to 4 1/2″ in diameter!

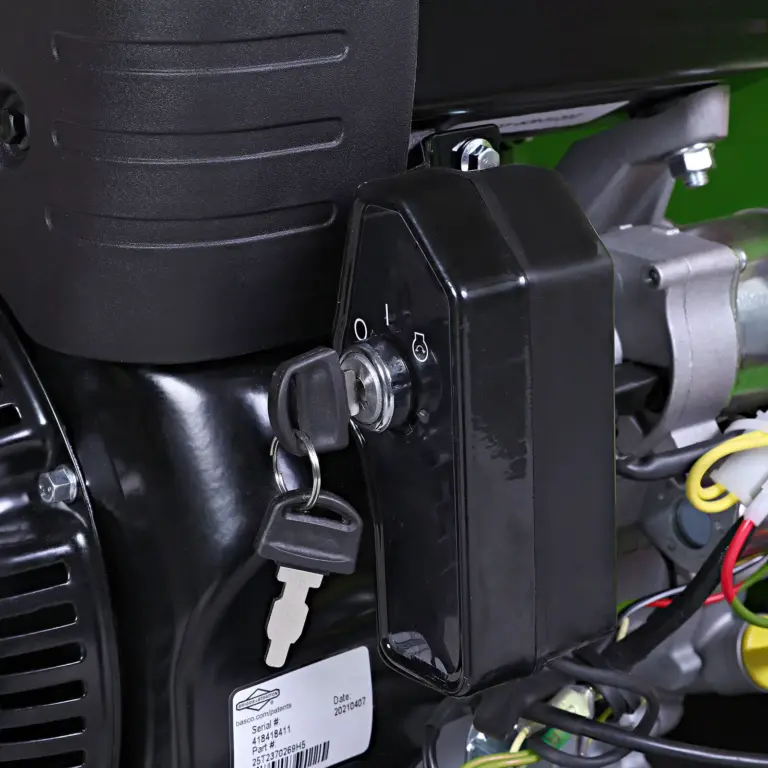

Electric Start (Battery Included), Emergency Stop Lever for Safety!
Powerful 13.5 HP B&S Gasoline Engine, 4-Stroke, Air-Cooled

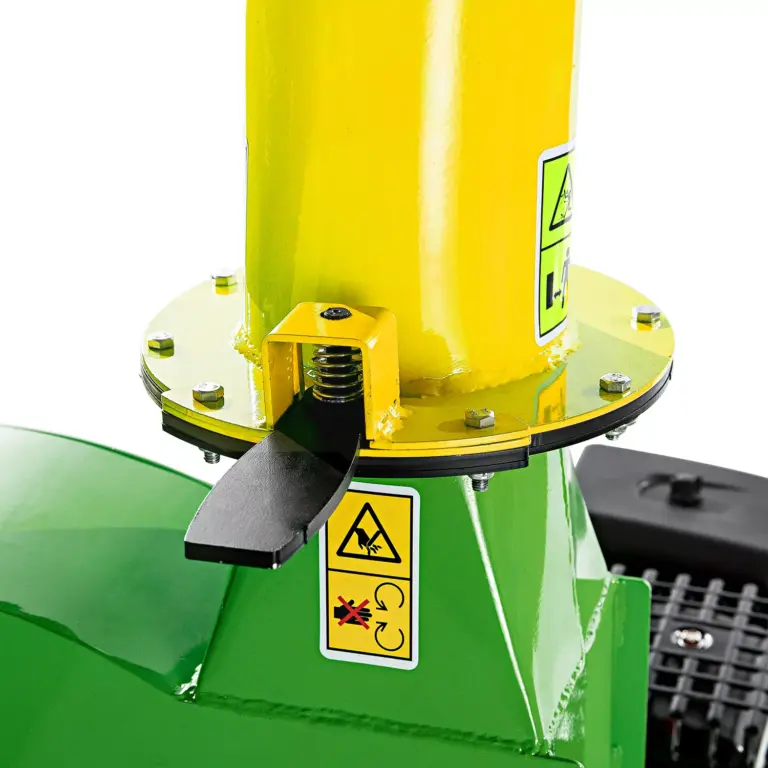

360 degrees rotatable Discharge Chute, 2″ Ball Trailer Hitch & Arm.

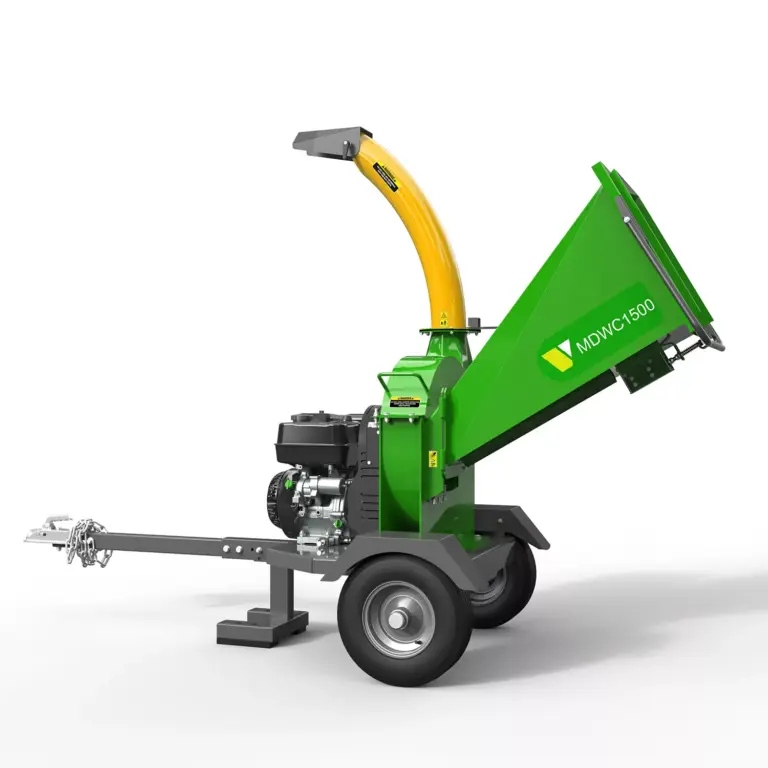

Victory’s MDWC-1500 is a self-feeding gasoline engine powered wood chipper that uses a large disc rotor to shred wood. Compared to most other motorized chippers which use a drum style processor, this machine is more efficient and more productive. The machine can handle material up to 4 1/2″ in diameter.
The MDWC1500 is equipped with a professional-grade Briggs & Stratton gasoline engine with 13.5 HP and 21.00 ft./lbs. of torque. The MDWC comes standard with an electric starter. The material is fed by the Infeed chute into the 22″ diameter rotor. This powerful system is pulling the branches in at up to 50′ per/min.
The chipper is perfectly balanced and can easily be moved to your worksite either by hand or by connecting it to an ATV or utility vehicle for transport.
• 4 1/2” chipping capacity
• Rotor-Disc: 22″ x 3/4″

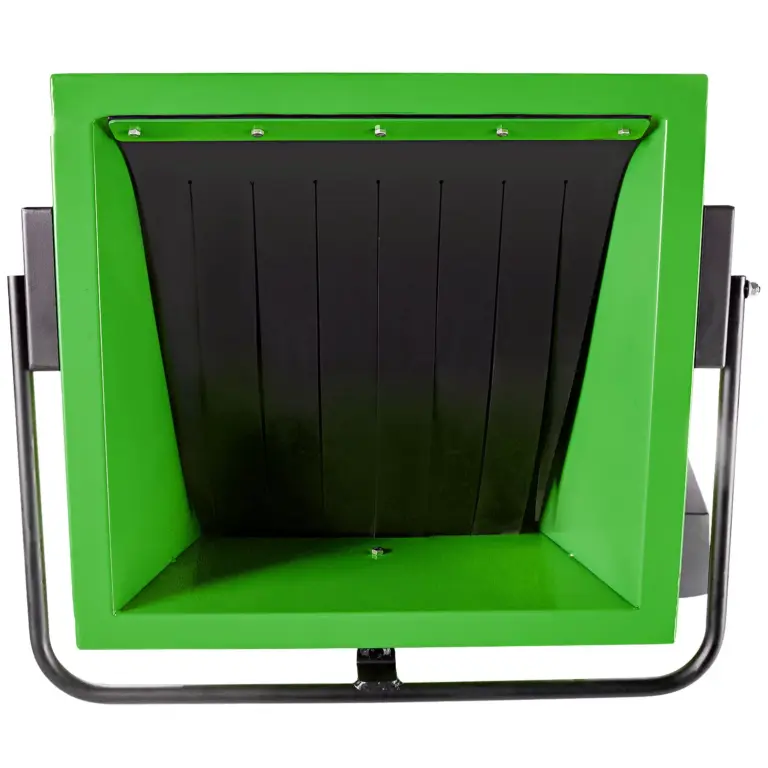

• Infeed Chute opening: 18″ x 20″
• Infeed Height: 59″, Discharge Height: 72″
• Infeed Opening (to rotor): 6: x 8 ”
• Centrifugal Clutch to Direct Belt
• 13.5 HP Briggs & Stratton Gasoline Engine (with oil sensor)
• Machine (net) Weight: 535 lb.
• Dimensions: L 100: x W 40″ x H 72″

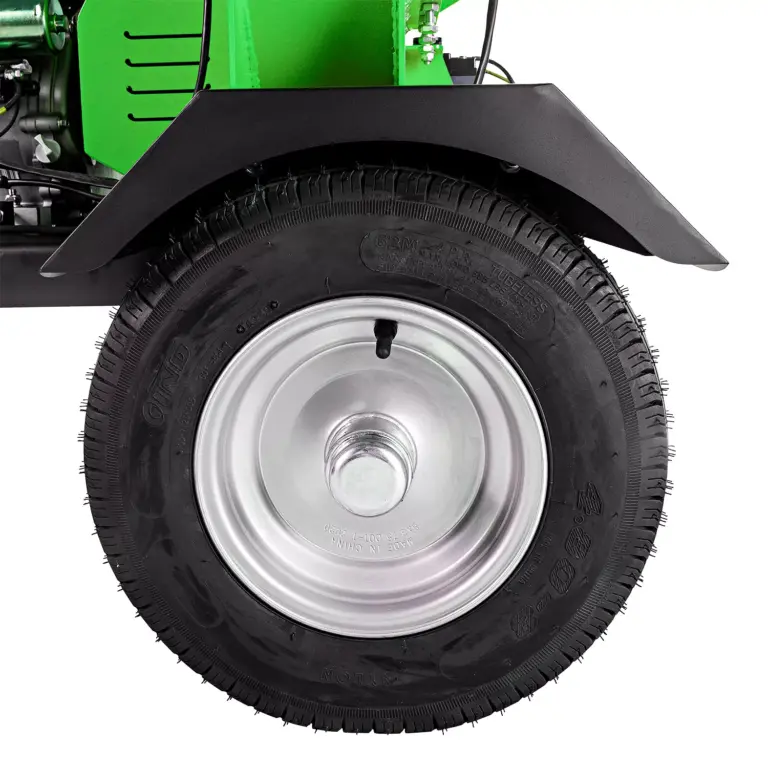

• LiFePO4 Battery, 4.8-8 16″ DOT Tire Size

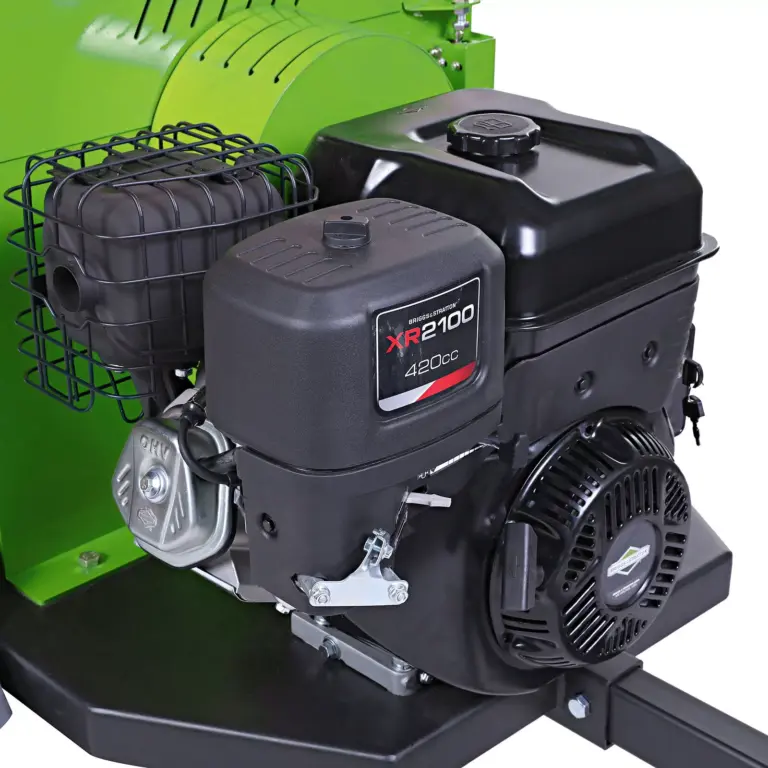

The Briggs & Stratton gasoline engine has 420CC and 13.5 HP (21 ft./lb. torque). The drive system uses a centrifugal clutch and a direct belt. The engine’s 3,600 RPM powers the rotor-disc at 2,000 RPM.

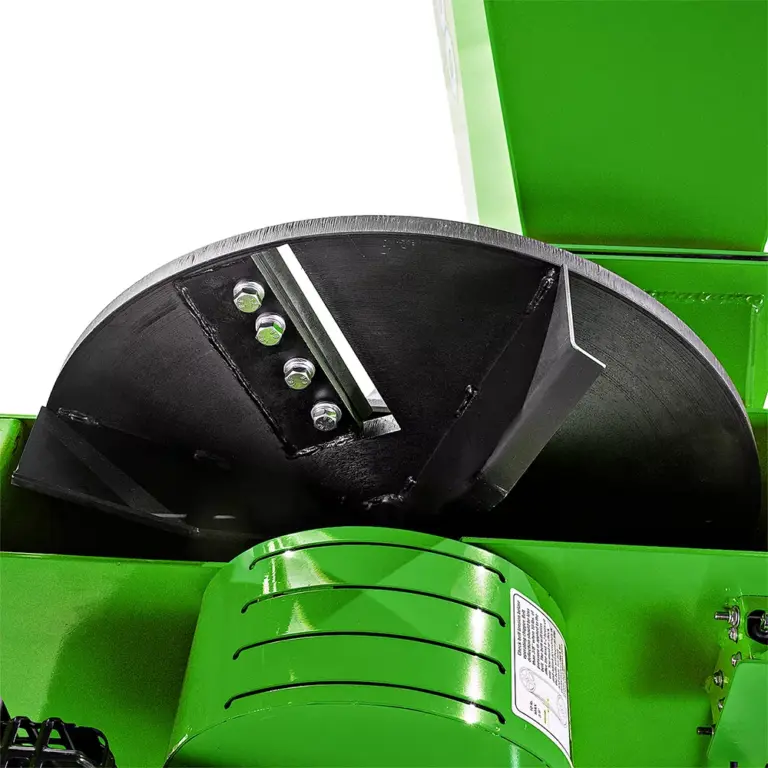

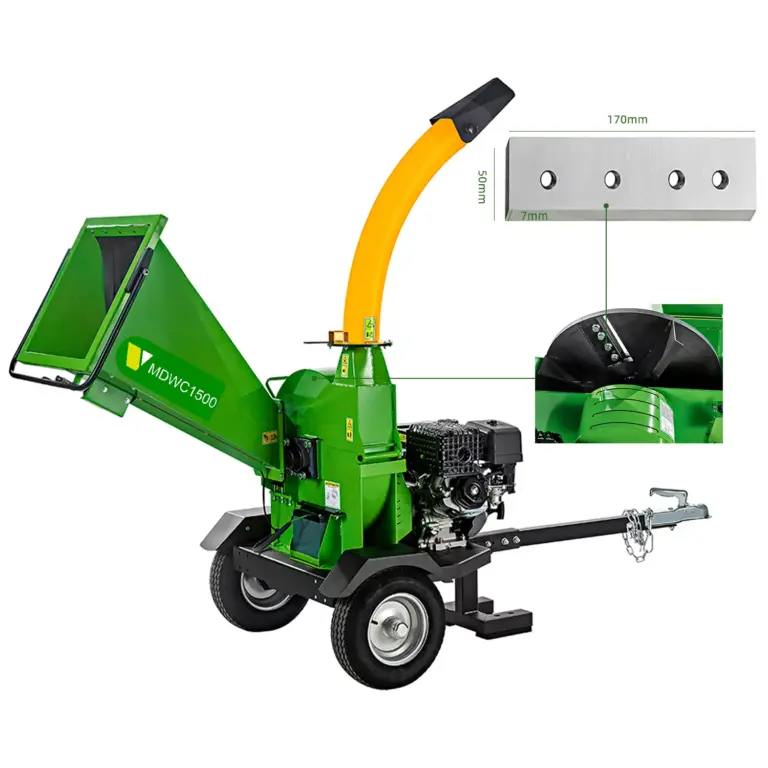

The chipping mechanism is designed with a Rotor-Disc of 22” in diameter and 3/4″ in thickness and 2 large knives. These knives pull the wood powerfully into the shredder and cut the material reliably against the counter knife. Depending on the type of material you process, how hard, wet, or not, it handles up to 4 1/2” in diameter easily.
The disc-driven cutting system is significantly more powerful and reliable when compared to the drum system of most other motorized wood chippers. Also, it doesn’t clog up as often and it provides for easy access to the knives (just open up the rotor housing). The service-friendly design of our MDWC provides for easy maintenance, please follow the manual (enclosed with the machine).
Owner Review & Demonstration: Victory MDWC1500 4.5-inch 13.5 HP Gas Powered Wood Chipper/Shredder
MDWC-1500 Gas Powered Wood Chipper Product Specifications
|Infeed Opening||5” x 5”|
|Max. Throughput Capacity||5 in.|
|Variable Infeed Speed||0-65 ft./min.|
|Flywheel Speed||2400 RPM|
|Rotor (Flywheel) Diameter||22 in.|
|Rotor (Flywheel) Weight||120 lb.|
|Machine (gross) Weight||408 lb.|
|Number of Knives||2 + 1|
|Infeed Chute Opening||20” x 26”|
|Hydraulic Pump & Tank||n/a|
|Hydraulic Infeed System||n/a|
|Safety Stop Bar||n/a|
|Variable Speed Control||n/a|
|Discharge Chute Rotation||270 Degrees|
|Flywheel Housing Material||6 mm|
|PTO Shaft Included||n/a|
|Shipping Weight||585 lb.|
To learn more about wood chippers check out:
Partially assembled machines do not contain any fuel, oil or other fluids or grease needed for operation! BEFORE USING THE MACHINE please carefully read the English user manual.
Call Victory Tractor at (562) 534-8182 to place your order today!
