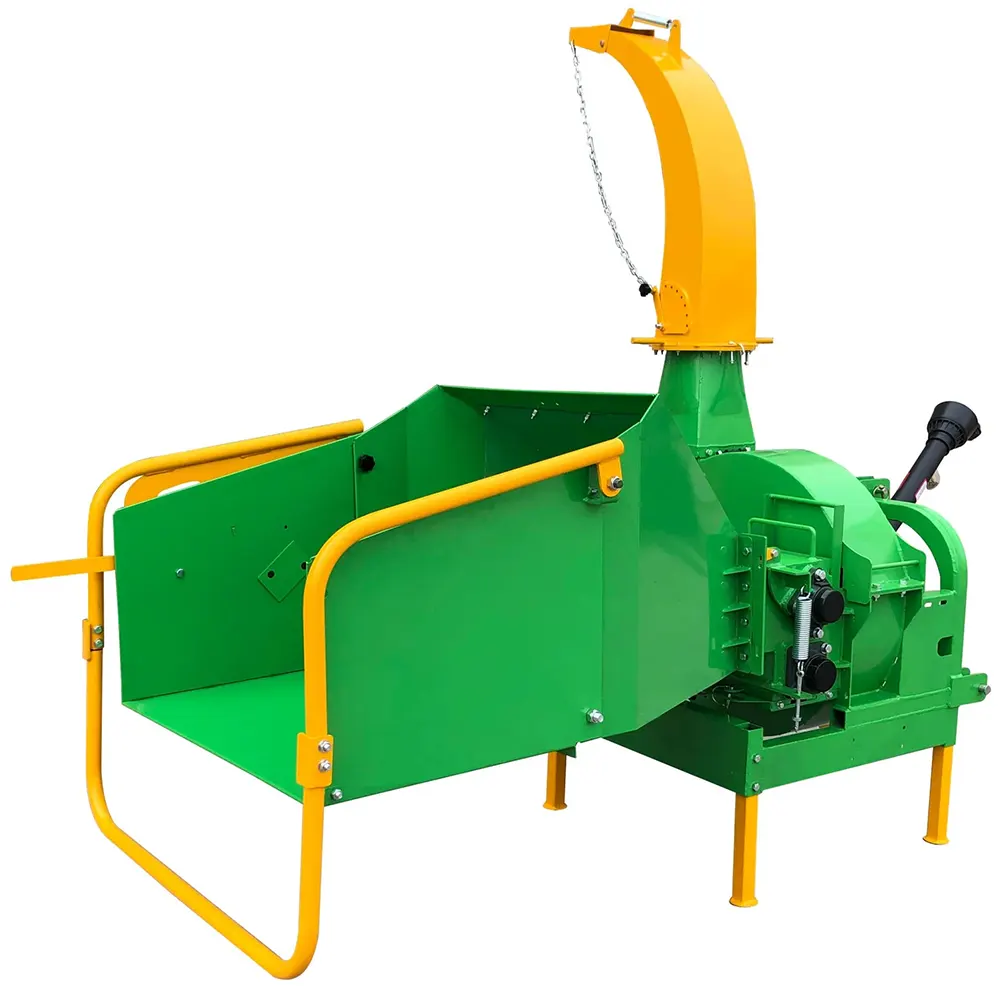

IMG_1497_1000x1000

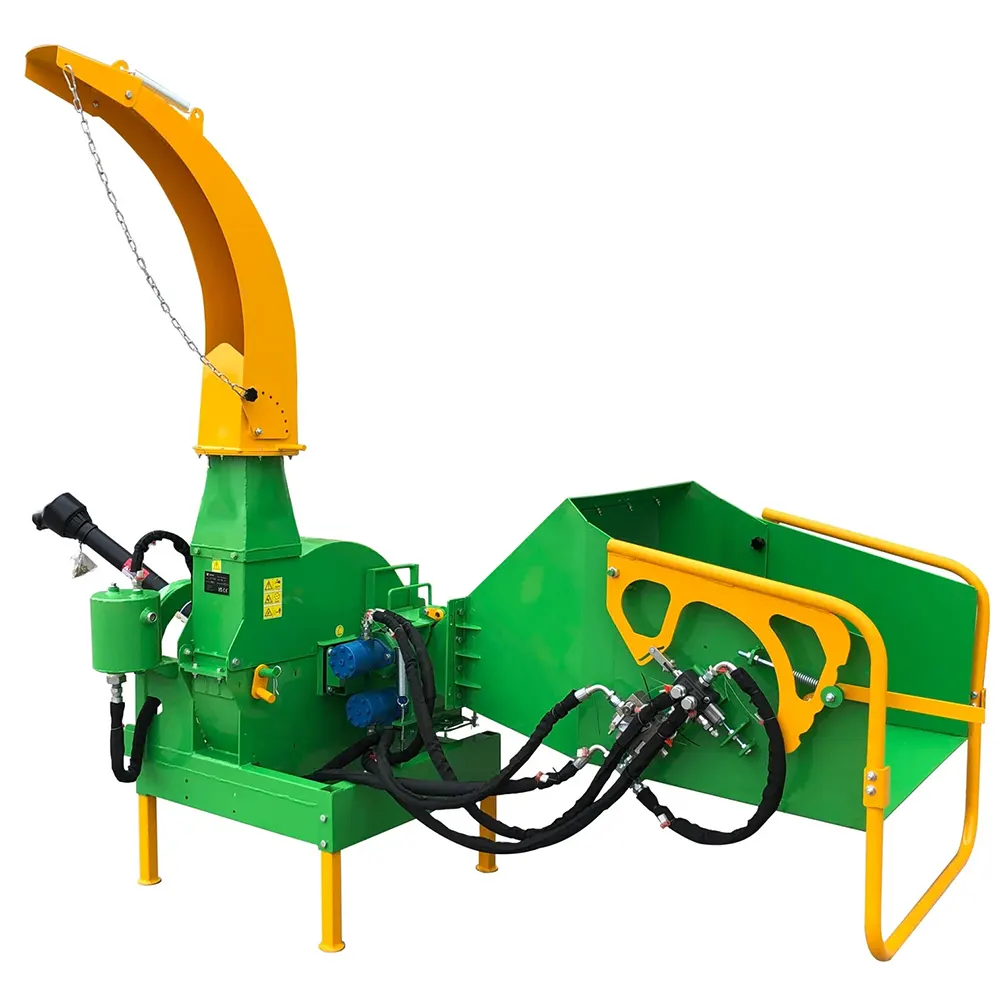

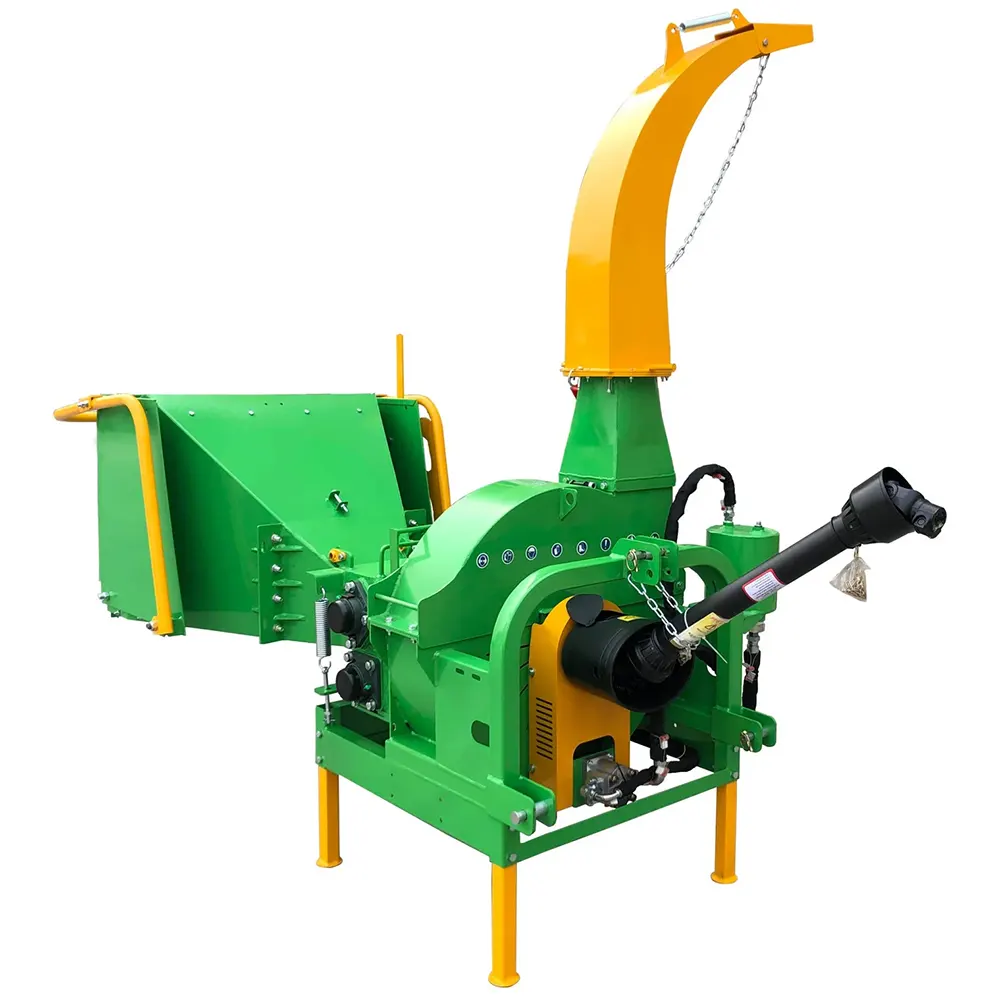

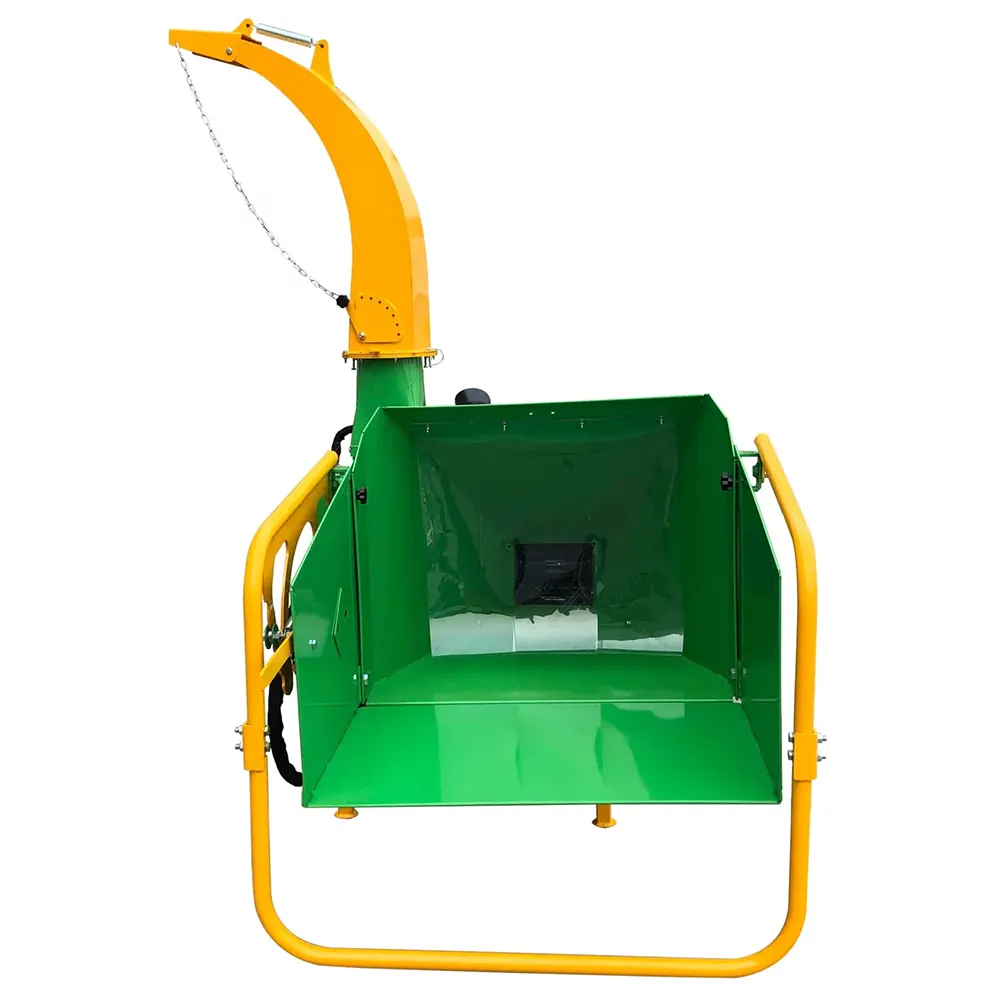

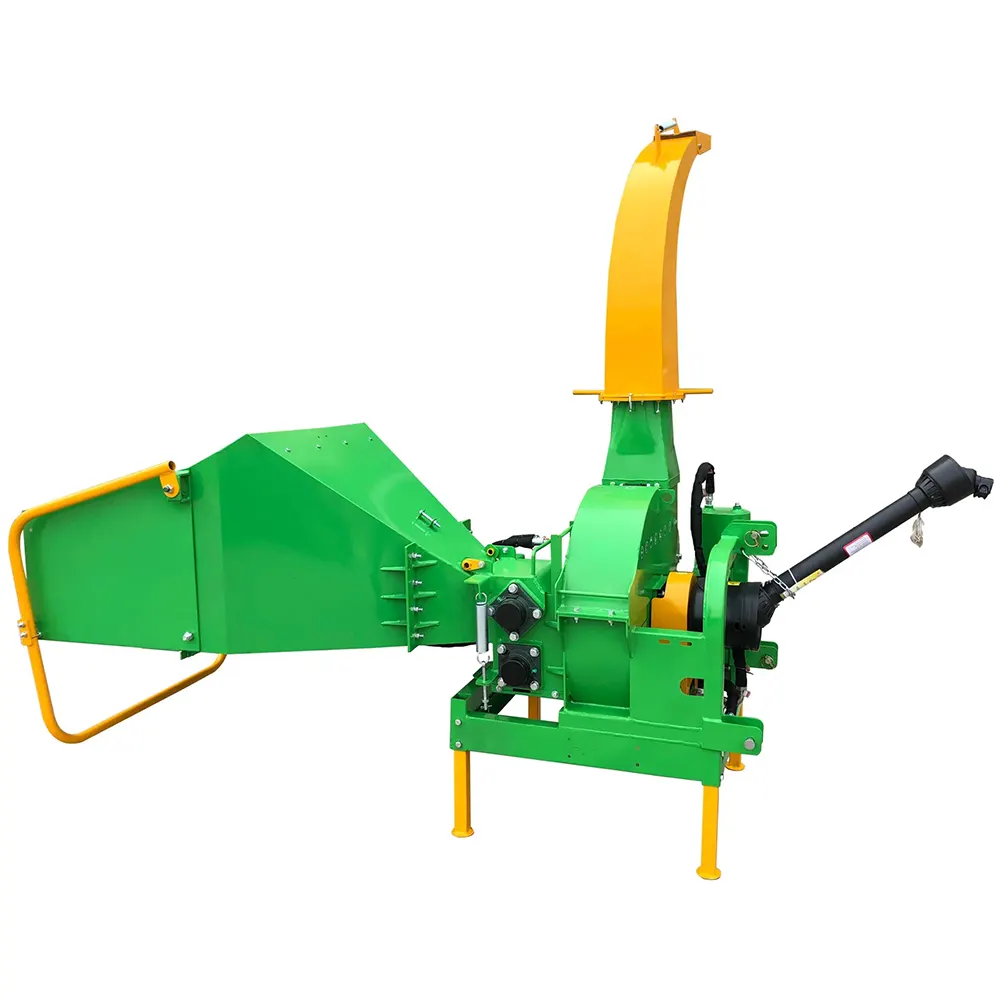

BX72RSH High Capacity Hydraulic PTO Wood Chipper

Optimize professional wood chipping with the BX72RSH PTO Wood Chipper, engineered for 40–100 HP tractors and complete with a PTO shaft featuring a friction clutch. It effortlessly shreds branches up to 7 inches in diameter via a direct PTO drive powering a 220 lb rotor equipped with four hardened reversible knives.

Features a built‑in hydraulic feeding system delivering up to 3,626 psi for smooth self‑feeding, a 7.5 ft rotating discharge hopper that throws chips up to 40 ft, and boasts a capacity of 45 cu ft/hr. Fully CE‑certified and designed for quick maintenance access, the BX72RSH combines rugged performance with user‑friendly serviceability.

Store Rating
Satisfied Customers
Warranty
2 Year Warranty
Free Shipping
Free Shipping
FREE Shipping
2 Year Warranty
Satisfied Customers
30-Day Returns

The Nova Tractor BX72RSH is a heavy‑duty professional wood chipper that mounts to CAT I/II three‑point hitches on 40–100 HP tractors. It ships free to the lower 48 states (Alaska, Hawaii & Canada surcharge applies) and includes a PTO shaft with friction clutch at no extra charge. With its direct‑drive design, the BX72RSH processes limbs up to 7″ in diameter at rates up to 45 cubic feet per hour, making it ideal for fast, efficient clearing on medium and large tractors.

At its heart is a tractor‑independent hydraulic system: a built‑in pump and 3.2 gal tank generate up to 3,626 psi at 3.2 gal/min to power two opposed ball‑bearing feeding rollers. A large safety bracket with “IN‑OUT‑STOP” controls and instant reverse clears jams in seconds—no tractor hydraulics required.

The BX72RSH’s super heavy‑duty 220 lb rotor (30″ diameter × ¾″ thick) carries four 9.5″ A8‑hardened reversible knives and internal branch breakers. Special winglets on the rotor create airflow to eject uniform ½–2″ wood chips through a 7.5 ft‑high hopper that rotates 230° and throws chips up to 40 ft into trailers, containers, or bags.

Designed for uptime, the BX72RSH features a spring‑loaded service door under the input roller and a quick‑release two‑bolt lift on the upper roller assembly for fast access to blades, bearings, and hydraulics. It is fully CE‑tested per the 2006/42/EC machine directive for safety and compliance.

PDF Icon

Product Manual (PDF)
BX72RSH Product Manual.pdf

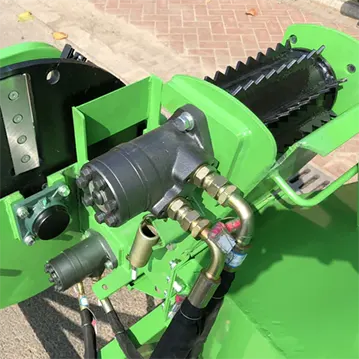

Hydraulic Feeding System

Hydraulic Feeding System
Built‑in pump and 3.2 gal tank drive two opposed rollers, no tractor hydraulics required, with forward/reverse via safety bar for jam clearing.

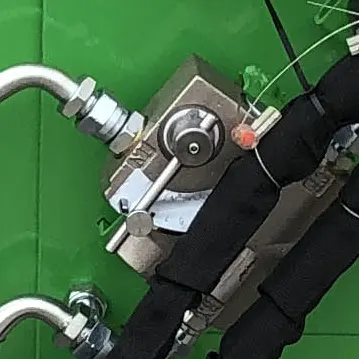

Stepless Speed Adjustment

Stepless Speed Adjustment
Fine‑tune roller speed on the fly to match wood diameter and hardness, with a secondary valve for tractors over 2,900 psi.

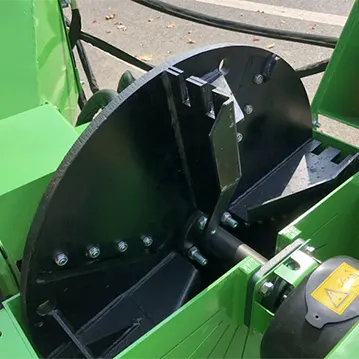

Super Heavy Duty Rotor

Super Heavy Duty Rotor
220 lb rotor with four 9.5″ hardened knives and branch breakers, generating airflow for smooth chipping and reversible blades for extended life.

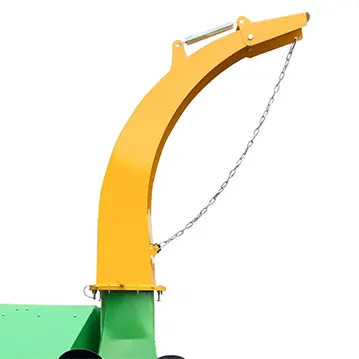

High‑Reach Discharge Hopper

High‑Reach Discharge Hopper
7.5 ft high and 230° rotation discharges chips up to 40 ft to fill trailers or bags with ease.

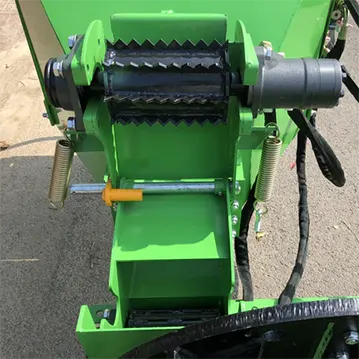

Easy Maintenance

Easy Maintenance
Quick‑release service door and two‑bolt roller lift provide rapid access for cleaning and servicing blades, bearings, and hydraulics.

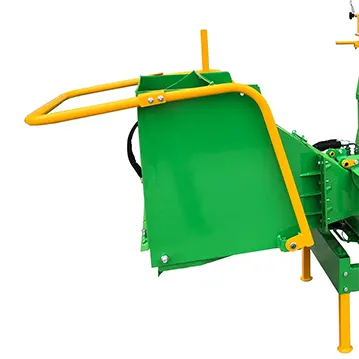

Foldable Wide Input Chute

Foldable Wide Input Chute
35″ wide chute folds for transport/storage with one person and no tools, ensuring safe handling and setup.

Two-Year Warranty

The BX72RSH 7″ PTO Wood Chipper (SKU: VTI-BX72RSH) has been rigorously tested to withstand tough conditions and includes a two-year warranty on the machine.
Learn More

PDF Icon

Parts Guide (PDF)
BX72RSH Parts Guide.pdf

Technical Data
BX72RSH
Dimensions (Working L×W×H)
95 × 48 × 90 in
Dimensions (Transport L×W×H)
87 × 51 × 91 in
Total Weight
1,100 lb
3‑Point Hitch
CAT I (CAT II bushing included)
PTO Shaft RPM
540–1,000
Optimal PTO RPM
1,000
PTO Shaft Length
39 in
PTO Safety
Friction clutch
Drive System
Direct drive
Tractor Power (Recommended)
40–120 HP
Power for Max Performance
50–80 HP
Rotor Diameter
30 in
Rotor Width
¾ in
Rotor Weight
220 lb
Number of Knives
4 + 1
Rotor Knife Size
9.5 × 2.4 × 0.35 in
Counter Knife Size
8.5 × 2 × 0.35 in
Counter Knife Adjustment
0.3 in
Hopper Opening
35 × 28 in
Housing Opening (W×H)
7 × 8 in
Max Material Diameter
< 7 in
Chip Size
0.5–2 in
Feeding System
Hydraulic forward/backward
Discharge Height
7.5 ft
Hopper Angle
0–230°
Housing Thickness
¼ in
Finish
Powder coated
Transport Crate (L×W×H)
90 × 51 × 50 in
Shipping Weight
1300 lbs
