EMHD-86 Heavy Duty Embankment Flail Mower

Maximize mowing efficiency with the EMHD-86, suitable for 75-110 HP (PTO) tractors. Features an 86″ mowing width and innovative Crash Protection for safe, versatile terrain management.

Equipped with 30 high-performance flail hammers for effective vegetation control and a reach of 140 inches, ensuring thorough coverage and exceptional durability.


Store Rating
Satisfied Customers
Warranty
2 Year Warranty
Free Shipping
Free Shipping

Victory 2023 Flail Mower Buyer’s Guide

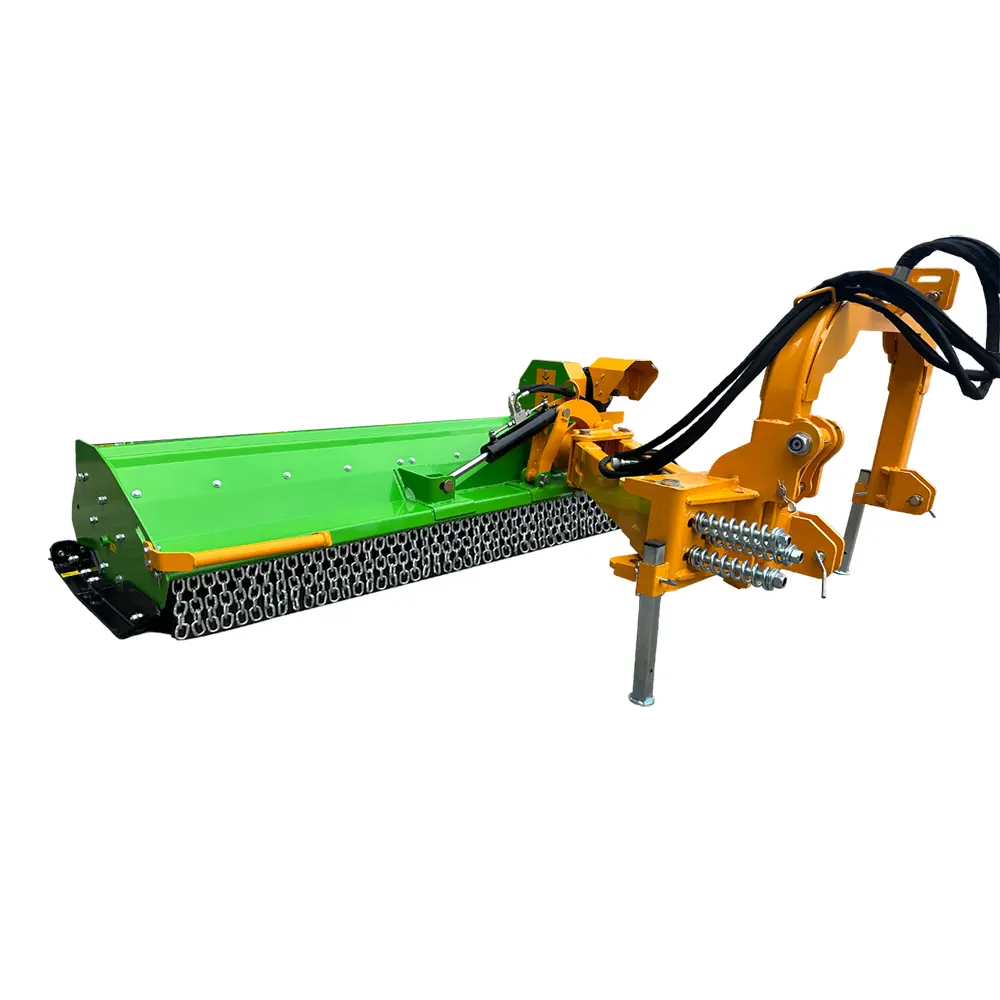

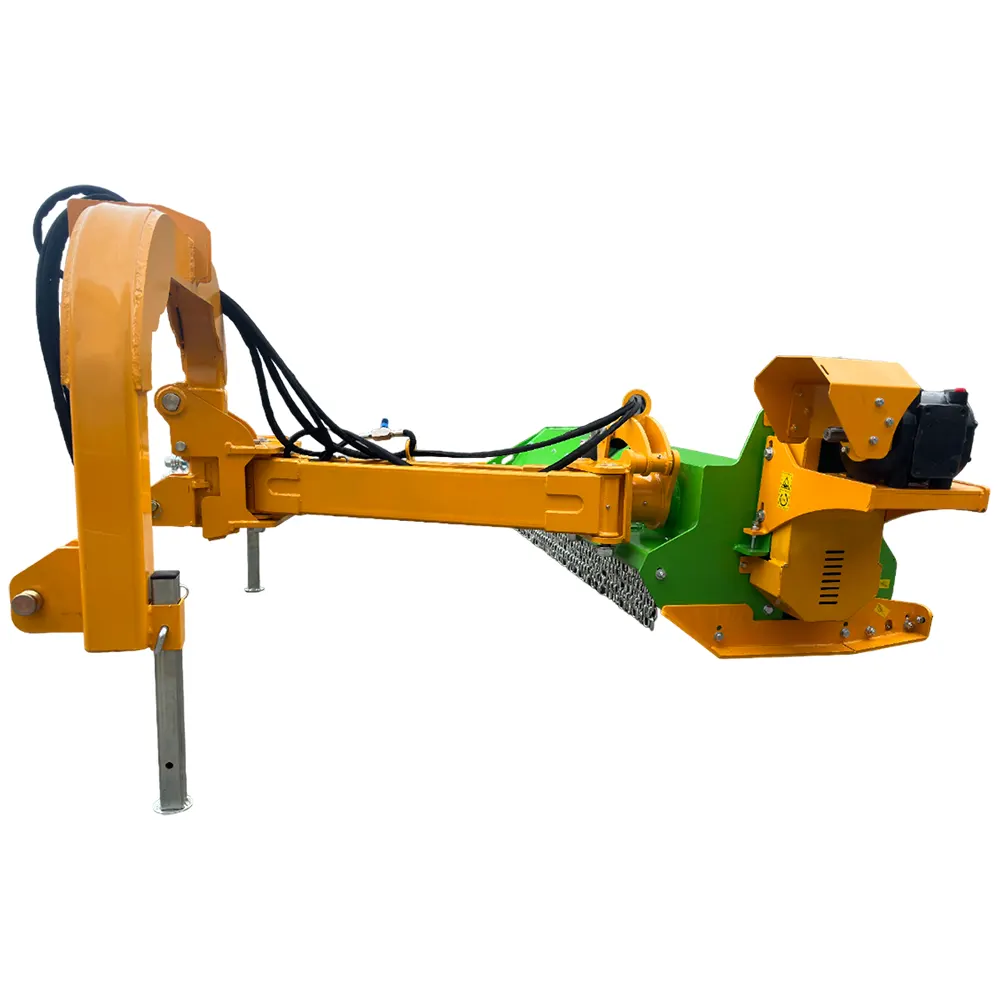

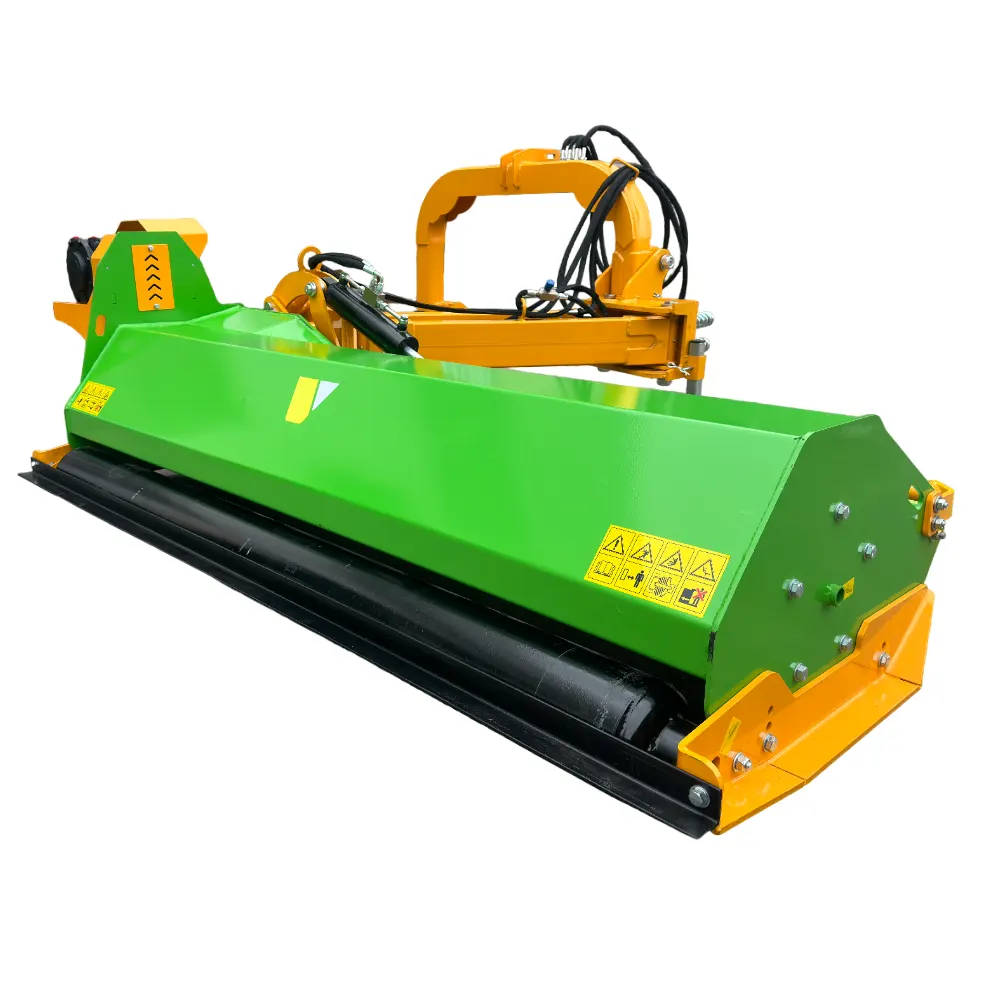

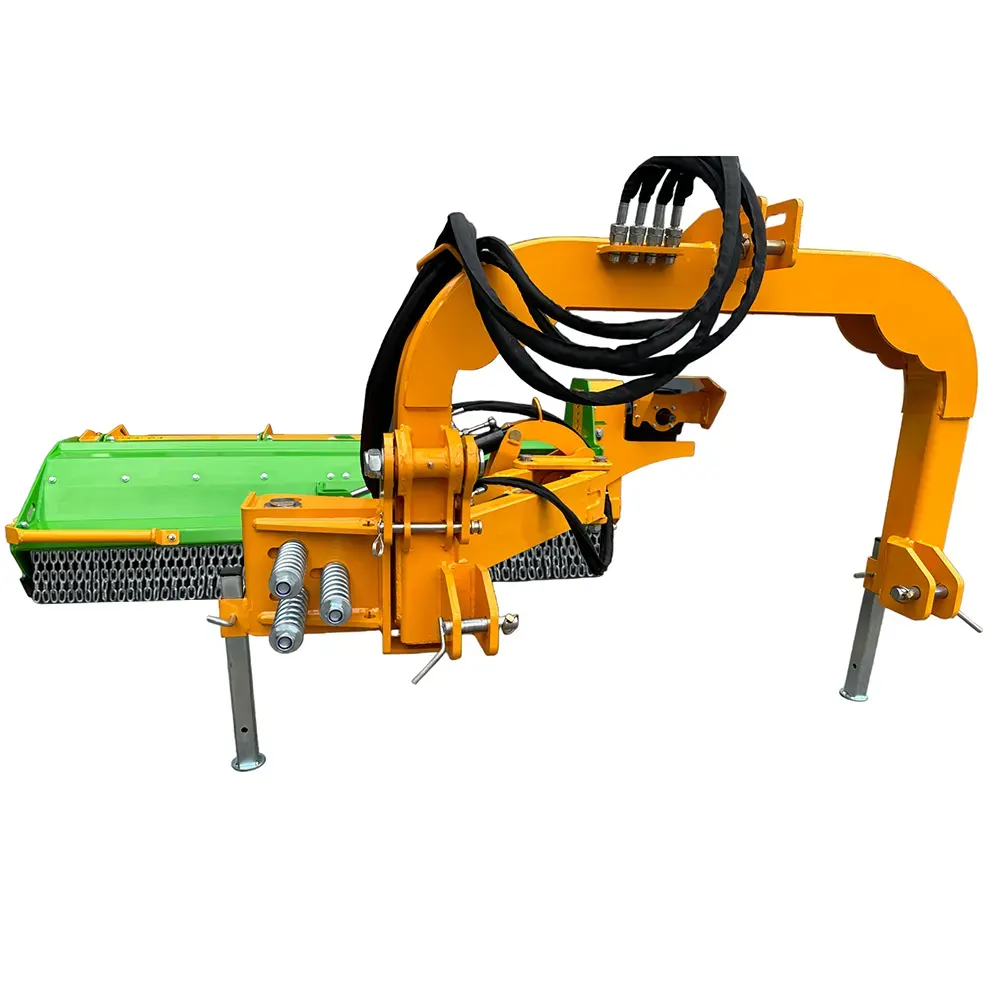

EMHD-86 Heavy-Duty Embankment Flail Mower with Crash Protection

The EMHD-86 sets the standard for embankment and verge mowing, featuring our pioneering “Crash Protection” system to safeguard your tractor and the mower. This model, complying with CE safety regulations, is designed for professional use, accommodating tractors with 75-110HP (PTO) and a CAT II 3-point hitch, ensures versatility and efficiency in handling various vegetation types.

Performance:

Engineered for mid-sized to larger tractors, the EMHD-86 embankment mower boasts a robust gearbox for heavy-duty tasks. With hydraulic linkage arms, it achieves maximum extension and flexibility, allowing for a working width of 86″. The mower’s vertical movement ranges from -40 degrees to 90 degrees, ensuring efficiency and maneuverability in diverse terrains. It requires 2 double-acting hydraulic control circuits for optimal hydraulic operations, offering unparalleled work efficiency.

Key Features:
➤ Advanced “Crash Protection” for enhanced safety
➤ Spiral flail shaft for improved balance and efficiency
➤ 30 forged galvanized steel high-performance flail hammers (800 grams each)
➤ Adjustable heavy self-cleaning rear roller and new counter knives for efficient mowing
➤ Free-wheel transmission (gearbox) rated at 75HP with a 5 belts drive system
➤ Maximum extension to 140″ from the middle of the tractor to the right side of the mower
➤ Three adjustable cutting height settings: ½” | 1 ½” | 2 ½”
➤ Suitable for cutting 1 ½” – 2″ saplings

PTO shaft included
Free Shipping
2 Years Warranty

The design emphasizes a maintenance-free crash protection system and an electronically balanced flail shaft driven by a 5 belts system, ensuring almost 100% power transfer. The reinforced CAT II 3-point hitch connection and stainless steel grease nipples underscore the mower’s durability and ease of maintenance. The professional-grade gearbox and safety flaps at the mower’s front enhance operational safety and efficiency.

Safety Features:

➤ Mechanical crash protection system
➤ Safety flaps to prevent debris ejection
➤ Stainless steel grease nipples for easy maintenance
➤ Electronically balanced flail shaft for reduced vibration

Safety is a top priority, with the EMHD-86 featuring a maintenance-free mechanical crash protection system that allows the mower to swing backward upon hitting a solid obstacle, thereby protecting both the mower and tractor. The safety flaps and heavy-duty construction provide additional safety measures to prevent debris from being thrown towards the operator.

ATTENTION: Machines are delivered partially assembled and do not contain any fuel, oil, or other operational fluids. Please carefully read the user manual before operation to ensure safe and effective use.

This comprehensive approach to performance, safety, and versatility makes the EMHD-86 an indispensable tool for professional land management, offering superior efficiency, safety, and durability.

Frequently Bought Together…

You May Also Like…

Victory Tractor Implements

Proud supporters of the FFA

Tractor Diagram
ABCDEHGL

Tractor HP recommended (PTO)65 – 100 HP70 – 110 HP75 – 110 HP80 – 120 HP
Cutting Width70 in.78 in.86 in.94 in.
Cutting Height0.5 – 2.5 in.0.5 – 2.5 in.0.5 – 2.5 in.0.5 – 2.5 in.
Cutting Diameter1.5 – 2 in.1.5 – 2 in.1.5 – 2 in.1.5 – 2 in.
Total Weight1,896 lb.1,980 lb.2,064 lb.2,148 lb.
3-Point HitchCAT IICAT IICAT IICAT II
Lower Hitch Spacing42.5 in.42.5 in.42.5 in.42.5 in.
PTO Shaft (Telescoping)79 – 108 in.79 – 108 in.79 – 108 in.79 – 108 in.
PTO Speed540 RPM540 RPM540 RPM540 RPM
Drive System5 Belts5 Belts5 Belts5 Belts
Flail Shaft Diameter6 5/8 “6 5/8 “6 5/8 “6 5/8 “
Flail Shaft Speed2,150 RPM2,150 RPM2,150 RPM2,150 RPM
Number of Flails24283034
Flails (Forged Steel)800 grams800 grams800 grams800 grams
Material Top6 mm6 mm6 mm6 mm
Side Walls8 mm8 mm8 mm8 mm
Paint (Green / Yellow)Powder CoatingPowder CoatingPowder CoatingPowder Coating
Max Side ExtensionCenter 124”Center 132”Center 140”Center 148”
Vertical Rotation-40 to +90-40 to +90-40 to +90-40 to +90

8 reviews for EMHD-86 Heavy Duty Embankment Flail Mower

  1. Allen Vest

    Allen Vest -September 4, 2024
    The EMHD-86 is a well built mower at a great price. I have used it around fields, creek banks and electric fences. Had some issues with bolts in gearbox and the tighting bolts but one call to Victory Implements and replacements were on the way. Thanks for the great service.

  2. Travis Wilson

    I bought the EMHD-86 and put it on my 75A Case/IH. I was not expecting the greatest mower given the price and knowing it was from China. Boy was I wrong!!! This unit is built very strong and rugged. Coming from a pipeliner, that is saying something! It is a beast!! First time out was 3 foot high hay/weeds and it mulched it effortlessly. The only gripe I have is it needs to be offered in red and silver!! Lol

  3. Jackson D

    Great mower at a great price!

  4. Willy

    Great mower. Had a small issue with a hydraulic leak on the tilt cylinder. One call to them and I had a replacement cylinder in a few days! Thanks for the great service!

  5. Keith

    The EMHD-86 is an excellent mower and a bargain for the price. We have used it to mow the banks of creeks, lakes, and ditches. In the vertical position, we have used it to trim tree limbs to make ATV trails in the woods. It performed well in both applications.

  6. Robert Meserve

    Mower was well built. A couple of the grease fittings were missing and the holes in the pto shield didn’t line up with the holes in the gearbox. Both easy fixes

  7. greg

    Pretty good mower for that price,cuts up a lot of stuff, heavy blades need to sharpen already but took a lot of abuse .tighten bolts,victory implements was good to deal with

  8. Lou Marchaland

    I gave this mower 5 stars. The mower seems to be well built.
    I was disappointed with the quality of a half a dozen of the grease zerks, they were miss-shapened and would not take grease and had to be replaced. Other then that the assembly went good. The parking stands needed a bit of modification, the circular plate on the bottom of them would not clear the frames to allow them to be pined in the bottom holes, a quick touch with a grinder and they are fine. Also at this price I can see why it wasn’t included but this mover should have a CV joint on the pto shaft. Also this long pto shaft did not have any grease zerks on the tubings.

Add a review

Your email address will not be published. Required fields are marked *

2024 EMHD Series User Manual (opens in a new tab)

Additional information

Weight964 lbs
Dimensions248 × 114 × 84 in
Lift Gate Needed

No, No Liftgate
