EMHD-70 Heavy Duty Embankment Flail Mower

Advance mowing safety with the EMHD-70, ideal for 65-100 HP (PTO) tractors. Boasts a 70″ mowing width and innovative Crash Protection for enhanced equipment safety.

Features hydraulic arms for extensive reach up to 124 inches, spiral flail shaft, and 26 high-performance hammers for efficient vegetation management. A reliable choice for demanding environments.


Store Rating
Satisfied Customers
Warranty
2 Year Warranty
Free Shipping
Free Shipping

Victory 2023 Flail Mower Buyer’s Guide

EMHD-70 Heavy-Duty Embankment Flail Mower with Crash Protection

The EMHD-70 embankment flail mower introduces an advanced level of safety for 2024 with the newly developed “Crash Protection” feature, designed to protect both your tractor and the implement. This model meets all safety regulations and has been CE tested, offering compatibility with tractors from 65-100HP (PTO) and featuring a CAT II 3-point hitch, providing versatile and efficient vegetation management solutions.

Performance:

Equipped with a powerful gearbox for heavy-duty use, the EMHD-70 is perfect for mid-sized to larger tractors. This professional mower boasts a working width of 70″ and hydraulic linkage arms for maximum extension and flexibility. It requires 2 double-acting hydraulic control circuits to fully operate, ensuring a wide range of vertical movement from -40 degrees to 90 degrees for comprehensive vegetation management, enabling effective coverage and adaptability.

Key Features:
➤ New “Crash Protection” feature for enhanced safety
➤ Suitable for 65-100HP (PTO) tractors with a CAT II 3-point hitch
➤ Spiral Flail Shaft for improved efficiency

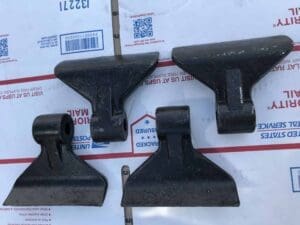

➤ 26 forged galvanized steel high-performance flail hammers (800 grams each)
➤ Heavy self-cleaning rear roller and new counter knives for optimal mowing
➤ Free-wheel transmission (gearbox) rated at 75HP, with a 5 belts drive system
➤ Maximum extension to 124″ from the middle of the tractor to the right side of the mower
➤ Three adjustable cutting height settings: ½” | 1 ½” | 2 ½”
➤ Suitable for cutting 1 ½” – 2″ saplings

PTO shaft included
Free Shipping
2 Years Warranty

The design includes a maintenance-free crash protection system, a robust gearbox, and an electronically balanced flail shaft to minimize vibration and maximize efficiency. Safety flaps at the front prevent debris ejection, and stainless steel grease nipples facilitate easy maintenance, with height-adjustable skids and support legs for storage.

Safety Features:

➤ Mechanical crash protection system for improved safety
➤ Safety flaps to prevent debris ejection
➤ Stainless steel grease nipples for simplified maintenance
➤ Electronically balanced flail shaft to reduce vibration and enhance durability

The EMHD-70’s mechanical crash protection system, which is maintenance-free, allows the mower to swing backward upon hitting solid obstacles, thus protecting both the mower and tractor. Alongside its heavy-duty construction and safety features, it offers a safer and more efficient mowing experience.

ATTENTION: Machines are delivered partially assembled and do not contain any fuel, oil, or other operational fluids. Please carefully read the user manual before operation to ensure safe and effective use.

With its comprehensive approach to performance, safety, and versatility, the EMHD-70 stands out as a vital tool for professional land management, ensuring efficiency, safety, and reliability in extensive mowing tasks.

Frequently Bought Together…

You May Also Like…

Victory Tractor Implements

Proud supporters of the FFA

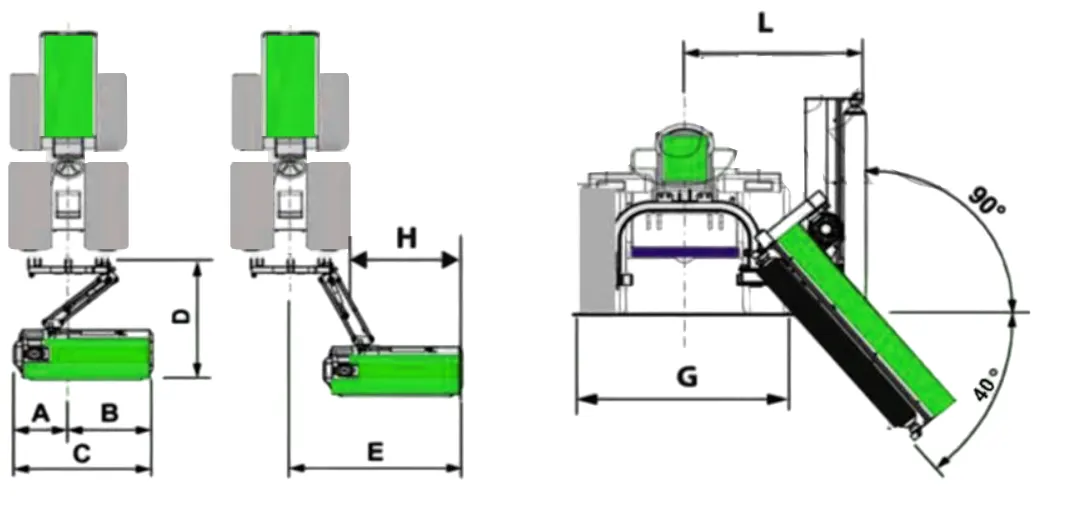

Tractor Diagram
ABCDEHGL

Tractor HP recommended (PTO)65 – 100 HP70 – 110 HP75 – 110 HP80 – 120 HP
Cutting Width70 in.78 in.86 in.94 in.
Cutting Height0.5 – 2.5 in.0.5 – 2.5 in.0.5 – 2.5 in.0.5 – 2.5 in.
Cutting Diameter1.5 – 2 in.1.5 – 2 in.1.5 – 2 in.1.5 – 2 in.
Total Weight1,896 lb.1,980 lb.2,064 lb.2,148 lb.
3-Point HitchCAT IICAT IICAT IICAT II
Lower Hitch Spacing42.5 in.42.5 in.42.5 in.42.5 in.
PTO Shaft (Telescoping)79 – 108 in.79 – 108 in.79 – 108 in.79 – 108 in.
PTO Speed540 RPM540 RPM540 RPM540 RPM
Drive System5 Belts5 Belts5 Belts5 Belts
Flail Shaft Diameter6 5/8 “6 5/8 “6 5/8 “6 5/8 “
Flail Shaft Speed2,150 RPM2,150 RPM2,150 RPM2,150 RPM
Number of Flails26283032
Flails (Forged Steel)800 grams800 grams800 grams800 grams
Material Top6 mm6 mm6 mm6 mm
Side Walls8 mm8 mm8 mm8 mm
Paint (Green / Yellow)Powder CoatingPowder CoatingPowder CoatingPowder Coating
Max Side ExtensionCenter 124”Center 132”Center 140”Center 148”
Vertical Rotation-40 to +90-40 to +90-40 to +90-40 to +90
