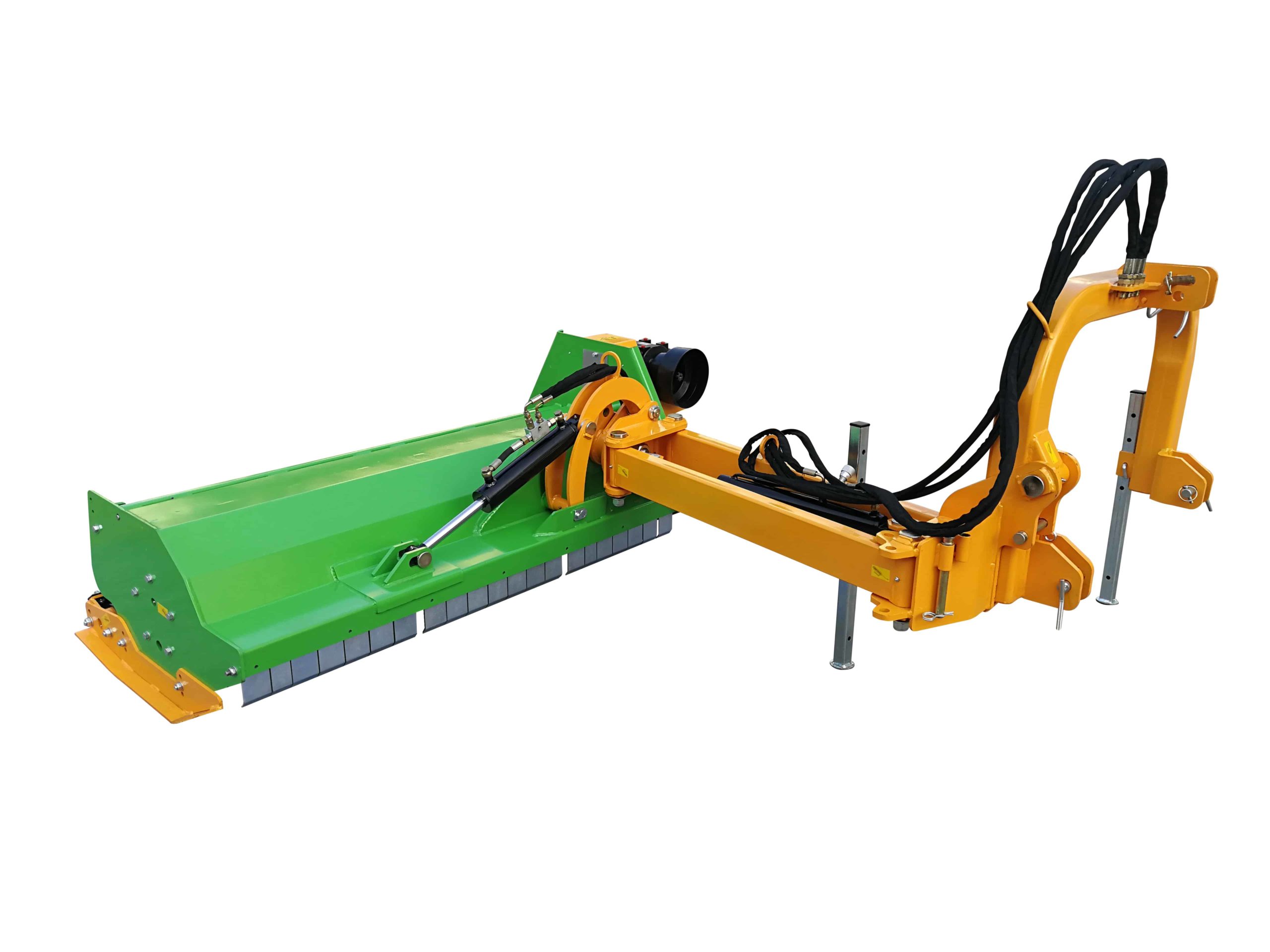

EMHD-78 Heavy Duty Embankment Flail Mower

Elevate land maintenance with the EMHD-78, ideal for 70-110 HP (PTO) tractors. Offers a 78″ mowing width and state-of-the-art Crash Protection, perfect for diverse terrain management.

Equipped with 28 high-performance flail hammers and extensive reach up to 132 inches, designed for efficiency and safety in challenging conditions.


Store Rating
Satisfied Customers
Warranty
2 Year Warranty
Free Shipping
Free Shipping

Victory 2023 Flail Mower Buyer’s Guide

EMHD-78 Heavy-Duty Embankment Flail Mower with Crash Protection

For 2024, the EMHD-78 embankment flail mower introduces enhanced safety with the “Crash Protection” feature, safeguarding both the tractor and the implement. Meeting all safety regulations and CE tested, this model is designed for professional use. It’s compatible with tractors ranging from 70-110HP (PTO) and features a CAT II 3-point hitch, offering a variety of mowing positions for comprehensive vegetation management.

Performance:

The EMHD-78 is built for heavy-duty use, equipped with a powerful gearbox suited for mid-sized to larger tractors. Its working width of 78″ and hydraulic linkage arms allow for maximum extension and flexibility, facilitating mowing in almost any position. This model requires 2 double-acting hydraulic control circuits for full operation, enabling a wide range of vertical movements from -40 degrees to 90 degrees, providing extensive coverage and efficiency in tackling various vegetation types.

Key Features:
➤ Advanced “Crash Protection” for improved safety
➤ Compatible with 70-110HP (PTO) tractors and a CAT II 3-point hitch
➤ Spiral Flail Shaft for increased mowing efficiency
➤ 28 forged galvanized steel high-performance flail hammers (800 grams each)
➤ Heavy self-cleaning rear roller and new counter knives for effective mowing
➤ Free-wheel transmission (gearbox) rated at 75HP with a 5 belts drive system
➤ Maximum extension to 132″ from the middle of the tractor to the right side of the mower
➤ Three adjustable cutting height settings: ½” | 1 ½” | 2 ½”
➤ Suitable for cutting 1 ½” – 2″ saplings

PTO shaft included
Free Shipping
2 Years Warranty

Incorporating a maintenance-free crash protection system, the EMHD-78 also features a robust gearbox and an electronically balanced flail shaft to ensure minimal vibration and maximum efficiency. The mower includes safety flaps at the front to prevent debris ejection, stainless steel grease nipples for easy maintenance, and height-adjustable skids and support legs for convenient storage.

Safety Features:

➤ Mechanical crash protection system for enhanced safety
➤ Safety flaps to protect against debris ejection
➤ Stainless steel grease nipples for easy maintenance
➤ Electronically balanced flail shaft for reduced vibration and improved durability

The EMHD-78’s safety features include a maintenance-free mechanical crash protection system that allows the mower to swing backward upon encountering solid obstacles, protecting both the mower and tractor. This, along with its sturdy construction and safety mechanisms, ensures a safer mowing experience.

ATTENTION: Machines are delivered partially assembled and do not contain any fuel, oil, or other operational fluids. Please carefully read the user manual before operation to ensure safe and effective use.

This mower combines performance, safety, and versatility, making the EMHD-78 an essential tool for professional land management, ensuring efficiency, safety, and reliability in extensive mowing tasks.

Frequently Bought Together…

You May Also Like…

Victory Tractor Implements

Proud supporters of the FFA

Tractor Diagram
ABCDEHGL

Tractor HP recommended (PTO)65 – 100 HP70 – 110 HP75 – 110 HP80 – 120 HP
Cutting Width70 in.78 in.86 in.94 in.
Cutting Height0.5 – 2.5 in.0.5 – 2.5 in.0.5 – 2.5 in.0.5 – 2.5 in.
Cutting Diameter1.5 – 2 in.1.5 – 2 in.1.5 – 2 in.1.5 – 2 in.
Total Weight1,896 lb.1,980 lb.2,064 lb.2,148 lb.
3-Point HitchCAT IICAT IICAT IICAT II
Lower Hitch Spacing42.5 in.42.5 in.42.5 in.42.5 in.
PTO Shaft (Telescoping)79 – 108 in.79 – 108 in.79 – 108 in.79 – 108 in.
PTO Speed540 RPM540 RPM540 RPM540 RPM
Drive System5 Belts5 Belts5 Belts5 Belts
Flail Shaft Diameter6 5/8 “6 5/8 “6 5/8 “6 5/8 “
Flail Shaft Speed2,150 RPM2,150 RPM2,150 RPM2,150 RPM
Number of Flails26283032
Flails (Forged Steel)800 grams800 grams800 grams800 grams
Material Top6 mm6 mm6 mm6 mm
Side Walls8 mm8 mm8 mm8 mm
Paint (Green / Yellow)Powder CoatingPowder CoatingPowder CoatingPowder Coating
Max Side ExtensionCenter 124”Center 132”Center 140”Center 148”
Vertical Rotation-40 to +90-40 to +90-40 to +90-40 to +90
