The Ultimate Guide to the Pat’s Easy Change System: A Comprehensive Overview and Installation Guide
In today’s fast-paced world, time is of the essence. For tractor enthusiasts and professionals alike, the need for efficient and effective equipment is paramount. Enter the Pat’s Easy Change System, a revolutionary tool designed to make hooking up implements to your tractor a breeze. But is it worth the investment? Let’s dive deep into this system, its features, and its real-world applications.
Article Summary
| Topic | Details |
|---|---|
| Product Overview | Pat’s Easy Change System is a quick hitch solution for tractors. |
| Key Features | Simplifies attaching/detaching implements, eliminates heavy lifting, and offers flexibility with implements. |
| Differences from Standard | Focuses on lower links with a unique ‘eagle claw’ design. |
| Compatibility | Fits most tractors with a three-point hitch; ensure correct category selection. |
| Installation | Straightforward process; can be done within 15-30 minutes. |
| Additional Accessories | Optional accessories available like adjustable stabilizer bar; PTO extender or longer top link might be needed. |
Regular Quick Hitch vs. Pat’s Easy Change System
Pat’s Easy Change System, often known as Pat’s Quick Hitch, addresses a range of challenges commonly associated with typical quick hitches, particularly in terms of compatibility with various implements. One of the primary advantages of Pat’s Quick Hitch is its ability to accommodate implements with different widths. Unlike traditional 3 point quick hitches that may struggle with this variance, Pat’s system offers adjustable settings, making it highly versatile. Additionally, aligning the hitch with the implement pins can be a tedious task with standard hitches, especially if the implements aren’t standardized. Pat’s system streamlines this, ensuring a more efficient hookup process.
A significant advantage of Pat’s Quick Hitch is its broader compatibility. Many traditional quick hitches aren’t universally compatible with all category 1 or category 2 implements due to their design. In contrast, Pat’s system is designed to accommodate a more extensive range of implements without needing additional adapters or modifications. Additionally, for those seeking added stability, Pat’s system offers an optional adjustable stabilizer bar. This bar can maintain a fixed distance between the hooks, ensuring easier and more stable connections to implements of varying sizes.
In essence, for tractor owners who’ve faced compatibility challenges with traditional 3 point quick hitches, Pat’s Quick Hitch emerges as a more adaptable and user-friendly solution.
Understanding the Pat’s Easy Change System
The Pat’s Easy Change System has been on the market for a while, with many tractor owners swearing by its efficiency. Designed for the three-point hitch on tractors, this system has proven its worth over the years. The main component of this system is the hook body, which comes in different categories, such as category one and two. This hook body is equipped with a locking tab that can be manually adjusted. It’s spring-loaded and can be locked in both closed and open positions, ensuring the safety and stability of your implements.

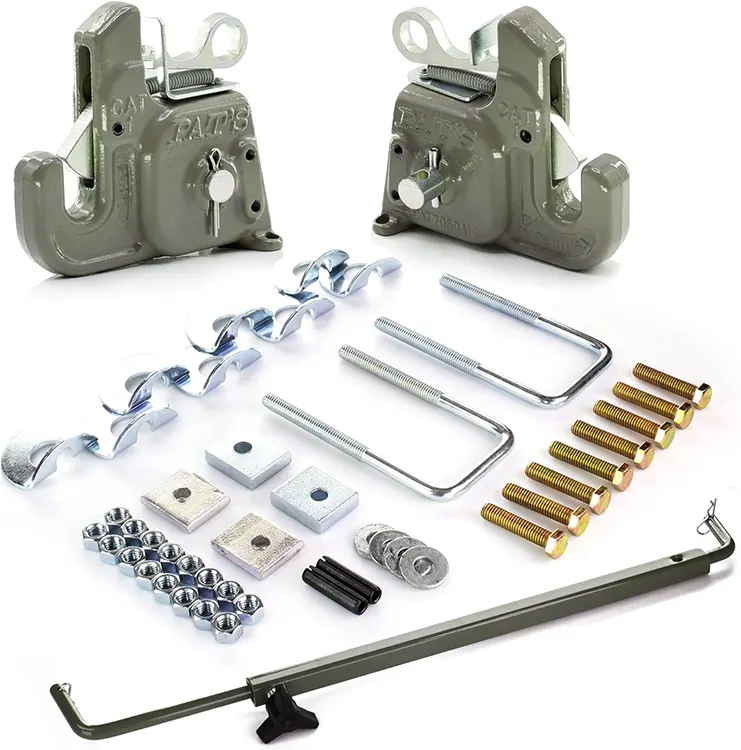

Pat’s Easy Change with Stabilizer Bar
Category 1 | Category 2
The Pat’s Easy Change System, often referred to as Pat’s Quick Hitch, offers several benefits to tractor owners and operators. Here are the primary advantages of using the Pat’s Quick Hitch:
- Ease of Use: The system simplifies the process of connecting and disconnecting implements to the tractor’s three-point hitch. This means less time spent on hooking up equipment and more time working.
- Flexibility: Unlike some standard quick hitches, Pat’s system is designed to accommodate implements of varying widths. This makes it versatile and suitable for a broader range of equipment.
- Durability: Many users have reported that the Pat’s Easy Change System holds up well over time, even with regular use. The robust design ensures longevity and reduces wear and tear on both the system and the tractor’s three-point arms.
- Safety: The locking mechanism of the Pat’s system ensures that implements are securely attached, reducing the risk of accidental disconnections.
- Cost-Effective: While there is an initial investment, the time and labor saved in the long run can lead to cost savings. Additionally, the system is competitively priced compared to other quick hitches on the market.
- Minimal Wear and Tear: The design of the Pat’s system results in minimal wear and tear on the tractor’s three-point arms. This can lead to longer equipment life and reduced maintenance costs.
- Optional Stabilizer Bar: The system offers an optional adjustable stabilizer bar, which can hold the distance between the hooks fixed, making it even easier to hook up certain implements.
- Compatibility: The Pat’s Easy Change System is designed to fit a variety of tractors and lift arms, making it a versatile choice for many tractor owners.
- Space-Saving: The design of the Pat’s system adds minimal length to the three-point lift arms, ensuring that storage and maneuverability are not significantly impacted.
- Community Endorsement: Many tractor enthusiasts and professionals have shared positive reviews and testimonials about the system, indicating its reliability and effectiveness.
In conclusion, the Pat’s Quick Hitch system offers a combination of convenience, durability, and safety, making it a valuable addition for tractor owners looking to streamline their operations and improve efficiency.
Installation and Adjustments
Installing the Pat’s Easy Change System is straightforward. Slide the main body over the end of the three-point lift arm and insert the retaining pin from the inner side. It’s crucial to ensure that the hole in the retaining pin is oriented correctly, especially if you’re using the optional stabilizer bar.
The system is designed to fit lift arms of varying sizes, and to ensure a snug fit, shims are provided. These shims, available in different thicknesses, can be used individually or combined as needed. Once the correct shim is in place, the hook body aligns perfectly with the lift arm, ensuring a stable connection.
Here’s a step-by-step installation guide for the Pat’s Easy Change System (Quick Hitch):
Pat’s Easy Change System Installation Guide
Identify Components: Before starting, lay out all the components of the Pat’s system. This typically includes the main hook bodies, retaining pins, shims, U-bolts, alignment bolts, and jam nuts.
1. Shim Selection:
- Measure the height of your three-point lift arms.
- Choose the appropriate shim (either thick or thin) based on the height of your lift arms. The shims help ensure the hook body aligns correctly with the lift arms.
2. Install the Roll Pin:
- Hammer the roll pin into the selected shim.
- This roll pin will fit into a hole at the bottom of the hook body.
3. Attach the Main Hook Body:
- Slide the main hook body over the end of the three-point lift arm.
- Insert the retaining pin from the inner side of the main hook body. Ensure the hole in the retaining pin (for the optional stabilizer bar) faces the inside.
4. Secure the Hook Body:
- With the proper shim in place, position the hook body on the end of the lift arm.
- Insert the retaining pin and then attach the cotter pin on the other side.
- Bend one leg of the cotter pin to ensure it stays in place.
5. Install the U-Bolt:
- Place the U-bolt around the lift arm and through the holes in the hook body. This prevents the hook body from tilting upwards.
- Secure the U-bolt using a washer, followed by a nut, and then a jam nut.
6. Alignment:
- Adjust the four alignment bolts on the sides of the hook body. This ensures the hook bodies are in line with the lift arms and are perpendicular to the ground.
- Once the hook body is correctly positioned, tighten the jam nuts on each bolt.
7. Final Tightening:
- Tighten the U-bolts securely.
- Follow up by tightening the jam nuts.
8. Check Alignment:
- Use a straight edge or broomstick to check the alignment of the hooks. When adjusted correctly, the hooks should be parallel to each other and perpendicular to the floor when the three-point is in a mid-height position.
9. Optional Stabilizer Bar:
- If you have the optional adjustable stabilizer bar, it can be installed to hold the distance between the hooks fixed. This is especially useful when hooking up implements.
10. Final Inspection:
- Ensure all components are securely fastened and that there’s no excessive movement in the system.
- Test the system by attaching an implement to ensure everything aligns correctly and the locking mechanism functions as expected.
Remember, always refer to the manufacturer’s instructions when installing any equipment. This guide provides a general overview based on the content provided, and there might be specific nuances or additional steps in the official manual.
Need a little more guidance? Check out Ask Tractor Mike on YouTube for comprehensive installation overview
Durability and Maintenance
One of the main concerns of any tractor owner is the wear and tear of equipment. After two and a half years of using the Pat’s Easy Change System, many users have reported minimal wear. The original three-point arms remain in good condition, with only minor paint chipping observed. However, it’s essential to note that the system can accumulate dirt and dust over time, so regular cleaning is recommended.
Cost Implications
The Pat’s Easy Change System is priced competitively, usually ranging between $200 and $250. This price includes the adjustable stabilizer bar and sets of linchpin washers. Depending on your needs, you might require additional accessories, such as a PTO extender or a longer top link. These additions can increase the total cost, but the convenience and time saved often justify the investment.
Pat’s Easy Change with Stabilizer Bar
Category 1 | Category 2
Final Thoughts
In conclusion, the Pat’s Easy Change System is a game-changer for tractor owners. Its ease of installation, durability, and efficiency make it a worthy investment. Whether you’re a seasoned tractor professional or a newbie, this system promises to make your life easier. And with the increasing demand for quick hitches for tractors and the quest for the best quick hitch, the Pat’s Easy Change System stands out as a top contender.
Remember, the right equipment can make all the difference. So, if you’re in the market for a reliable, efficient, and durable hitch system, the Pat’s Easy Change System might just be what you need. Happy farming!
FAQ
1. What is the Pat’s Easy Change System?
Answer: The Pat’s Easy Change System is a quick hitch solution designed to simplify the process of attaching and detaching implements to a tractor’s three-point hitch. It eliminates the need for heavy lifting and alignment struggles, making the process quicker and more efficient.
2. How does the Pat’s system differ from a standard quick hitch?
Answer: Unlike a standard quick hitch that connects both the top link and lower links simultaneously, the Pat’s system focuses on the lower links. It uses a unique “eagle claw” design to grab onto implements. This design allows for more flexibility in attaching implements of different widths and is especially useful for tractors and implements that may not conform to the exact specifications of a standard quick hitch.
3. Can I use the Pat’s system with any tractor or implement?
Answer: The Pat’s system is designed to be versatile and can fit most tractors with a three-point hitch. However, it’s essential to ensure that you select the correct category (e.g., Category 1 or Category 2) for your tractor and implements. Additionally, while it can accommodate many implements, there might be some exceptions, so it’s always a good idea to check compatibility before purchasing.
4. Is the installation process complicated?
Answer: No, the installation process for the Pat’s system is straightforward. Most users can install it within 15-30 minutes. The system comes with all the necessary components, including the main hook bodies, retaining pins, shims, U-bolts, and alignment bolts. A step-by-step guide is usually provided, and there are also many online resources and videos available to assist with the installation.
5. Do I need any additional accessories with the Pat’s system?
Answer: The basic Pat’s system comes with everything needed for installation. However, there are optional accessories available, such as the adjustable stabilizer bar, which can help maintain a fixed distance between the hooks. Depending on your tractor setup and the length added by the Pat’s system, you might also consider accessories like a PTO extender or a longer top link, but these are not mandatory for the system to function.
Always refer to the manufacturer’s official documentation or customer support for specific queries or detailed information about the product.
