Victory’s tractor backhoe attachment is a self-contained universal backhoe powered by PTO pump that does not require use of tractor hydraulics to operate.

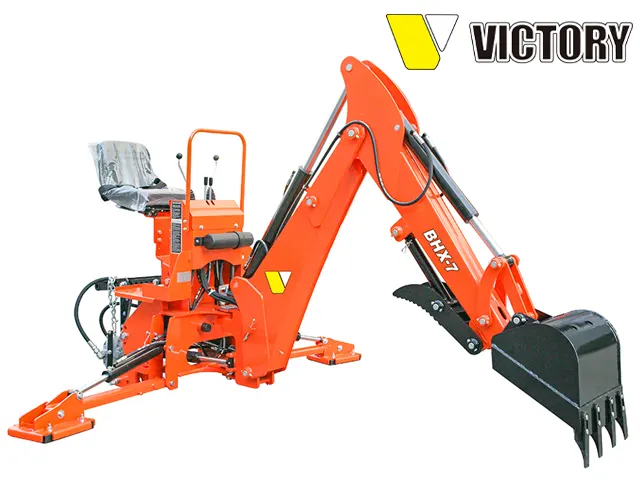

BHX Series Backhoe with Mechanical Thumb
.
.
Victory Tractor Backhoes: Superior Digging and Excavation
Tractor backhoes are versatile tools for digging, trenching, and excavation tasks. They are essential for construction, landscaping, and agricultural projects. Victory Tractor Implements offers a range of tractor backhoes designed for various horsepower requirements and digging depths. Our backhoes come with features like mechanical thumbs and different bucket sizes, ensuring efficient and precise digging.
Tough, reliable, and effective, Victory’s BHX compact tractor backhoe line offers access to areas full of obstacles and less accessible to other types of machinery. These include unique specifications, made for hassle-free performance and better durability. Excavating in Vineyards, orchards, crop fields, large properties and agricultural terrains is now possible without the high costs often associated with purchasing a 3 point backhoe attachment. With Victory Tractor, you can be confident in a job well done and value that cannot be matched.
12 DIY Projects for your Tractor Mounted Mini Backhoe Excavator
Compare Backhoes
| Specification | BHX-6 Backhoe | BHX-7 Backhoe | BHX-8 Backhoe |
|---|---|---|---|
| Max. Digging Depth | 7′ | 8′ | 9′ |
| Digging Depth (2 Foot Flat Bottom) | 6’6″ | 7’6″ | 8’6″ |
| Swing Arc | 180° | 180° | 180° |
| Loading Height (Bucket at 60°) | 5′ | 5’10” | 6’1″ |
| Reach from Center Line of Pivot | 8’6″ | 9’6″ | 10’6″ |
| Transport Height (Max) | 4’11” | 5’9″ | 6’5″ |
| Bucket Rotation | 180° | 180° | 180° |
| Loading Reach (Bucket at 60°) | 3’2″ | 3’7″ | 4′ |
| Transport Overhang | 3’5″ | 3’6″ | 4′ |
| Undercut | 2’4″ | 2’6″ | 2’8″ |
| Stabilizer Spread (Down Position) | 6’6″ | 7’5″ | 7’5″ |
| Bucket Cylinder Digging Force | 2450 lbs | 2840 lbs | 3000 lbs |
| Dipper Stick Cylinder Digging Force | 1950 lbs | 2005 lbs | 2500 lbs |
| Total Digging Force | 4400 lbs | 4845 lbs | 5500 lbs |
| Weight with Bucket | 995 lbs | 1030 lbs | 1150 lbs |
| Shipping Weight | 1023 lbs | 1178 lbs | 1300 lbs |
| Minimum Horsepower | 15 | 25 | 35 |
Frequently Asked Questions (Tractor Backhoe FAQ)
What is a Tractor Backhoe Attachment?
Why Choose Victory?
Victory Tractor Implements is known for providing high-quality backhoe attachments and mini excavators to meet all your digging needs. Our backhoes are designed for hassle-free performance, durability, and access to areas full of obstacles. With Victory, you can be confident in a job well done and value that cannot be matched.
Where are Victory Tractor Backhoes Made?
Victory tractor backhoes are manufactured overseas in state-of-the-art facilities using modern engineering principles. All products are shipped directly from our Southern California warehouse.
Victory Tractor Implements sources the highest quality agricultural farming equipment direct from the manufacturer, cutting out the middleman and delivering the savings straight to you. Our reduced overhead means we are able to provide high quality machinery at a fraction of the cost! But don’t just take our word for it. See what our satisfied customers are saying on Google.
Does Victory Tractor Implements offer free shipping? What about Warranty?
Yes, we offer free shipping within the continental US. All Victory products come with a two-year warranty, and replacement parts are readily available.
How do I know if a Tractor Backhoe is compatible with my tractor?
Ensure your tractor’s HP rating is above the minimum recommended HP requirement highlighted in the product description.
Which Tractor Backhoe is Best Suited for my Needs?
Consider the digging depth, horsepower requirements, and specific features you need. Our team is here to assist you in making the right choice.
At Victory Tractor, we source all of our equipment directly from the manufacturer and pass the savings on to our customers. As always, the team is standing by to answer any questions to assist with your decision. Victory Support can be reached directly at (562) 534-8182 or sales@etractorimplements.com
