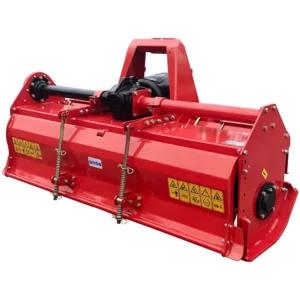

HRT-80 Rotary Tiller

Heavy Duty Tiller with 80″ working width, 35 – 50 HP, CAT II 3-Point Hitch, Slip Clutch PTO,

Tiller’s working weight is 1,095 lb.

PTO Shaft Included | Free Shipping | Warranty Included

Product Size

HRT-60 | HRT-70 | HRT-80

Description

HRT-80 Heavy-Duty Rotary Tiller from Victory Tractor Implements

Gear Driven for Smaller Tractors 35-50HP, PTO shaft included (with slip clutch)

Performance:

Our Rotary Tillers are the ideal machines to prepare any kind of soil mix in planting preparations for your property. This rugged heavy-duty machine is designed for your Smaller to Mid-Sized Tractors.  With 35 – 50 HP you will obtain maximum performance.

Your Standard CAT II 3-point hitch connects the Tiller (adjustable lower hitch brackets) with our PTO shaft (with slip clutch) to your tractor, transferring the tractor’s 540RPM by driven gear to 215RPM of rotor speed. Because the tiller turns in the same direction as your forward-moving tractor, you need less horsepower. The working width is 80″ and the 3-way adjustable working depth reaches up to 7″ depending on the soil condition. The skid shoes with 3-way adjustment are included.

Features:

Victory uses an oil bath gear transmission (maintenance-free).

The laser-balanced tiller blade shaft runs smoothly through even heavy and hard soil in the same direction as your forward-moving tractor.

Underneath the 4mm steel housing sits the blade shaft with 10 flanges, each flange has 6 L-shaped blades (3 left & 3 right).

With a working width of 80 inches, you have a total of 60 blades. Each blade weighs 940 grams. The blades are individually exchangeable and can be re-sharpened.

Safety:

The freewheel transmission allows the blade shaft to turn, once the PTO is switched off, so its movement will not transfer to the Tractor.

The PTO shaft supplied with all tillers has a friction clutch (slip) for perfect protection at a length of 31″.

The height-adjustable rear flap is providing a smooth finish and also protects against flying rocks for added safety.

The Tiller requires some assembly which is identified in the owner’s manual.

Victory Tractor Implements machines meet all established safety standards.

For more information about Rotary Tillers take a look at our guides:

The Ultimate Rotary Tiller Guide

How to Operate a Rotary Tiller



Call Victory Tractor at (562) 534-8182 to place your order today!



Frequently Bought Together…

You May Also Like…

Victory Tractor Implements

Proud supporters of the FFA

Product DesignationHRT-60HRT-70HRT-80
Dimensions (L x W x H)70”x42”x36”80”x42”x36”90”42”x36”
Structure Weight915 lb.1,015 lb.1,095 lb.
Working Width60”70”80”
Number of Flanges8910
Number of blades/flange666
PTO shaft length31″31″31″
Tractor Power25-40 HP30-50 HP35-60 HP
3-Point HitchCAT IICAT IICAT II
Tractor RPM540540540
Rotor Shaft Speed214 RPM214 RPM214 RPM
Rotor Diameter16 ½ in.16 ½ in.16 ½ in.
Gearbox OilSEA 40SEA 40SEA 40



1 review for HRT-80 Rotary Tiller

  1. Robert from Arkansas

    I am using a 60 hp (52 hp @PTO) tractor with the HRT-80 rotary tiller. When tilling at maximum depth, it loads the tractor similarly to my 3 bottom breaking plow. I generally run 2nd gear on my Ford 8 speed tractor. The tiller seems well made and heavy duty. As with most all new tillers, you will need to cut down the PTO shaft length and important to limit the lift height and side sway of the implement to prevent PTO damage. There are YouTube videos explaining how to cut a tiller PTO correctly. I would recommend checking all bolts for tightness and fluid levels before operating. Also note this is a CAT 2 only implement. So far, I am well pleased with the tiller.
