FMHD-86 Heavy Duty Flail Mower

Efficient landscape management with the FMHD-86 Flail Mower, designed for 50-85HP (PTO) tractors. This powerhouse offers an 86″ cutting width and 18″ manual side shift, perfect for precision tasks.

Equipped with 800-gram flails on a robust shaft for unmatched durability. The heavy-duty gearbox and electronically balanced design minimize vibration, ensuring operator comfort and mower longevity. Ideal for clearing grass, underbrush, and prunings with efficiency and ease.

Get notified when product is in stock

Store Rating
Satisfied Customers
2 Year Warranty
Free Shipping
Free Shipping

Victory 2023 Flail Mower Buyer’s Guide

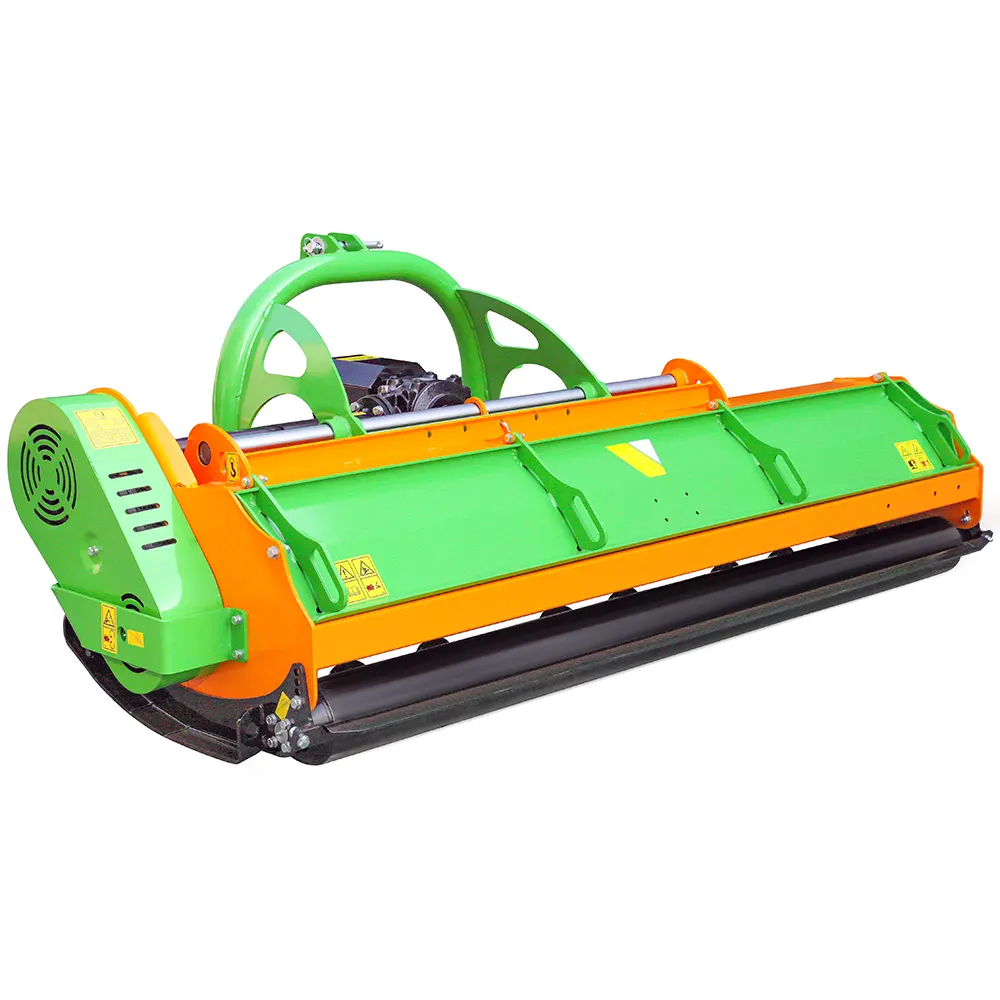

FMHD-86 Heavy Duty Flail Mower

Our FMHD-86 heavy-duty flail mower is the professional’s choice for cutting grass, heavy undergrowth, and tree prunings. Featuring 800-gram flails and an extra-large diameter flail shaft (6 5/8″ diameter), it is built for exceptional durability and performance.


Equipped with dual CAT pins fitting both CAT I & CAT II 3-point hitches, the FMHD-86 is designed for tractors with PTO performance ranging from 50 to 85HP and a PTO shaft speed of 540 RPM. With its superior materials and craftsmanship, each mower comes with a 2-year warranty and free shipping to your location (lower 48 States). Please note liftgate service is not available due to the size of the item. Must have forks / forklift or deliver to a dock high facility.

Key Features:
➤ Robust construction with an extra heavy-duty gearbox (50HP)

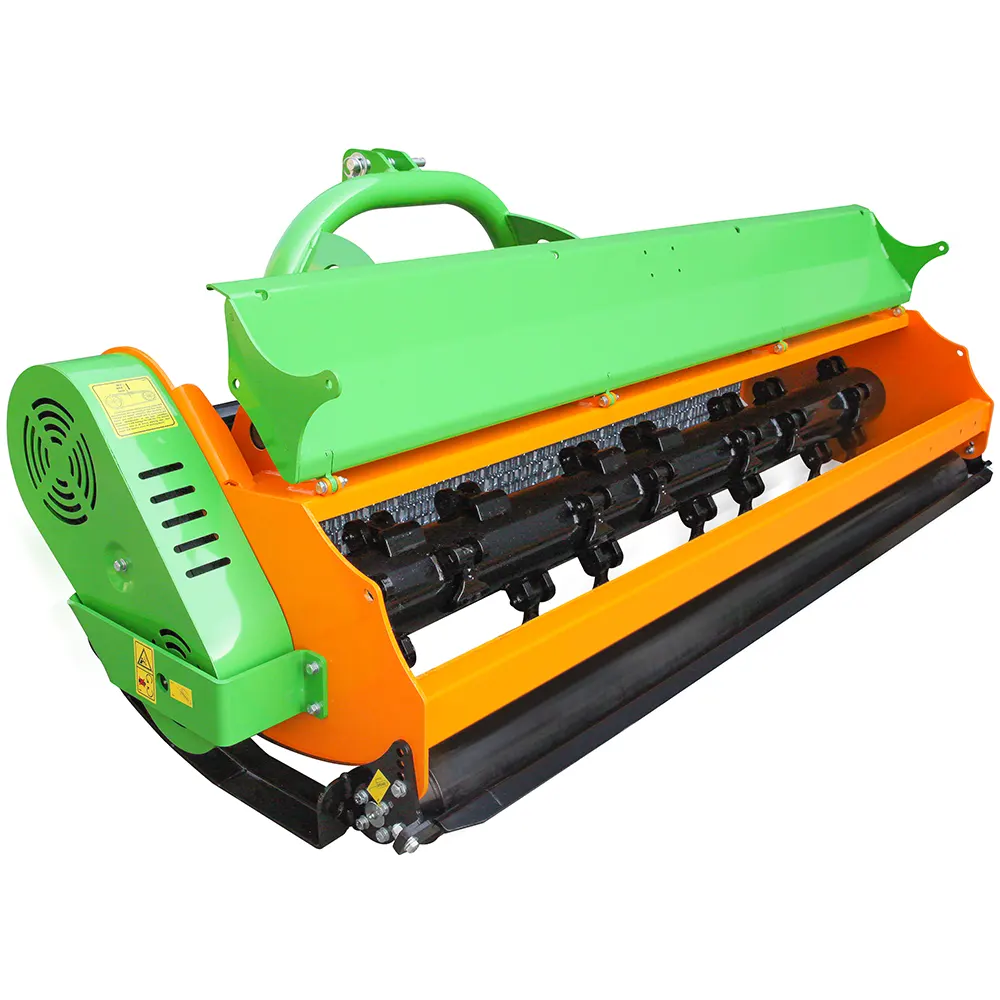

➤ Convenient hinged rear gate for effortless cleaning and maintenance
➤ Superior cutting with staggered flails on the rotor shaft
➤ Electronically balanced shaft for reduced vibration and bearing wear
➤ Adjustable side shift with 5 manual settings for precision mowing near obstacles
➤ Four adjustable cutting height settings: ¾” | 1 ½” | 2 ⅜” | 3 ¼”
➤ Suitable for cutting 1 ½” – 2″ saplings

PTO shaft included
Free Shipping
2 Years Warranty

The FMHD-86 is engineered with a focus on robust construction and functional versatility. Its heavy-duty gearbox promises enduring performance under the toughest conditions, while the hinged rear gate ensures easy access for maintenance. The clean, superior cut is achieved through staggered flails, enhanced by an electronically balanced shaft that ensures smooth operation. The mower’s adjustable side shift settings provide mowing precision near obstacles, catering to a variety of landscaping needs.

Safety Features:

➤ Gearbox operates independently for enhanced safety
➤ Front protection guard minimizes the risk of debris ejection
➤ Heavy-duty construction enhances overall safety and durability

The design of the FMHD-86 places a premium on safety, featuring an independent gearbox that allows for secure operation even when the tractor’s PTO is disengaged. The front protection guard and the mower’s heavy-duty construction work together to provide added durability and protect the operator from flying debris.

ATTENTION: Machines are delivered partially assembled and do not contain fuel, oil, or operational fluids. It is crucial to read the user manual carefully before operation to ensure safe and efficient use.

The FMHD-86 represents a blend of performance, durability, and safety, making it an indispensable tool for those in need of a high-quality, reliable flail mower for extensive land management tasks.

Frequently Bought Together…

You May Also Like…

Victory Tractor Implements

Proud supporters of the FFA

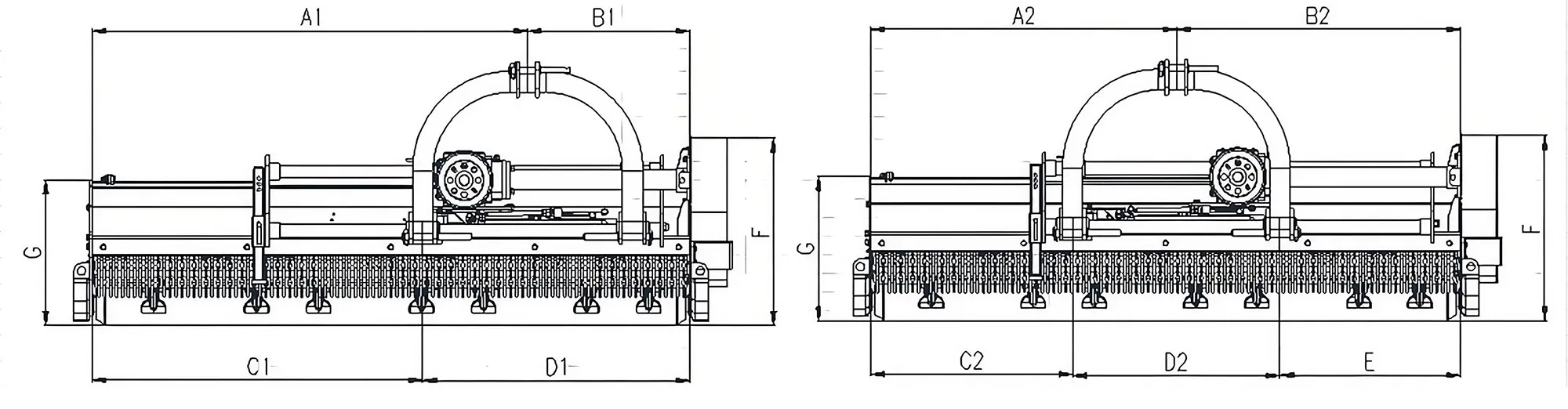

Working Width64 in.70 in.78 in.86 in.
Total Weight1,034 lb.1,101 lb.1,168 lb.1,235 lb.
Tractor Power (PTO)35 – 60 HP40 – 65 HP45 – 75 HP50 – 85 HP
PTO Speed (cw)540 RPM540 RPM540 RPM540 RPM
PTO Shaft length36″36”36”36”
Drive System4 Belts4 Belts4 Belts4 Belts
Flail Shaft Speed2,125 RPM2,125 RPM2,125 RPM2,125 RPM
Number of Flails22242628
Flails (forged steel)800 grams800 grams800 grams800 grams
Working Effi’ per Hr.1.0-2.5 ac.1.5-3.0 ac.2.0 – 3.5 ac.2.5 – 4.0 ac.
Dimensions (WxHxD)71x35x40 in.79x35x40 in.87x35x40 in.94x35x40 in.
Flail Shaft Diameter6 5/8 in.6 5/8 in.6 5/8 in.6 5/8 in.
Material Top Housing5 mm5 mm5 mm5 mm
Side Walls8 mm8 mm8 mm8 mm
Paint (yellow/green)Powder CoatPowder CoatPowder CoatPowder Coat
Flail Shaft MaterialQ345BQ345BQ345BQ345B
Shipping Box (LxHxW)74x28x40 in.82x28x40 in.90x28x40 in.98x28x40 in.
