EMSD-56 Standard Duty Ditch Mower
EMSD-56 Standard Duty Ditch Mower
EMSD-48 Embankment Flail Mower Standard Duty
EMSD-48 Embankment Flail Mower Standard Duty
Flail Mower Video Thumbnail

EMSD-56 Embankment Flail Mower Standard Duty

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

$2,245.00

Embankment Flail Mower with your smaller tractors for better performance.

For Tractors with 25-50HP,  56″ Mowing Width, New Spiral Flail Shaft with better performance.

PTO Shaft Included!

– Free Shipping!

Warranty Included!

Questions?  Check out our blog post Everything You Need to Know About Buying a Flail Mower online.

Call Victory Tractor at (562) 235-5725 to place your order today!

Clear
SKU: VTI-EMSD-145-Yellow/Green Category:

Description

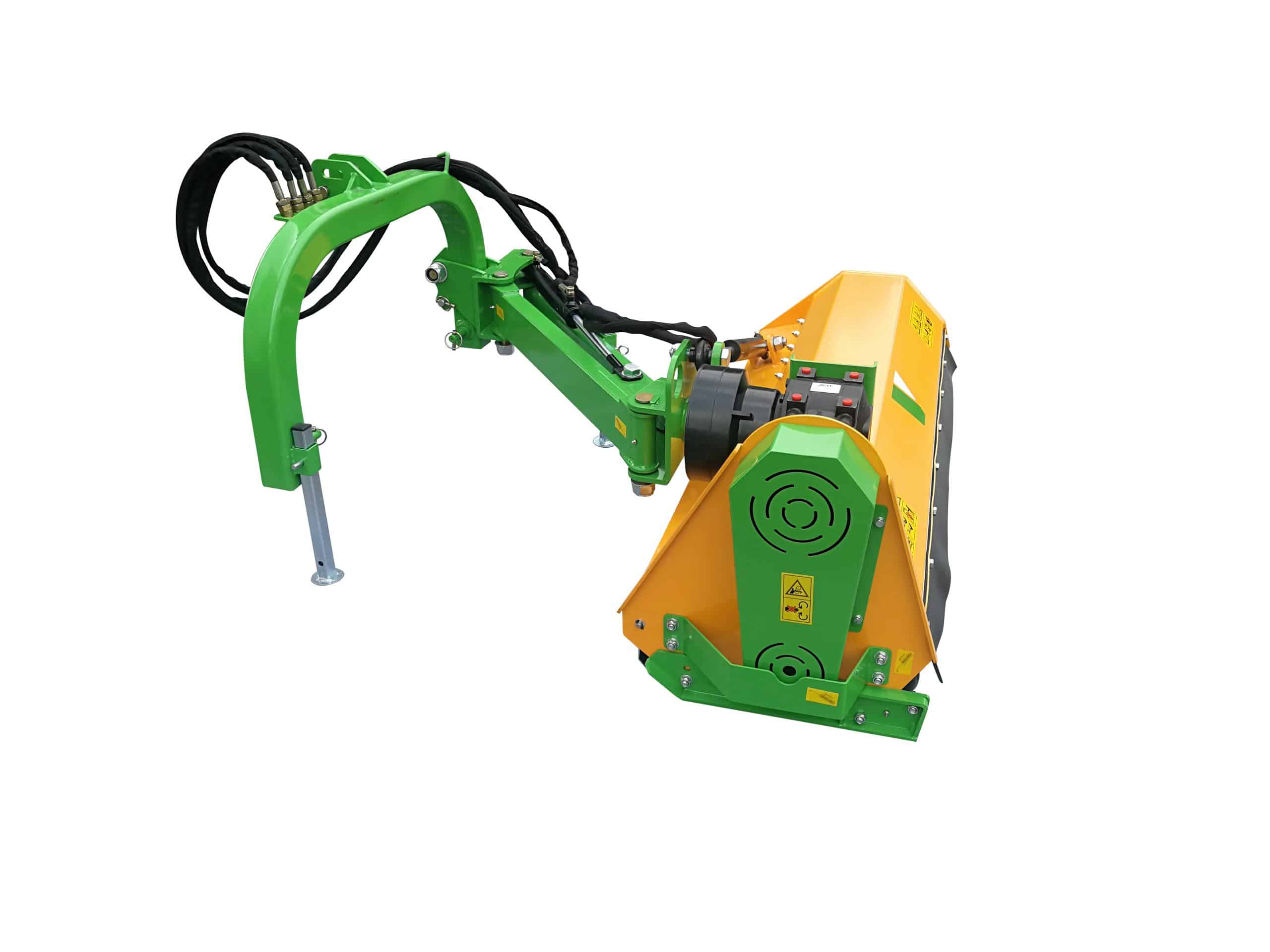

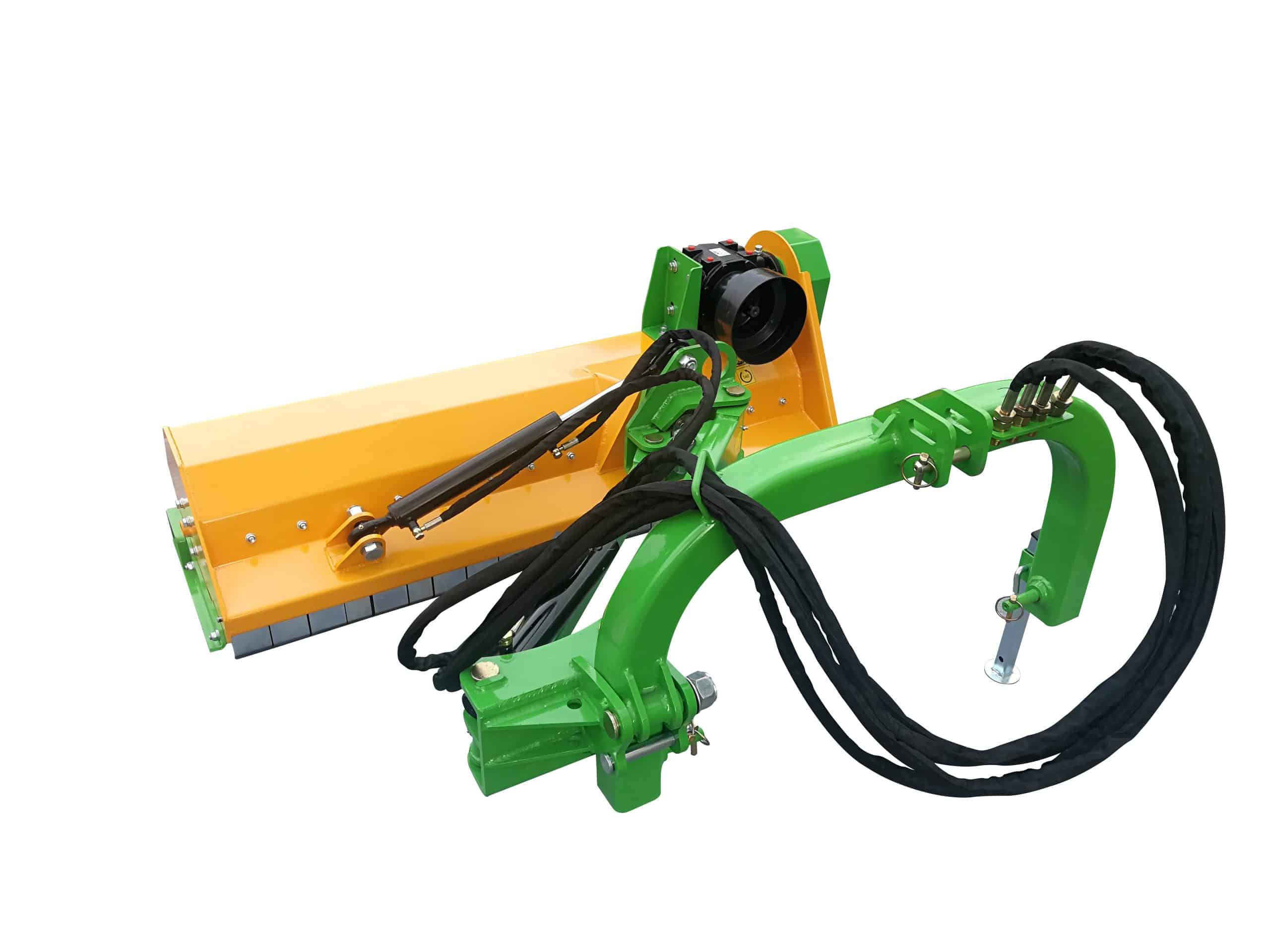

EMSD-56 Standard Duty Embankment Flail Mower for Subcompact Tractors

Check out the Victory 2020 Flail Mower Buyer’s Guide

New & Improved for 2020 from Victory Tractor Implements!

Our new standard-duty embankment mower is designed to provide professional cutting of all kinds of vegetation such as grass and undergrowth on slopes, embankments, and ditches, as well as trees and hedges.

The EMSD connects to your tractor by a CAT I 3-point hitch (it will fit most quick hitches). Your tractor should have a PTO performance of at least 25 HP. The PTO shaft speed needs to be 540RPM.

Our 2020 models feature rugged construction, an extra heavy-duty gearbox, and a spiral flail shaft.

Materials and workmanship are of the highest quality. Therefore, your purchase includes a 2 years warranty and shipping is free to your location and delivered from a liftgate truck (lower 48 States).

EMSDs are available in Working Width of 48″, 56″, and 64″

Performance:

The spiral rotor shaft with staggered flails achieves a superior cutting result. The electronically balanced shaft reduces vibration, provides for smooth running, and reduces the wear on the bearings.

While the tractor’s PTO speed should be 540 RPM, the mower turns at 2,150 RPM. The CAT I 3 point hitch fits most quick hitches.

The mower operates from a -55 degree angle (ditches) to a maximum of +90 degrees (hedges).

The maximum extension measured from the center of your tractor to the right edge of the mower is 78″!

See the EMSD Series Embankment Flail Mower in action:

Questions? Check out our blog post Everything You Need to Know About Buying a Flail Mower Online to decide if the EMSD-56 is right for you.

Click To download the User manual

Safety:

The gearbox allows the mower to turn independently once the PTO (tractor) stops moving.

The front of the mower has a protection guard to prevent material to be thrown out.

The heavy-duty construction of the mower box provides for added protection.

The mower has replaceable counter blades to minimize clogging.

PTO shaft & all hydraulic hoses are included as well as free shipping, 2 years warranty and a maximum of personalized customer service. We carry a full complement of spare parts in our warehouse.

ATTENTION

Partially assembled machines do not contain any fuel, oil or other fluids or grease needed for operation! BEFORE USING THE MACHINE please carefully read the user manual.

Not right for the job?  Check out the Victory 2020 Flail Mower Buyer’s Guide

EMSD-48 Embankment Flail Mower Standard Duty

EMSD-64 Embankment Flail Mower Standard Duty

EMHD-70 Heavy Duty Embankment Flail Mower

EMHD-78 Heavy Duty Embankment Flail Mower

Victory Tractor Implements

Proud supporters of the FFA

      MachineEMSD-48EMSD-56EMSD-64
      Tractor HP recommended20 – 50 HP25 – 50 HP30 – 50 HP
                    Working Width48 inches56 inches64 inches
                    Total Weight595 lb.640 lb.685 lb.
                    3-Point HitchCAT ICAT ICAT I
                    PTO Shaft Length63 in.63 in.63 in.
                    PTO Speed540 RPM540 RPM540 RPM
                    Drive System3 Belts3 Belts3 Belts
                    Flail Shaft Speed2,150 RPM2,150 RPM2,150 RPM
                    Nbr. Of Flails182226
                    Flails (forged steel)400 grams400 grams400 grams
                    Dim’s.(WxHxD)55x57x30 in.63x57x30 in.71x57x30 in.
                    Material Top4 mm4 mm4 mm
                    Side Walls6 mm6 mm6 mm
                    Paint (Yellow & Green )Powder Coat.Powder Coat.Powder Coat.
                    Shipping Box62x38x36 in.69x38x36 in.76x38x36 in.
                    Maximum Extensions
                    Behind the Tractor64 in.64 in.64 in.
                    Mid’ of Tractor70 in.78 in.86 in.
                    Vertical Extension52 in.52 in.52 in.
                   Length of hydraulic70/80/120/13070/80/120/13070/80/120/130
                   Slope of mowing-55 to 90 deg.-55 to 90 deg.-55 to 90 deg.
