Name: FMHDX-114 Extra Large Heavy Duty Flail Mower
Brand: Victory Tractor Implements
SKU: 17263
Availability: InStock

114″ FMHDX-114 Extra Wide Heavy-Duty Flail Mower

Introducing the Victory Tractor Implements’ FMHDX-114 extra wide, heavy-duty flail mower designed for the most extensive property maintenance needs. Compatible with large tractors ranging from 110-150 HP (PTO) and a CAT II 3-point hitch, it provides a sweeping mowing width of 114 inches. Coupled with up to 18 inches of hydraulic side shift, this mower excels in mowing and mulching grass, bushes, and saplings up to 2.5 inches in diameter, ensuring professional-grade results across very large properties.

Performance Features:

The FMHDX-114 is equipped with a professional heavy-duty gearbox rated at 75HP and features a double-skinned large mower body for enhanced stability. An electronically balanced flail shaft with an extra-large diameter of 7 5/8 inches, along with heavy-duty forged steel flails weighing 1,200 grams, ensures efficient cutting of materials up to 2 ½ inches in diameter. The mower also benefits from replaceable counter knives, promoting better mulching and faster decomposition for a clean, professional finish.

Key Features:
➤ Professional heavy-duty gearbox rated at 75HP, ensuring robust performance
➤ Double-skinned large mower body for increased durability and stability
➤ Electronically balanced flail shaft with a 7 5/8″ diameter for optimal performance
➤ Forged steel heavy-duty flails (1,200 grams) capable of cutting materials up to 2.5″ in diameter
➤ Replaceable counter knives for efficient mulching and rapid decomposition
➤ Hydraulic rear gate for simplified cleaning and flail replacement

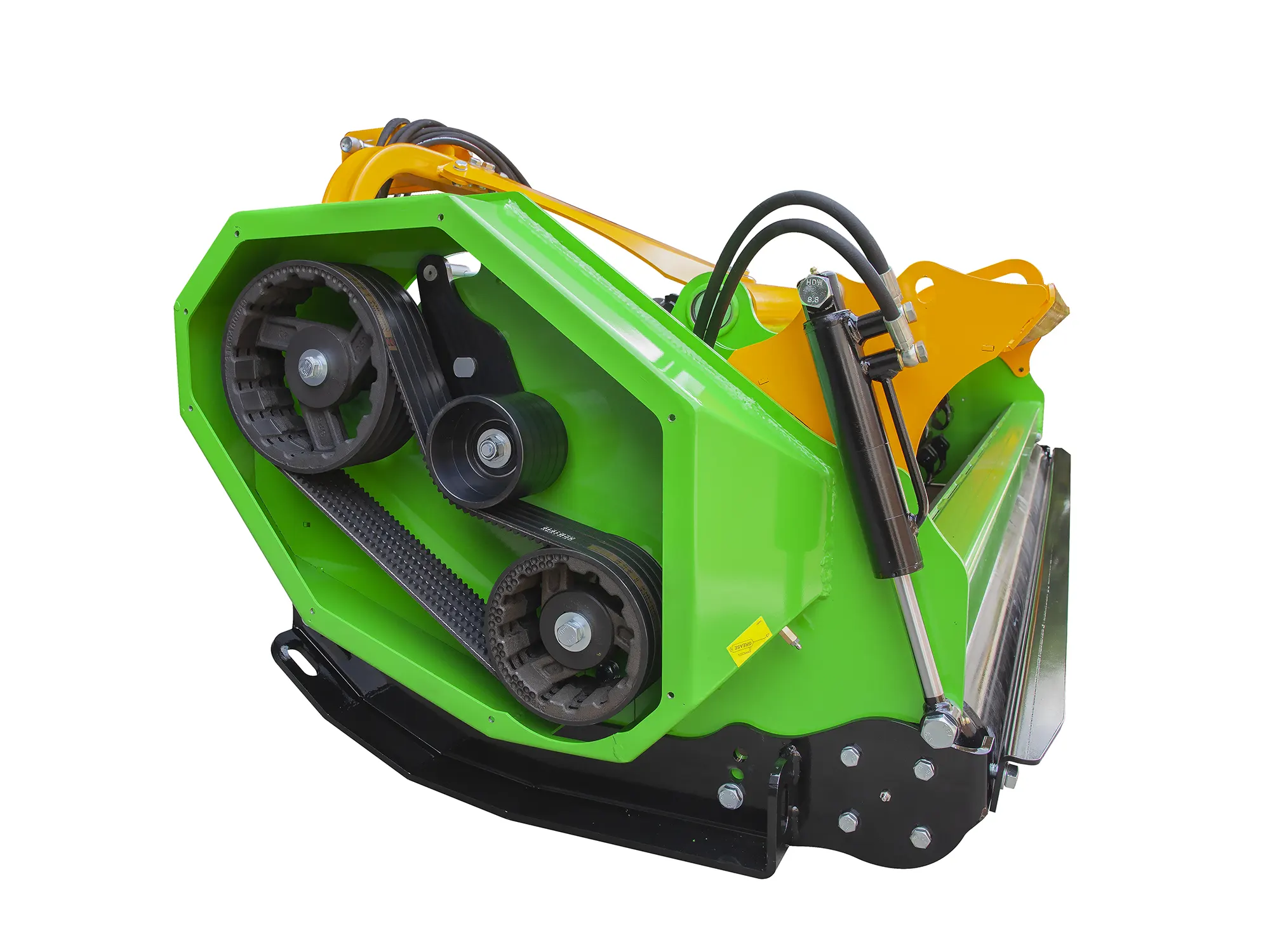

➤ Externally accessible belt tension for easy maintenance adjustments

PTO shaft included
Free Shipping
2 Years Warranty

Designed with durability and versatility in mind, the FMHDX series features a heavy-duty gearbox and a hydraulic rear gate that streamline maintenance while enhancing performance. Its robust construction and comprehensive safety features, such as a front guard to prevent debris ejection and a heavy rear roller for consistent performance in rough terrain, make it a reliable tool for comprehensive land management.

Safety Features:

➤ Double-skinned mower body for added safety and stability
➤ Professional gearbox allows independent knife shaft rotation, reducing tractor vibration
➤ Front guard prevents debris ejection, enhancing operator safety
➤ Heavy rear roller (7 1/2″ Diameter) for smooth operation across uneven terrain
➤ Externally adjustable belt tension for straightforward maintenance

ATTENTION: Machines are delivered partially assembled and do not contain any fuel, oil, or other operational fluids. To ensure safe and effective operation, it is critical to read the user manual carefully before using the machine.

With its comprehensive design focused on performance, safety, and ease of maintenance, the 114″ FMHDX-114 Extra Wide Heavy-Duty Flail Mower stands out as an essential tool for those needing a high-quality, reliable mower for managing exceptionally large areas.

Frequently Bought Together…

Reviews

There are no reviews yet.

Be the first to review “FMHDX-114 Extra Large Heavy Duty Flail Mower”

FMHDX Series User Manual (opens in a new tab)

Additional information

Weight	986 kg
Dimensions	123 × 41 × 59 cm
Lift Gate Needed	No, No Liftgate

Gerald Mckenney

01:29 05 May 24

Arrived in less than a week, well packaged and works as advertised.

Matt Moore

19:20 12 Apr 24

Just received my 64 Heavy Duty Flail mower.1. They answered the phone when I called, and answered my questions.2. Shipped free, with good tracking along the way.3. Arrived on the date they estimated, with very little assembly.4. Great price.They were not my first choice, but out of the three I was considering they were the only ones to answer the phone right away and walk me through some details. The whole transaction was seamless. Glad I found them. I will buy from them again.

Raymond Dalton

13:52 10 Apr 24

John Heathcote

01:23 07 Apr 24

Great product! Even more heavy duty than I expected. Will last for many years.

Ethan Russell

15:31 17 Dec 23

We would definitely recommend. The hydraulic snow plow, that we ordered, arrived ahead of schedule and very well packaged. Very professional group and capable group. American know how on display.

Eric James

12:50 24 Jul 23

Unit very well built shipped as quoted and crated well.I like the design with the gearbox outside of the mower as it keeps the shaft less acute when offset.spiral shaft is a plus in regard to staying in balance broke one grease zirk Brass? all in all very happy!!

Bonnie Romanski

15:45 26 Jun 23

Well built, easily assembly.

Jeff Sweeting

21:38 25 Jun 23

Awesome experience! From the ordering process to the shipment, everything was as they said it would be. Setup was easy, only had one hiccup with infeed roller direction , called them and it was taken care of in literally 10 minutes. Great product, great service, great people!! Will buy from again in a heatbeat!!Jeff Sweeting,WWA Farm & Garden ServicesAlfred , ME 04002

Wirenut 901

21:16 24 Jun 23

Very happy with my new Victory flail mower. I had a couple of minor fitment issues but nothing an angle grinder and a drill couldn't fix. This mower is a beast weighing in over 1,000 lbs. Very heavy duty. I couldn't be happier especially when it was half the price of the name brands. The guys at Victory picked up the phone every time I called and were eager to answer my questions. Thanks Victory !

Johnny Rhew

22:20 21 Jan 23

Adjusted the blade clearance after a few jams. No problems now. Heavy built and chips 4 inch no problem. Would probably handle the 5 inch. Very satisfied.

Richard Helms

20:49 17 Nov 22

The EMID-70 embankment mower arrived in a metal cage on a wood pallet. The mower and accessories arrived in good condition.The assembly was easy and straightforward. After assembly, all bolts and connections were verified tight and the gearbox was filled with 80W90 oil and all fittings greased. Hooking up to the tractor was made easy using the two parking stands that come with the unit. Once attached to the three point hitch the hydraulic hoses were connected using the hoses and fittings supplied. Once the hydraulic system was filled and the air bleed out it was time to work. The mower was ran for about 10 hours in all positions from 90 degrees up to 30 degrees down with no problems. After mowing the field the mower was used to trim the limbs that were encroching on the field.Suggestions for the shipping cage are add a middle bar between the upper and lower part of the cage and use locking bolts on the assembly as a few were loose or missing. The mower and accessories had shifted and fallen out and came on a wood pallet added bt the freight company.

James Allred

10:52 19 Sep 22

Product came in very quickly. For the price I expected much less quality. Instead the quality seems really good and it does a great job in grass or brush. Very happy with it.

d k

11:28 17 Sep 22

I bought an EMSD-56 Embankment Flail Mower Standard Duty. I pre-ordered it in February. This had to be one of the most difficult years ever as China still had a zero covid policy. As soon as the mower was set to ship the port of Shanghai closed for over 2 months so delivery could not be made as agreed. I was offered a refund or an additional discount at that time. I opted for the additional discount. It took a while but finally the mower made it's way to me and it works fine. What I can say is that the team at this business is totally fair and extremely trustworthy. I would use them again for another implement.

Tom Mayes

17:40 10 Sep 22

Purchase of Flail mower was simple, arrived in good condition and assembly was straight forward. The only issue was it was set up for Cat 2 rather than Cat 1 but that was handled quickly with a new set of pins which were mailed to me and arrived within 3 days. Mower has been used only once to mow about 2 acres and worked well

Ryan Talsma

11:25 31 Jul 22

Just bought the emid-64. No assembly instructions included but got it done. I have used it for about 2 hours now. Very nice unit, cuts great, heavy duty with grease fittings on all moving points. Smooth operation and comes with flow control so no jerky operation. Great so far... I did find that on the website has a full manual including assembly instructions..

Harold Weaver

15:44 29 Jul 22

Happy with my 60” tiller. Lot of tiller for the price. Had an issue with pto shaft but they have great customer service. Thanks again Uwe.

Joe Bell

23:20 17 May 22

Great people to deal with. I have the 78” flail mower and I love it. It gives a clean cut and runs smoothly.

Michael Treffinger

22:51 23 Apr 22

I purchased the BX42S wood chipper. Shipping was quick and well crated. I've used it now for over 15hrs and it works perfectly! I cleared woods for a motorcycle track and now I use this to clean up and help loosen up the soil with the mulch it creates. Well worth it!

Joe Buckingham

17:53 26 Mar 22

The BX42S wood chipper was received in early March. The unit was packaged in a heavy cage to help prevent shipping damage. After assembly I connected unit to my tractor and started using it. It has been able to handle any branches that I put into it up to about 4 1/2 inches. I would recommend this unit to anyone that needs a wood chipper.

Frank Perugini

01:35 15 Nov 21

Dealing with Ryan B. of Victory Tractor Implements was a pleasure. Everything Ryan said was truthful and correct. Shipment was a breeze Ryan supplied me with the tracking info and I was able to see where and when I would receive my chipper. Thanks again Frank

Brian Adams

17:51 30 Oct 21

I bought the 56" embankment flail mower and couldn't be more satisfied. Works like a champ. Delivery was quick and assembly was easy. I would highly recommend this company and mower.

Kelly Smith

17:15 10 Oct 21

Uwe is super helpful. Great product, great price. New flail makes my place look a lot nicer as I can mow vertically and keep the brush back and neat!

Ken Love

20:44 09 Oct 21

Prompt delivery…Awesome EMSD-56 flail mower, Awesome Support.. Since I never owned a flail mower, I had questions regarding what turned out to be normal operational sounds, etc. I was reluctant to call, but I must say the person that answered the phone was very knowledgeable of the product and treated me with the the utmost respect and kindness.Mower works great and far exceeds expectations!!Thank You Victory Tractor for an Awesome Experience!!!

Dale Walter

16:15 13 Jun 21

Great wood chipper at a great price!My 23 Hp Massey Sub Compact handles this beautifully, up to 4".Would highly recommend to a friend.

S R

19:58 22 May 21

My BX42S has exceeded my expectations. Hooked up to my Kubota 26hp tractor it chips 5 inch pine without any problem. 5 inch hardwood goes in my wood stove so I have not tried that. Communication with the company is excellent. Thanks Victory!

Ryan Getchell

07:46 15 Apr 21

I just recently purchased the MDWC1500 wood chipper from Victory Tractor for cleaning up around the overgrown fields of our farm, arrived on time, setup was easy, very well built and rugged chipper! It has no problem chipping 3inch diameter brush. What a great investment for cleaning up around the farm! It did come with a damaged drive belt but a phone call to my local auto parts store and they had the belt in stock. For the price I highly recommend this machine to any small farm/homeowner

Doug McCracken

21:37 06 Feb 21

I have the BCRL 145 on a 30 HP Kubota, I mow several banks around my property, and a walking trail around 72 acre field. best mower I ever used.

RW REYNOLDS

13:09 15 Jan 21

Great prices , didn't get my flail mower from them but they knew exactly what parts I needed , very helpful, will be back when I need more parts!!

Greg Davis

22:56 06 Sep 20

It is a pleasure working with the staff at Victory. We purchased an offset flail mower from them several years ago for mowing the berms of our rail-trail and it is holding up well and does a nice job We needed to replace a lost tooth on the mower and got the replacement parts quickly.

Raymond Paullin

21:09 17 Aug 20

Excellent transaction from start to finish. Uwe was prompt responding to questions, my plow shipped in great shape and I'm ready for winter.

Offshore Explorer Scott Dodgson

21:11 07 Apr 20

Uwe was very helpful and professional. Great guy to do business with!

Machine	FMHDX-94	FMHDX-102	FMHDX-114

Working Width	94 inches	102 inches	114 inches
Hydraulic Side Shift	18 inches	18 inches	18 inches
Tractor Power (PTO)	80-120 HP.	80-120 HP	110-150 HP
Gearbox rated at	75 HP	75 HP	75 HP
3-Point Hitch	CAT II	CAT II	CAT II
PTO shaft length	47”	47”	47”
PTO Type	Safety Shear Pin	Safety Shear Pin	Safety Shear Pin
PTO Shaft Speed	540RPM	540RPM	540RPM
Drive System	5 Belts	5 Belts	5 Belts
Flail Shaft Speed	2,250 RPM	2,250 RPM	2,250 RPM
Flail Shaft Diam.	7 5/8 inches	7 5/8 inches	7 5/8 inches
Flails forged/galv.	1,200 grams	1,200 grams	1,200 grams
Number of Flails	20	22	24
Housing Material	4 + 4 mm	4 + 4 mm	4 + 4 mm
Side Walls	6 + 4 mm	6 + 4 mm	6 + 4 mm
Paint (green/yel.)	Powder Coated	Powder Coated	Powder Coated
Total Weight	1,962 lb.	2,050 lb.	2,175 lb.
Dimensions	103x41x59 in.	112x41x59 in.	123x41x59 in.
