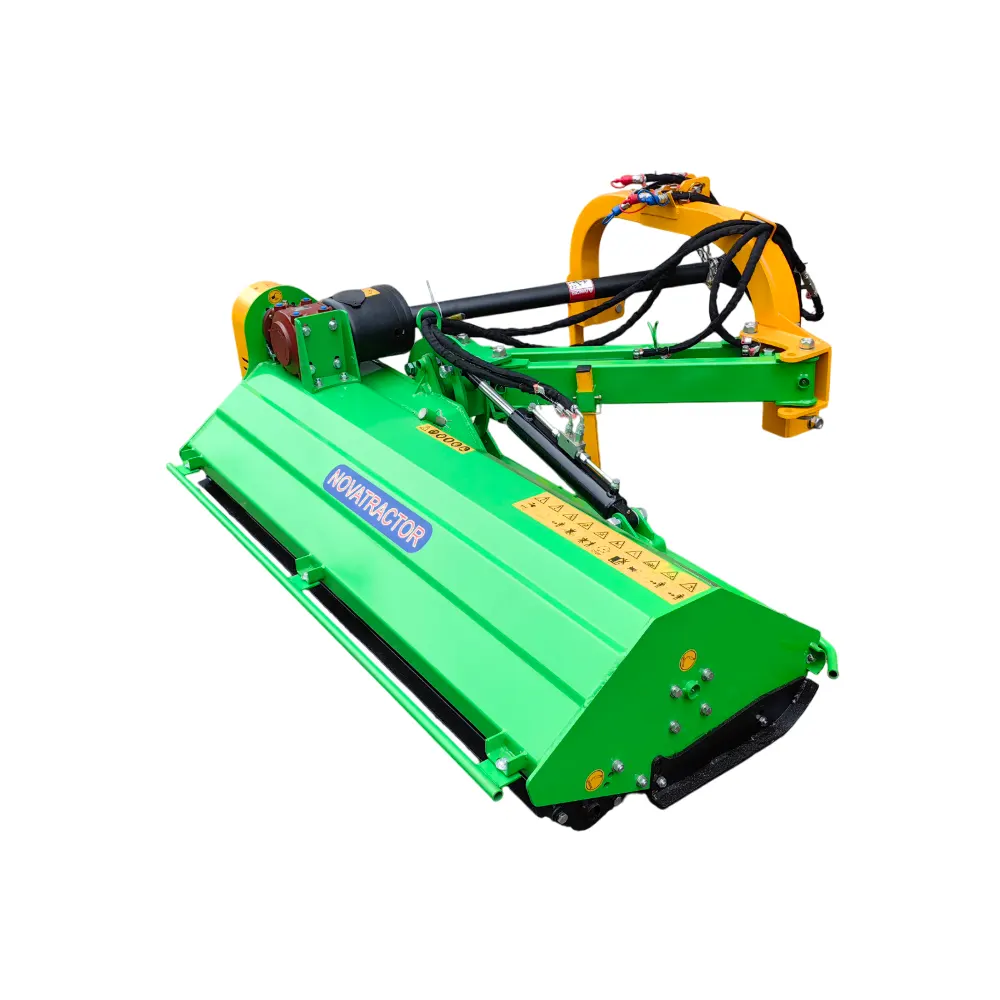

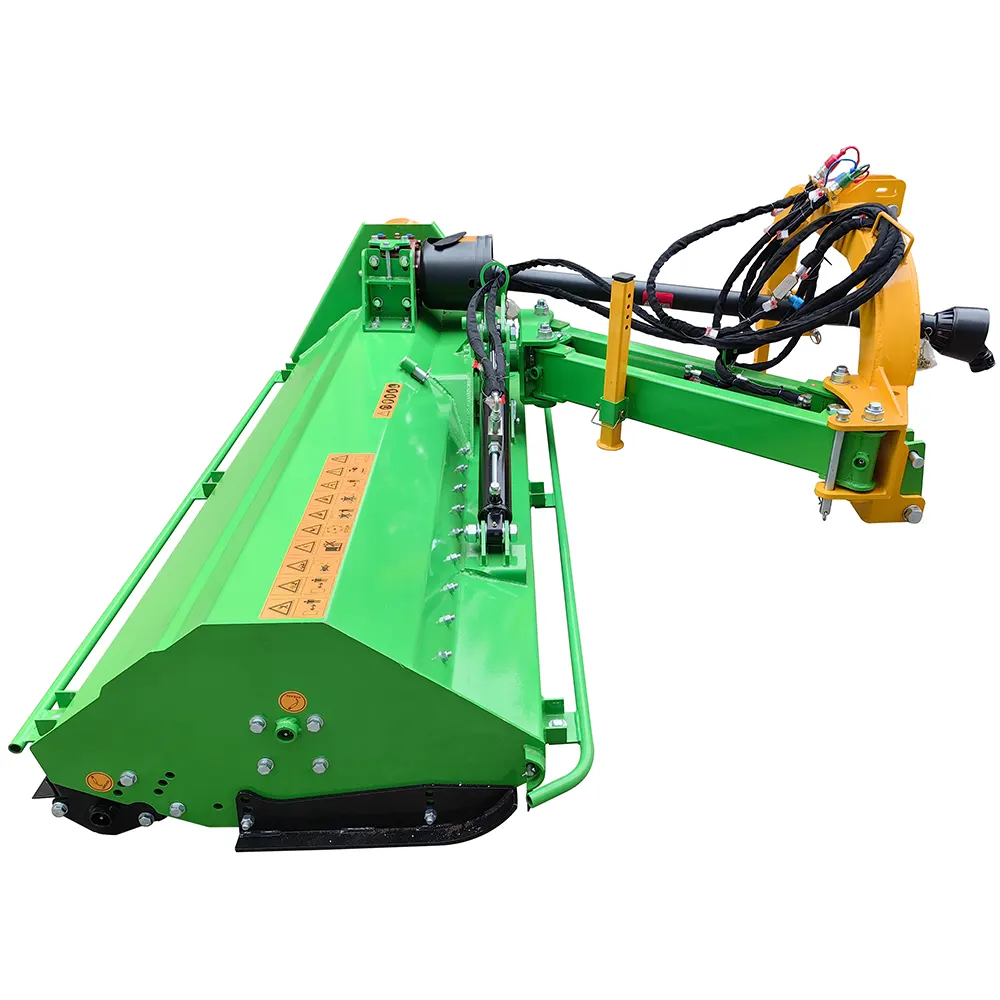

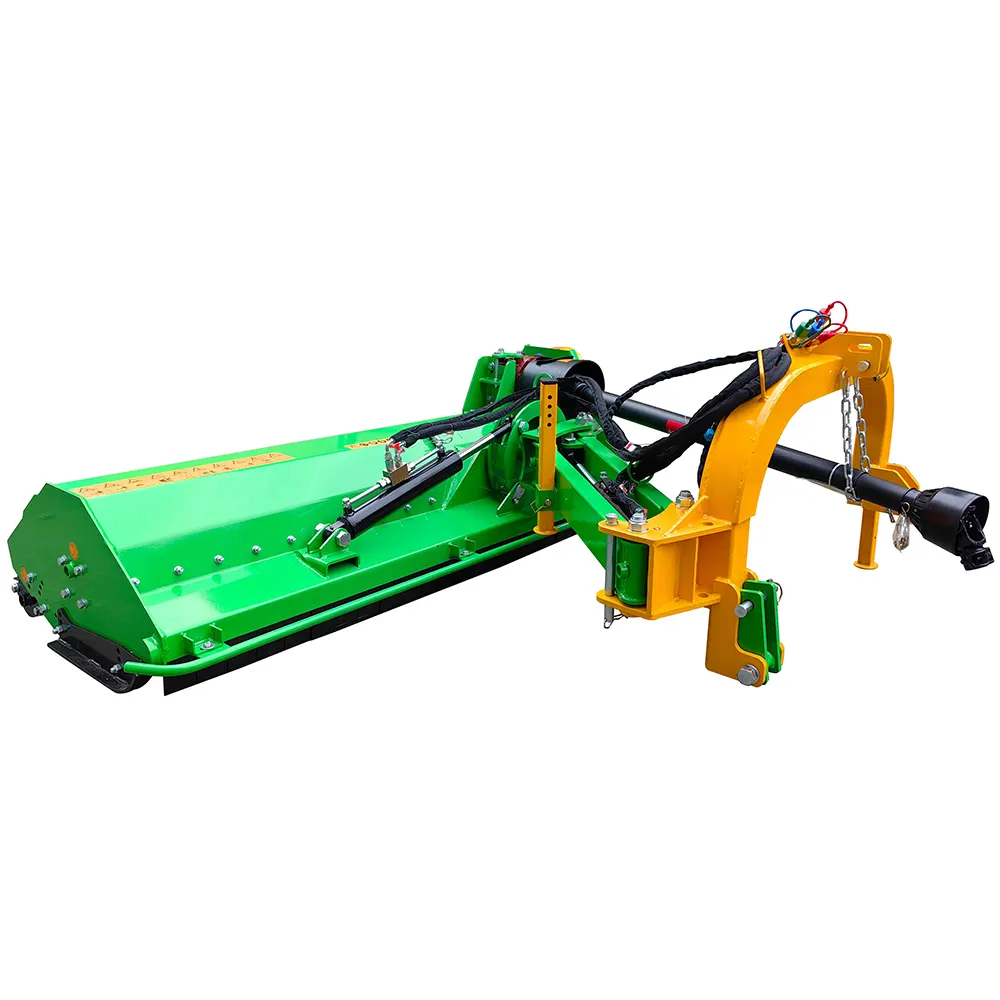

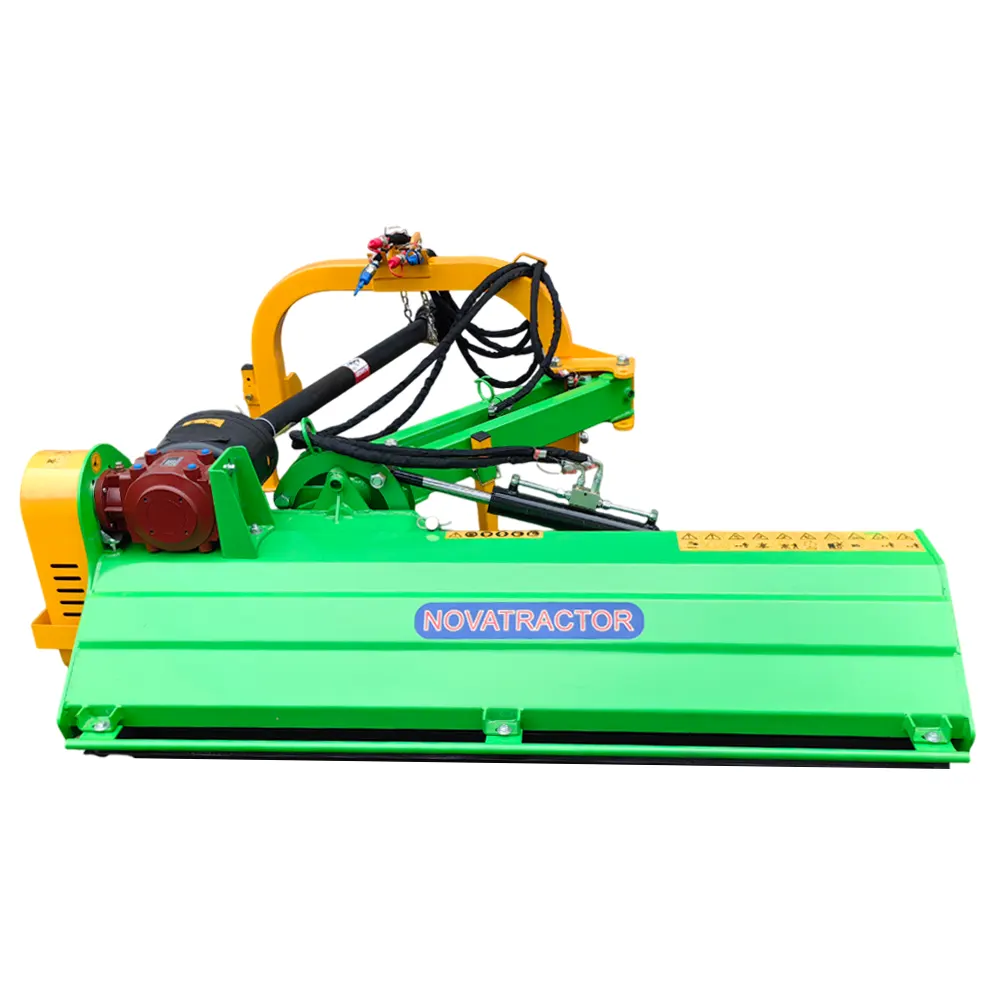

BCRM-155 Medium Duty 3 Point Offset Ditch Bank Flail Mower

Tackle ditch, bank, and roadside mowing with the BCRM-155 Ditch Mower, designed for 40–55 HP tractors. With a 61″ cutting width, 43″ hydraulic side‑shift, and a -60° to +90° angle range, this mower reaches up to 86″ from the tractor center.

Built with 800g forged hammer flails, a Comer gearbox, and an electronically balanced 2200 RPM rotor with SKF ball bearings, the BCRM‑155 delivers clean, efficient cuts on tough terrain. The rear roller adjusts cutting height from 0.75″–2.95″, while integrated safety valves prevent sudden drop during lowering and transport.

PTO shaft included
Free Shipping
2 Years Warranty
Store Rating
Satisfied Customers
Warranty
2 Year Warranty
Free Shipping
Free Shipping
FREE Shipping
2 Year Warranty
Satisfied Customers
30-Day Returns

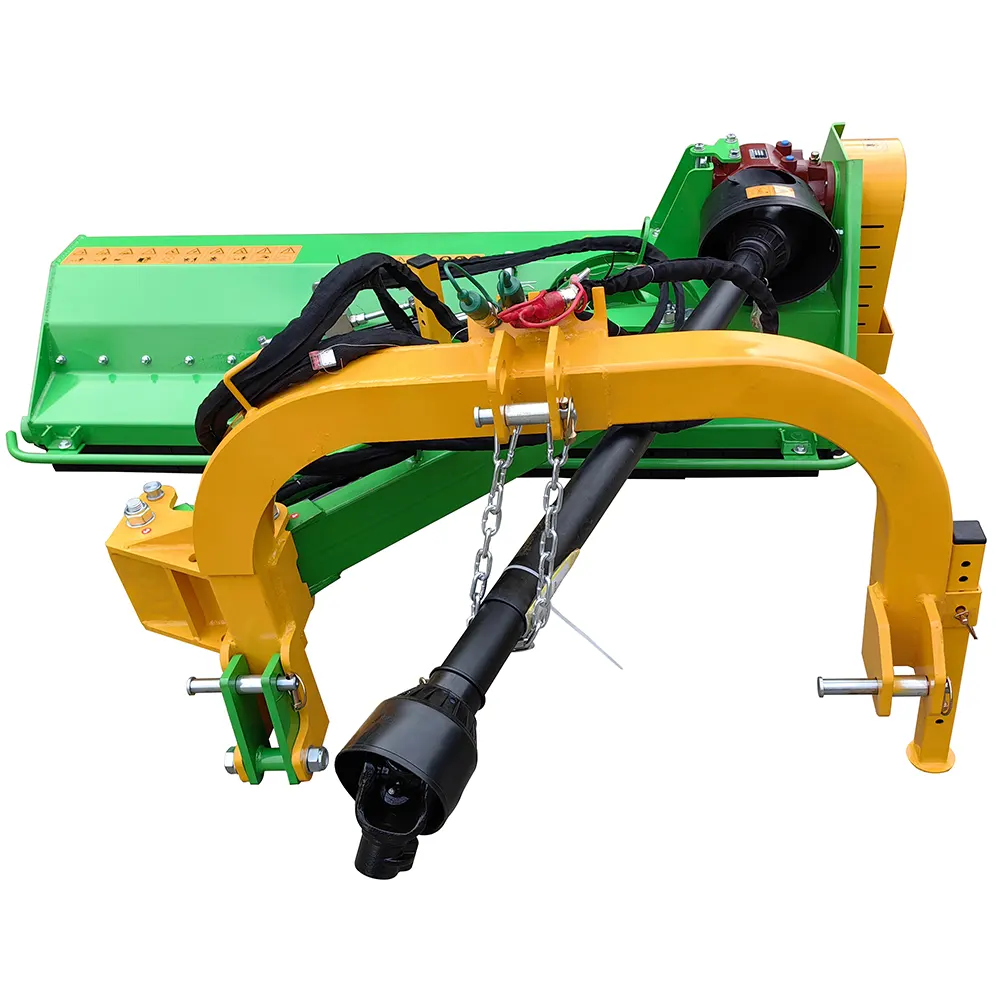

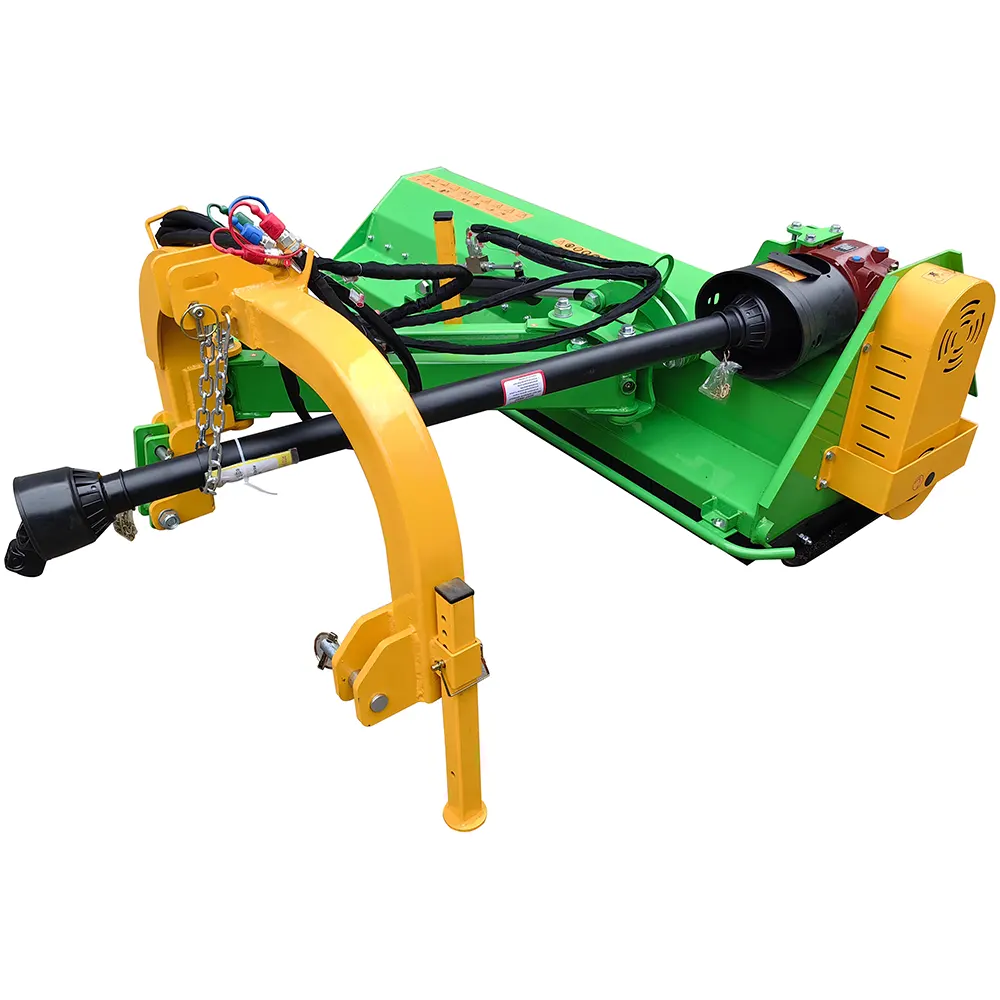

The BCRM‑155 Medium Duty Ditch Mower is built for 40–55 HP tractors with CAT I/II three‑point hitch. It offers a 61″ cutting width, 43″ hydraulic side‑shift, and a full -60° to +90° mowing range, making it ideal for ditch banks, hedgerows, and challenging roadside applications. The mower can extend up to 86″ horizontally and 52″ vertically from the tractor’s center, providing outstanding reach.

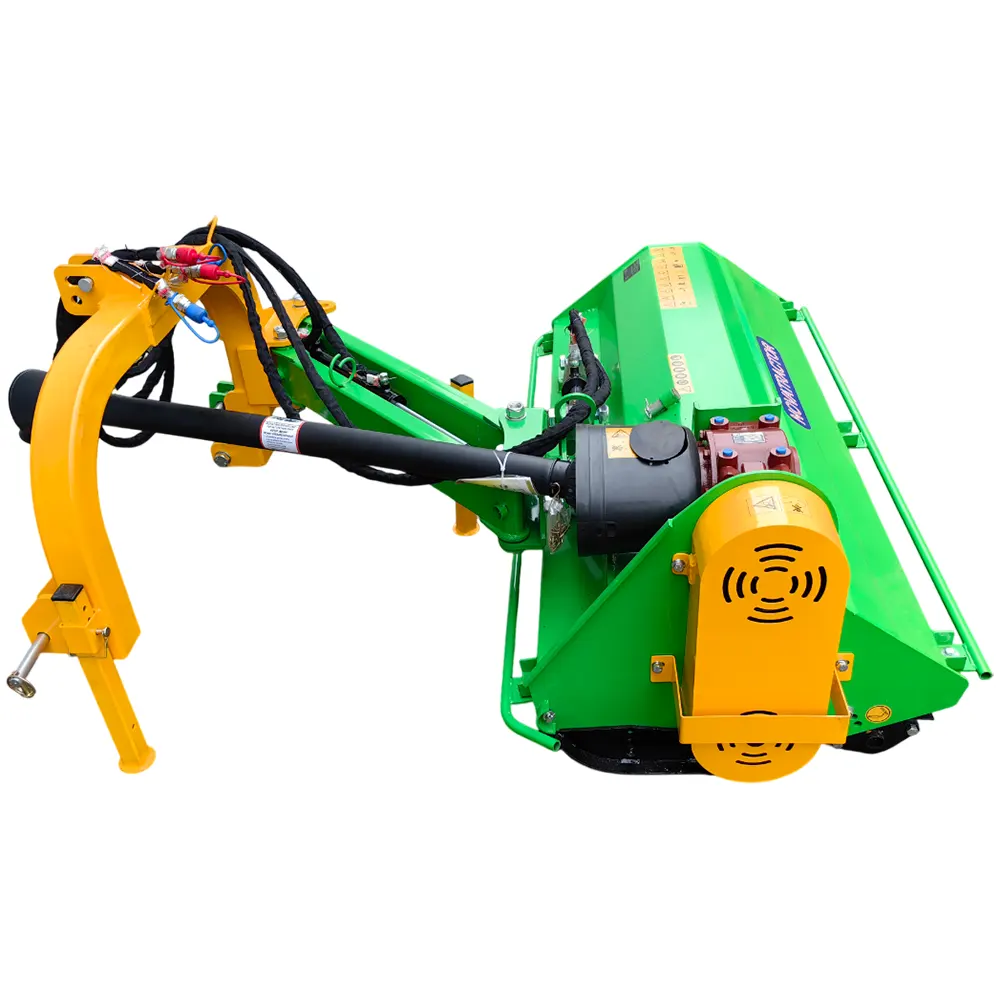

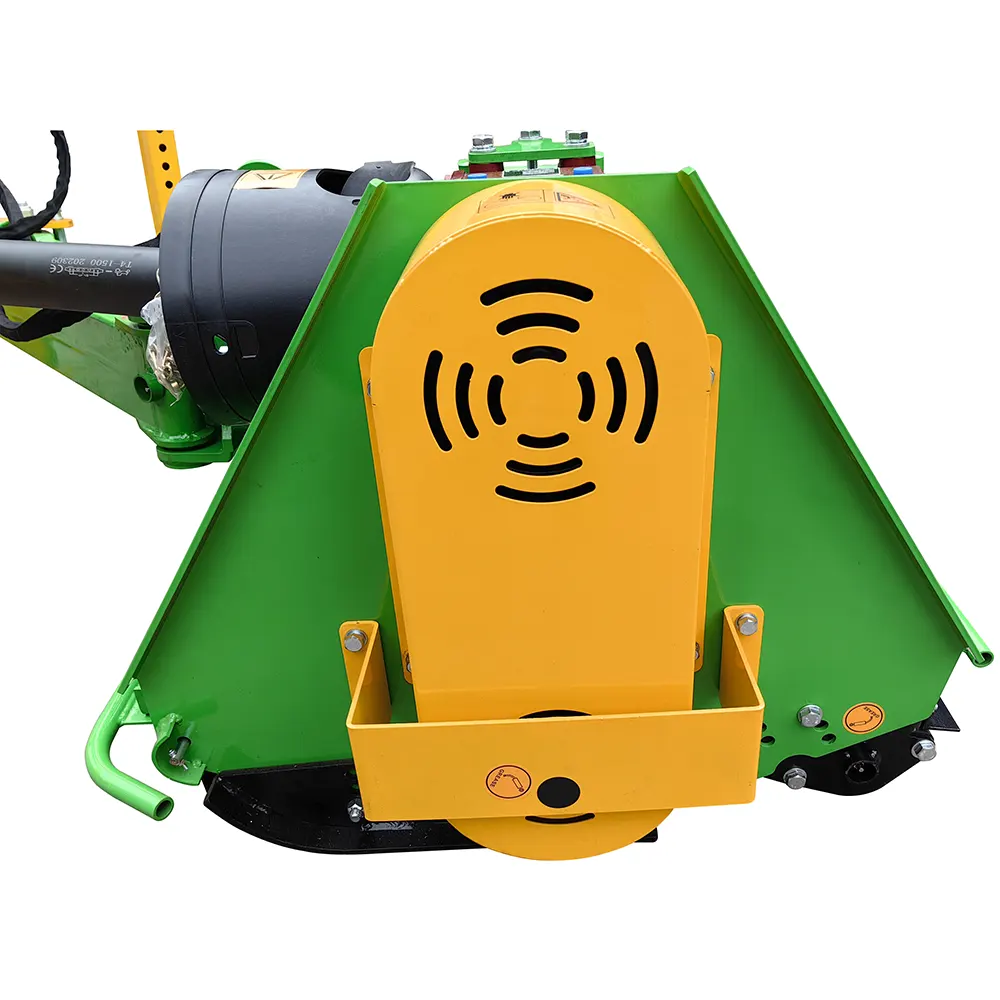

The BCRM‑155 uses 800g forged hammer flails mounted on a 2200 RPM electronically balanced rotor powered by a 3‑belt drive system with SKF ball bearings and CNC bearing seats. This setup, combined with the Comer gearbox, ensures exceptional mulching performance and virtually zero belt slippage. The mower’s rear roller is fully height‑adjustable (0.75″–2.95″), maintaining even cutting on uneven terrain.

Safety is built‑in with dual safety valves that prevent the mower from dropping too quickly during lowering. Integrated transport lock pins keep the unit secure while in transit. The replaceable counter knife and front safety flaps help maintain optimal chopping performance while minimizing debris ejection.

Packaged in a solid wooden crate, the BCRM‑155 is shipped partially assembled. Once connected to two double‑acting hydraulic circuits, it can deliver 1.5–3 acres/hour productivity, making it one of the most efficient ditch mowers in its class.

PDF Icon

Product Manual (PDF)
BCRM-155 Product Manual.pdf

Tractor Power

Tractor Power
Optimized for 40–55 HP tractors, compatible with CAT I/II three‑point hitch.

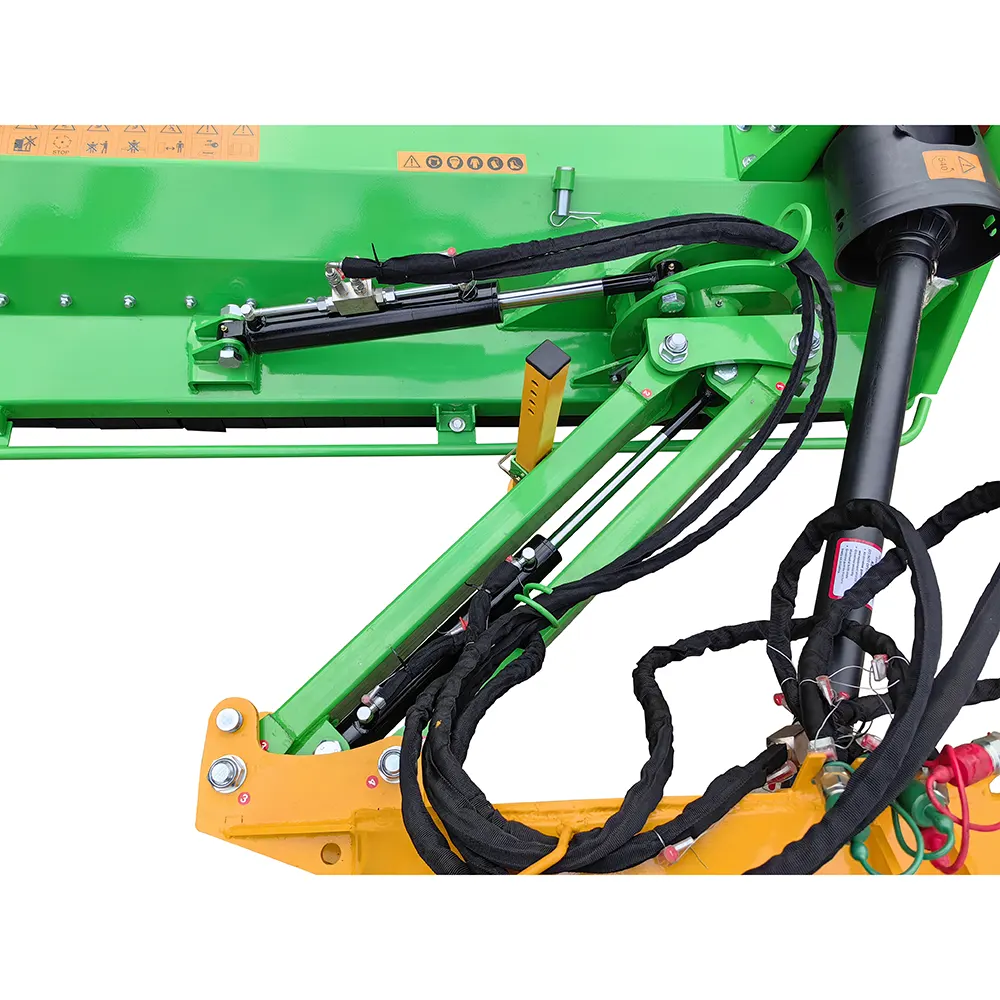

Hydraulic Side-Shift

Hydraulic Side-Shift
43″ hydraulic side‑shift and a -60° to +90° angle range provide maximum reach.

Forged Hammer Flails

Forged Hammer Flails
800g forged hammer flails provide high‑performance mulching on heavy vegetation.

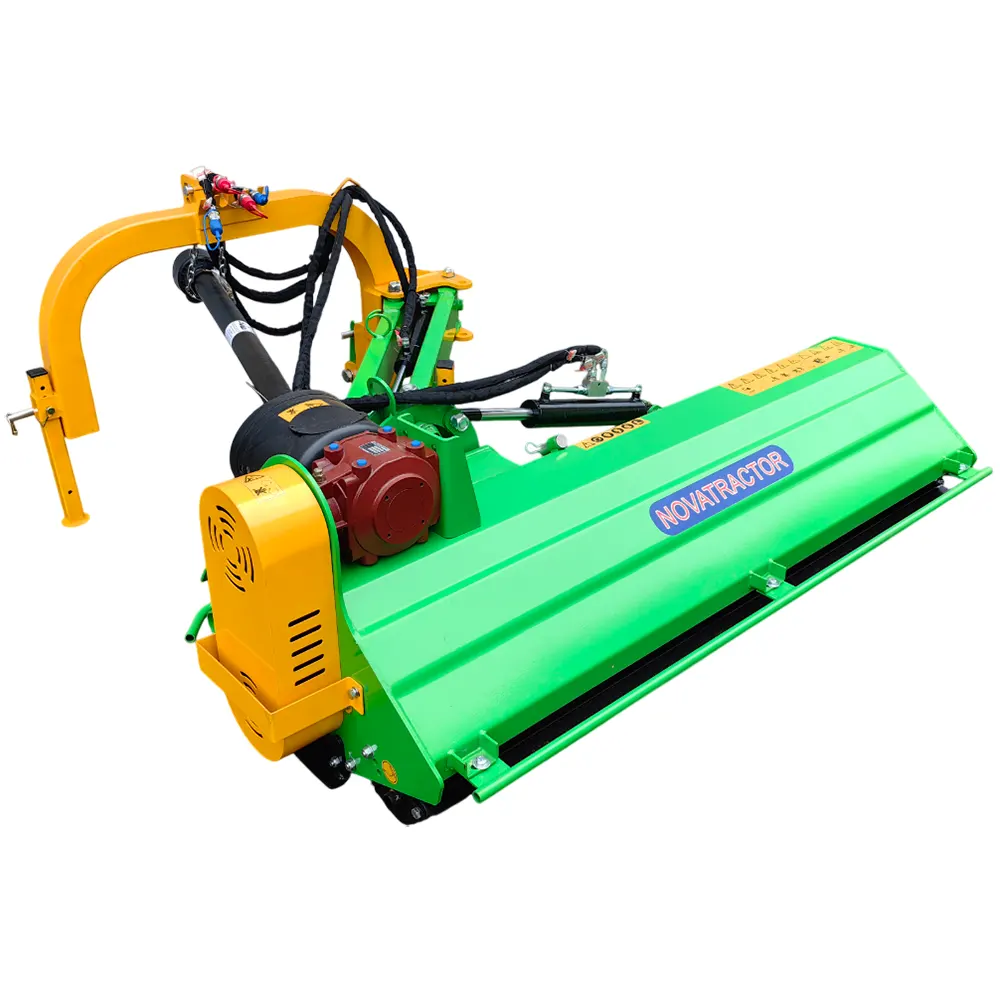

Comer Gearbox

Comer Gearbox & Bearings
Heavy‑duty Comer gearbox and SKF rotor shaft bearings ensure long‑lasting performance.

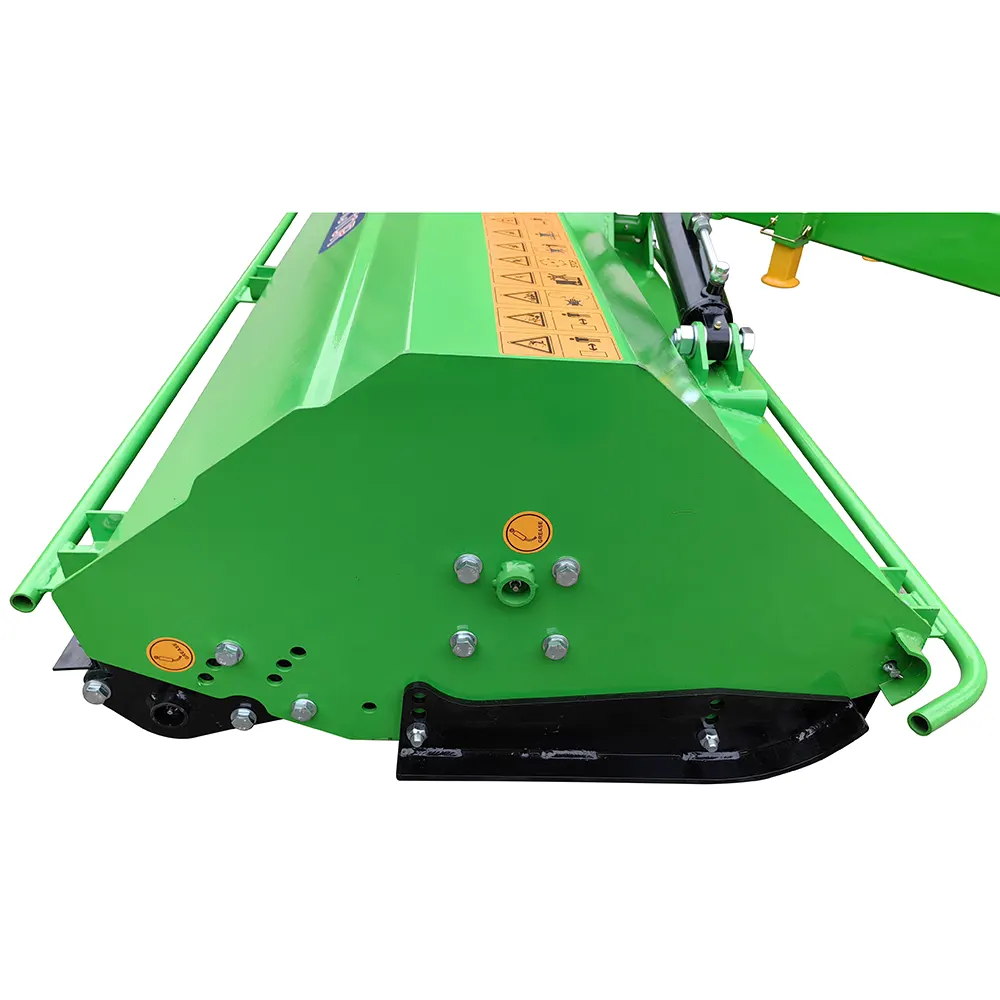

Heavy Duty Rear Roller

Heavy-Duty Rear Roller
Ball‑bearing rear roller prevents scalping and adjusts cutting height from 0.75″–2.95″.

Replaceable Counter Knife

Replaceable Counter Knife
Integrated counter knife and front safety flaps improve efficiency and operator safety.

Two-Year Warranty

The BCRM-155 Standard Duty Flail Mower (SKU: VTI-BCRM155) has been rigorously tested to withstand tough conditions and includes a two-year warranty on the machine.
Learn More

PDF Icon

Parts Guide (PDF)
BCRM-155 Parts Guide.pdf


Tractor Diagram TRIM TORQ TANK
ABCDEFGH

Technical Data
BCRM-155
Dimensions (LxWxH)
67″ x 67″ x 24″
Total weight
950 lb
Cutting width
61″
Adjustable mowing height
0.75″ – 2.95″
Hydraulic side movement
43″
Max. range from middle of tractor (horizontal)
86″
Max. range from middle of tractor (90° hedge trim)
52″
Slope mowing ability
-60° to +90°

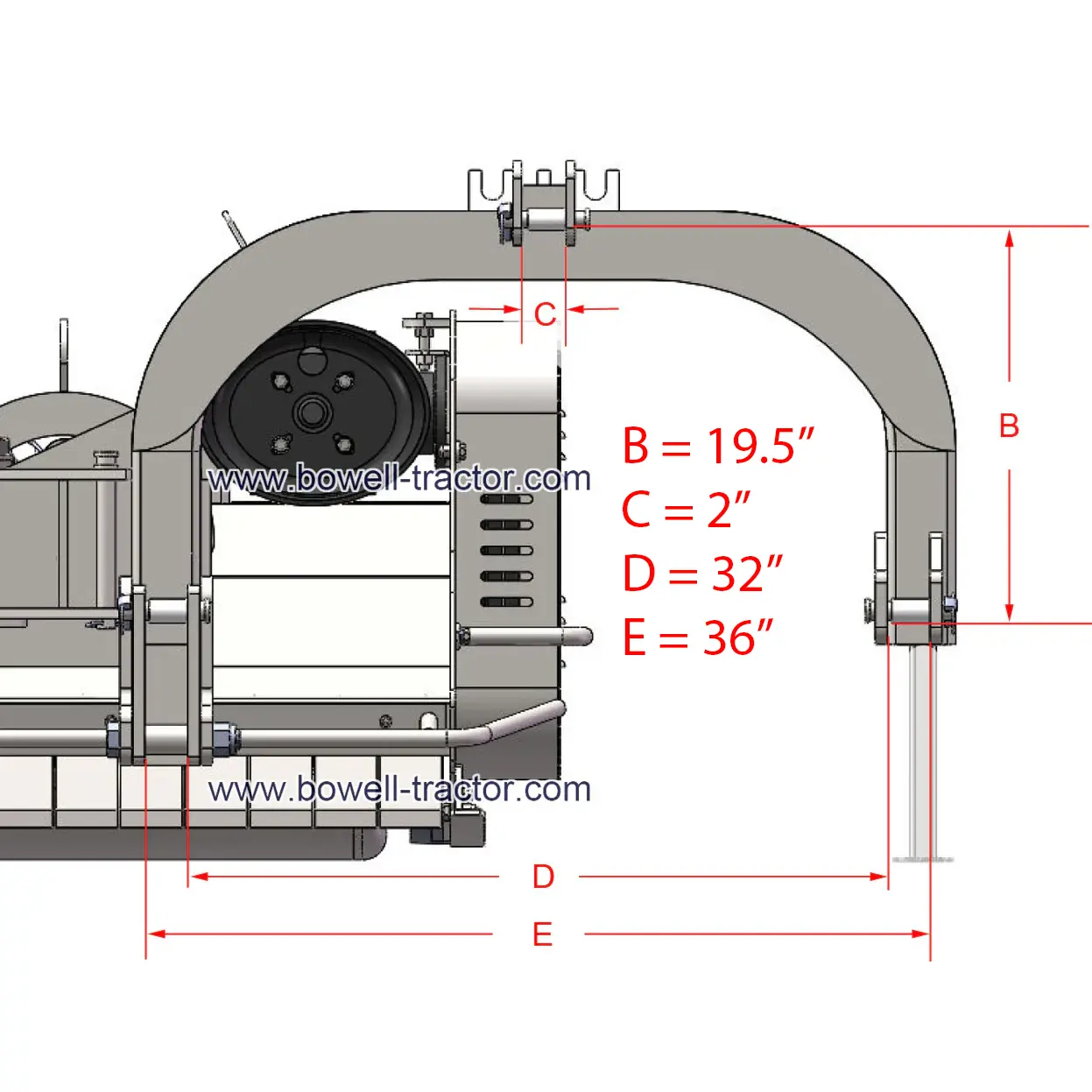

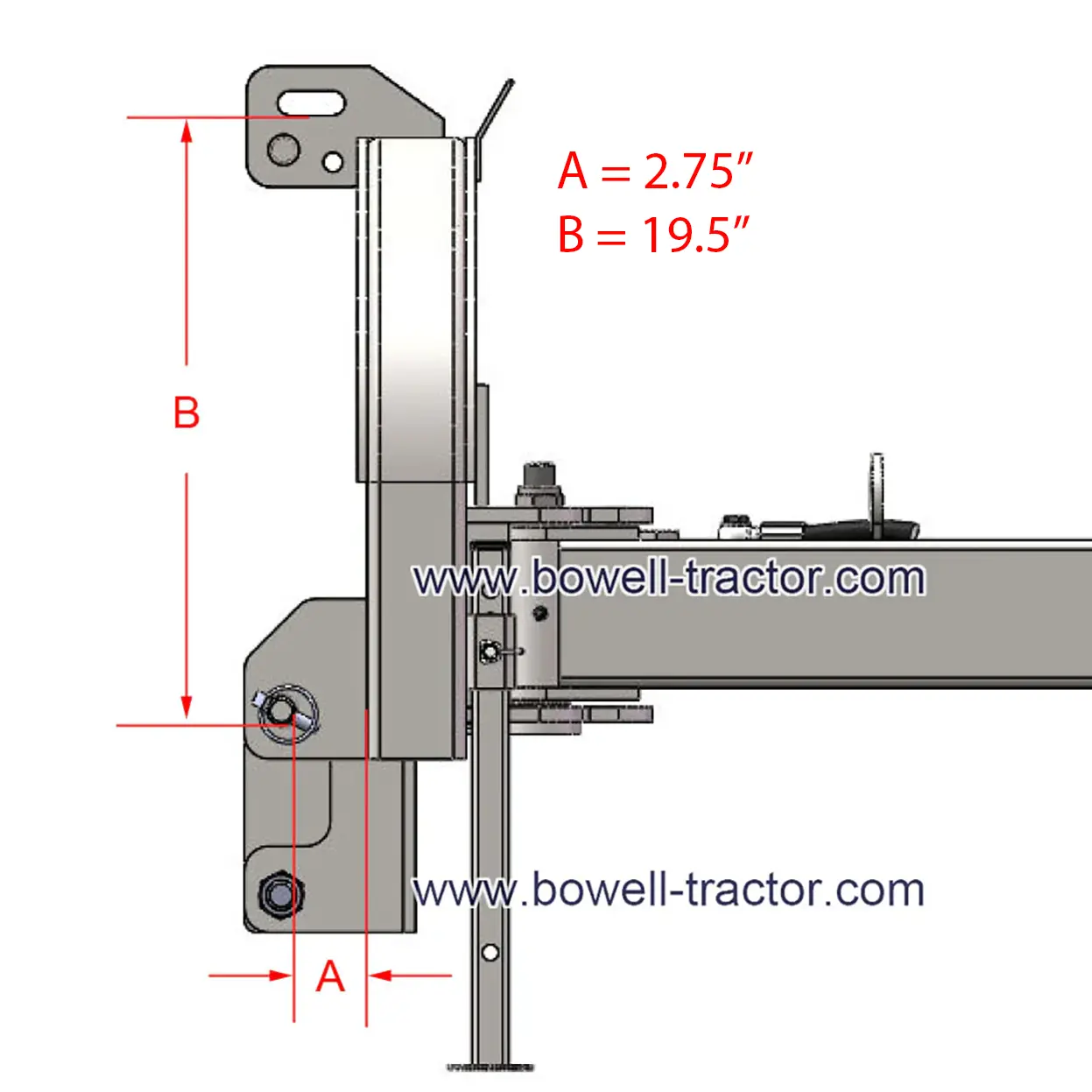

3-point hitch
CAT I/II (bushings included)
PTO shaft speed
540 RPM
PTO shaft length
59″
Total length of hydraulic pipes
121″ / 131″
Working efficiency per hour (approx.)
1.5 – 3 acres
Drive system
3-belt system
Tractor engine power recommended
40–55 HP / 30–41 kW
Material strength (flail shaft cover)
0.15″ (4 mm)
Material strength (side walls)
0.23″ (6 mm)
Flail type
Hammer
Number of flails
24
Weight per flail
800g
Rotor (flail shaft) speed
2200 RPM
Painting
Powder coated
Wooden transport box (LxWxH)
64″ x 37″ x 33″
