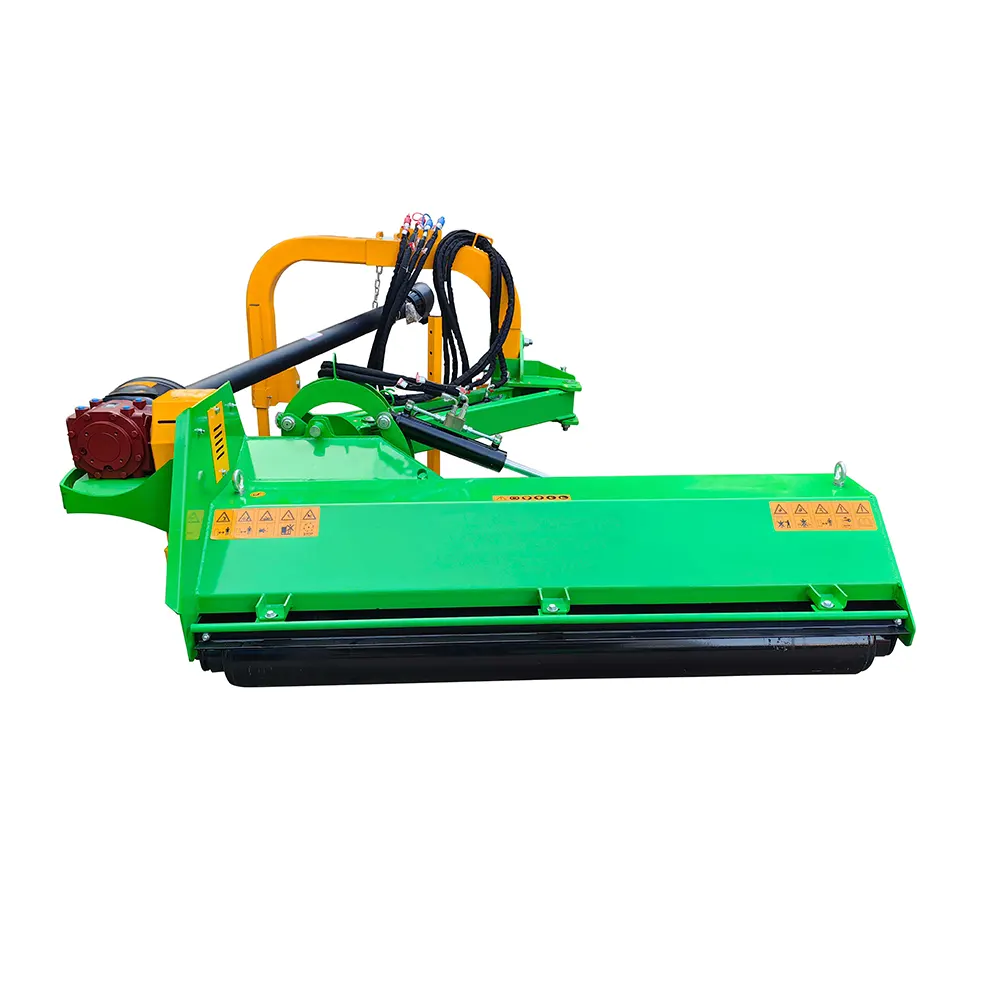

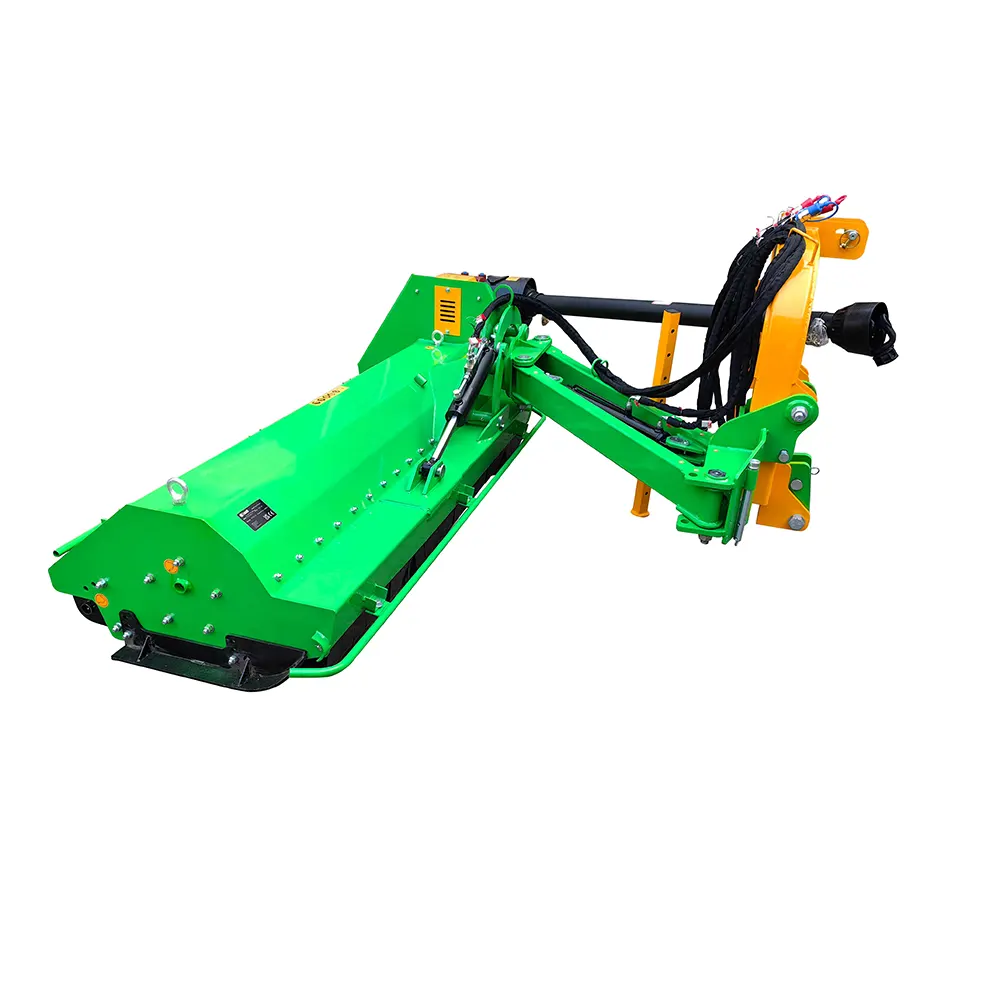

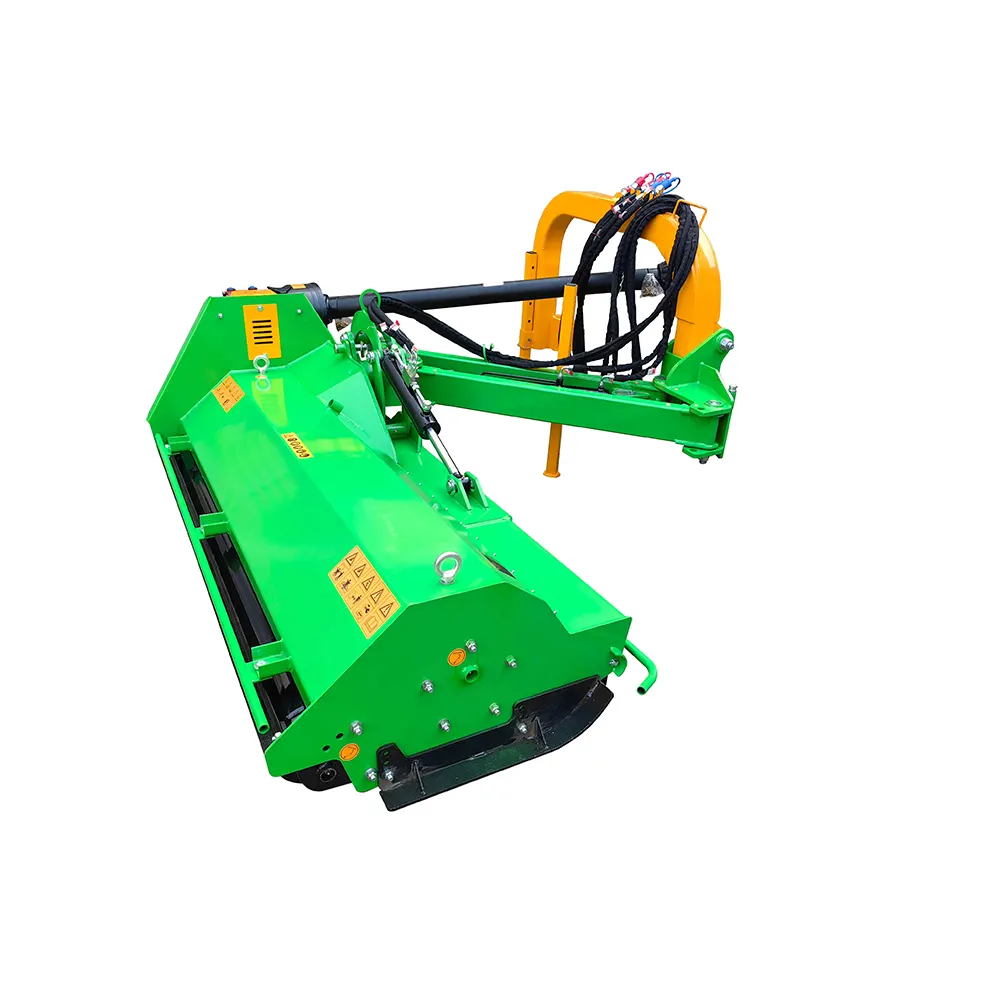

BCRI-220 Heavy Duty 3 Point Offset Ditch Bank Flail Mower

Tackle ditch, bank, and roadside mowing with the BCRI-220 Ditch Mower, designed for 60–90 HP tractors. With a 86″ cutting width, 60″ hydraulic side‑shift, and a -60° to +90° angle range, this mower reaches up to 134″ from the tractor center.

Built with 1300g. forged hammer flails, a Comer gearbox, and an electronically balanced 2150 RPM rotor with SKF ball bearings, the BCRI‑220 delivers clean, efficient cuts on tough terrain. The rear roller adjusts cutting height from 0.75″–2.95″, while integrated safety valves prevent sudden drop during lowering and transport.

PTO shaft included
Free Shipping
2 Years Warranty
Store Rating
Satisfied Customers
Warranty
2 Year Warranty
Free Shipping
Free Shipping
FREE Shipping
2 Year Warranty
Satisfied Customers
30-Day Returns

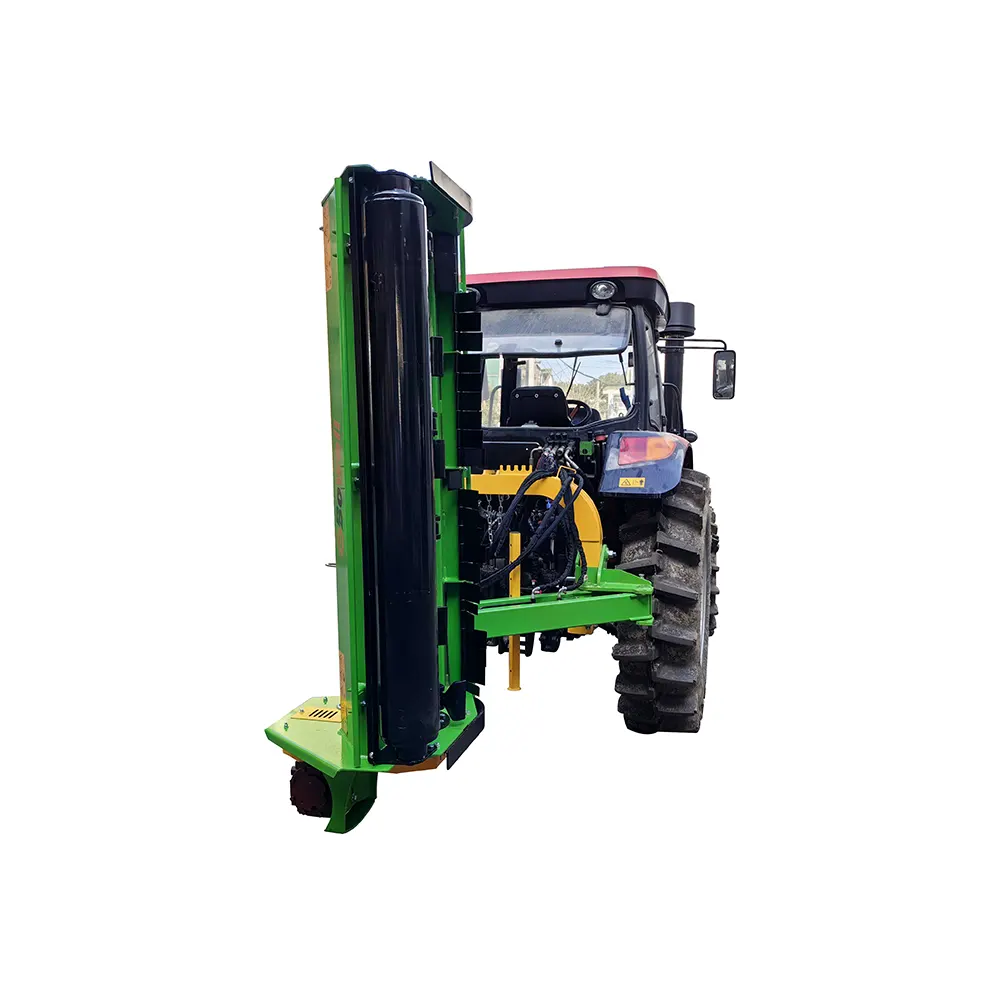

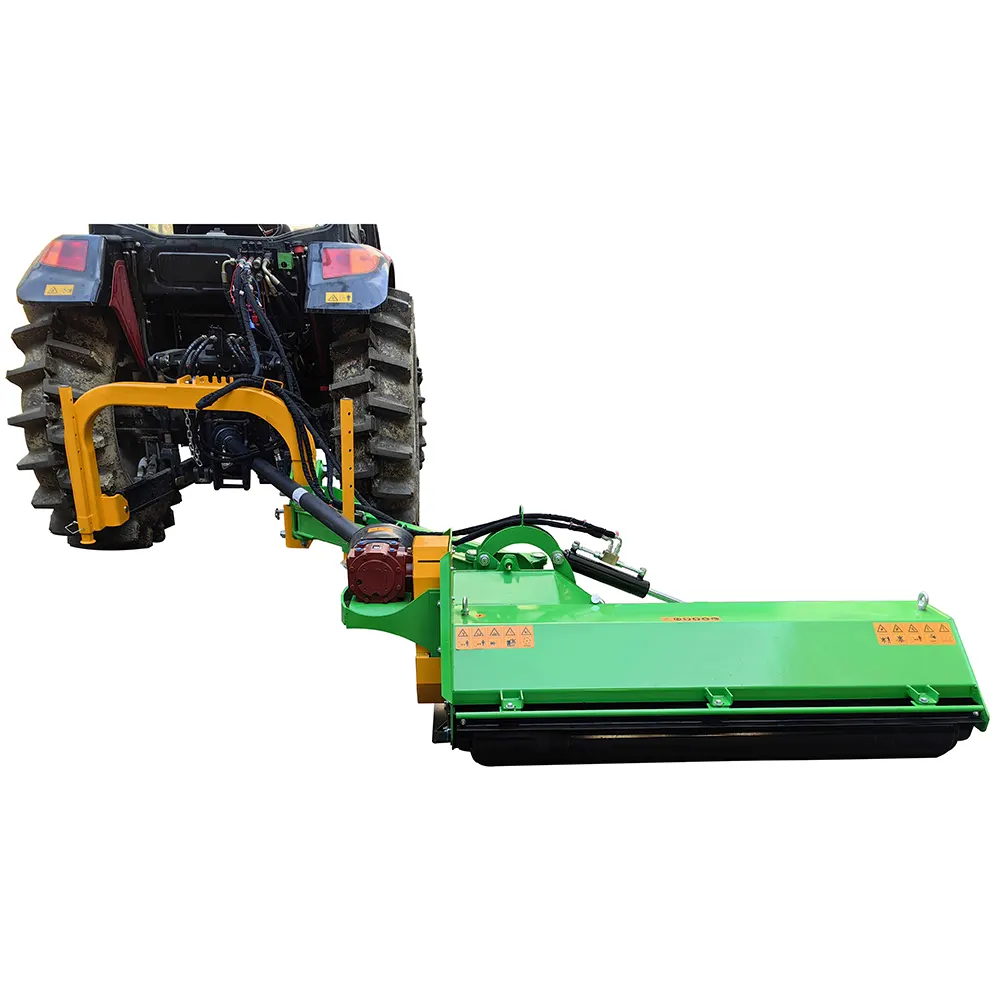

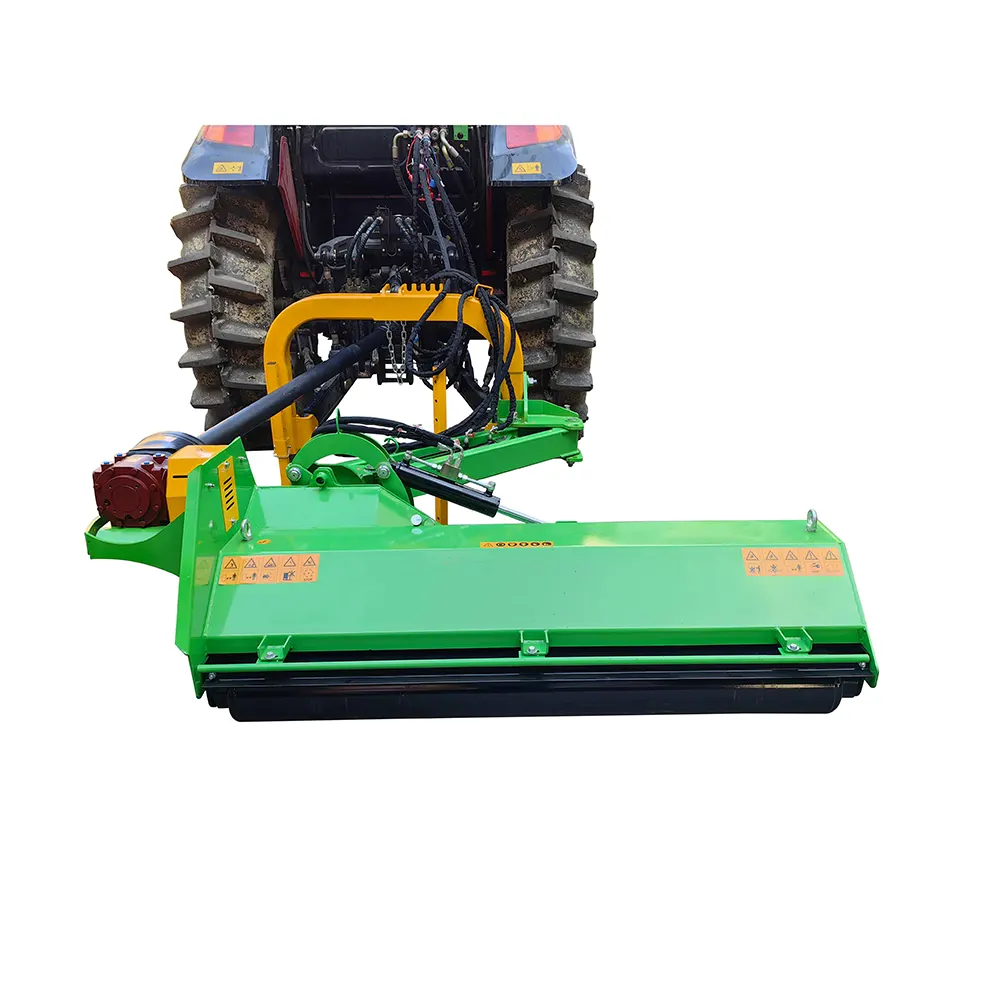

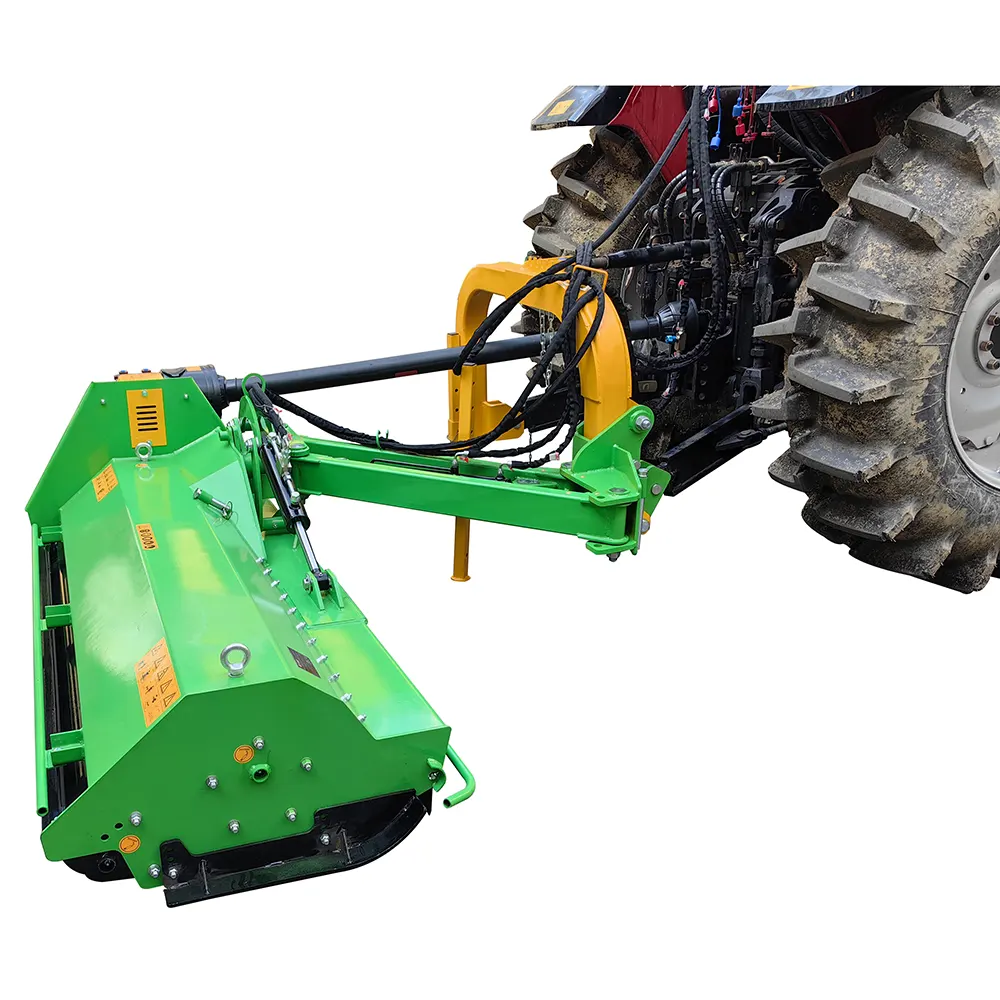

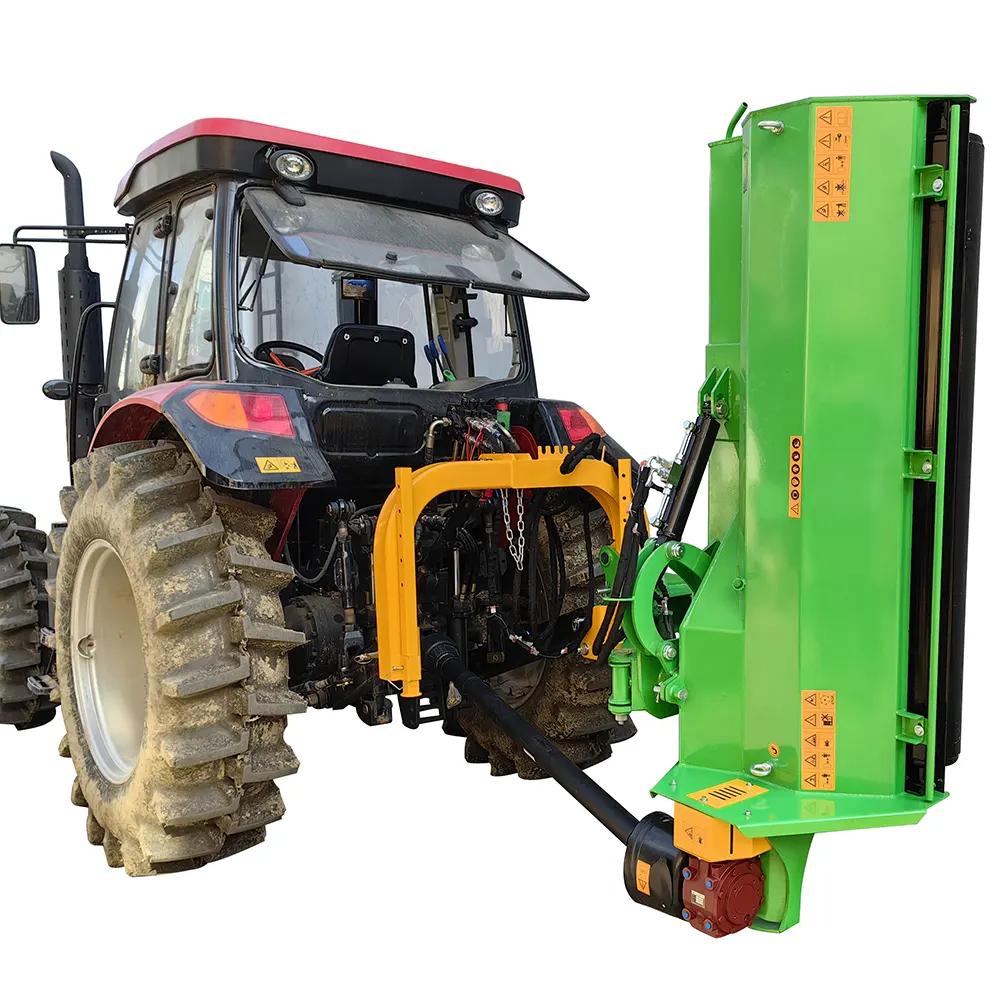

The BCRI‑220 Heavy Duty Ditch Mower is built for 60–90 HP tractors with CAT II three‑point hitch. It offers a 86″ cutting width, 60″ hydraulic side‑shift, and a full -60° to +90° mowing range, making it ideal for ditch banks, hedgerows, and demanding roadside applications. The mower can extend up to 134″ horizontally and 75″ vertically from the tractor’s center, providing outstanding reach.

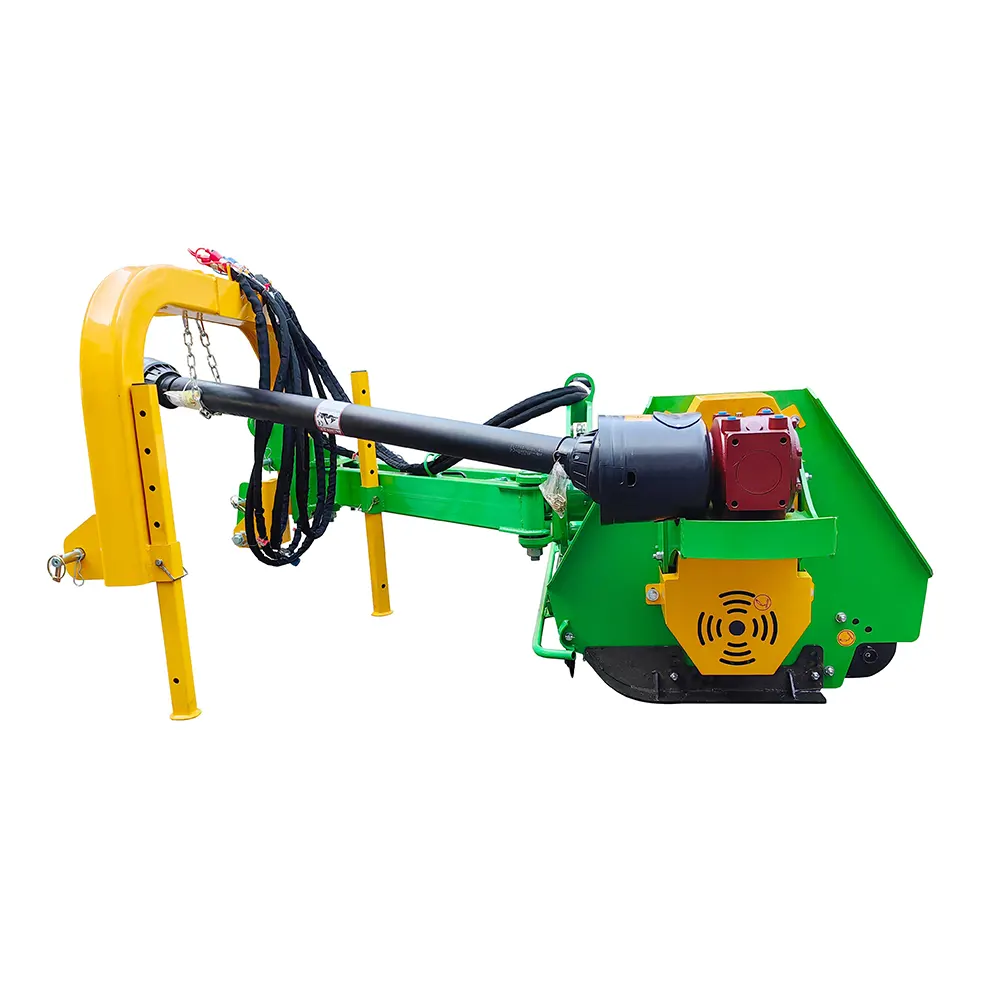

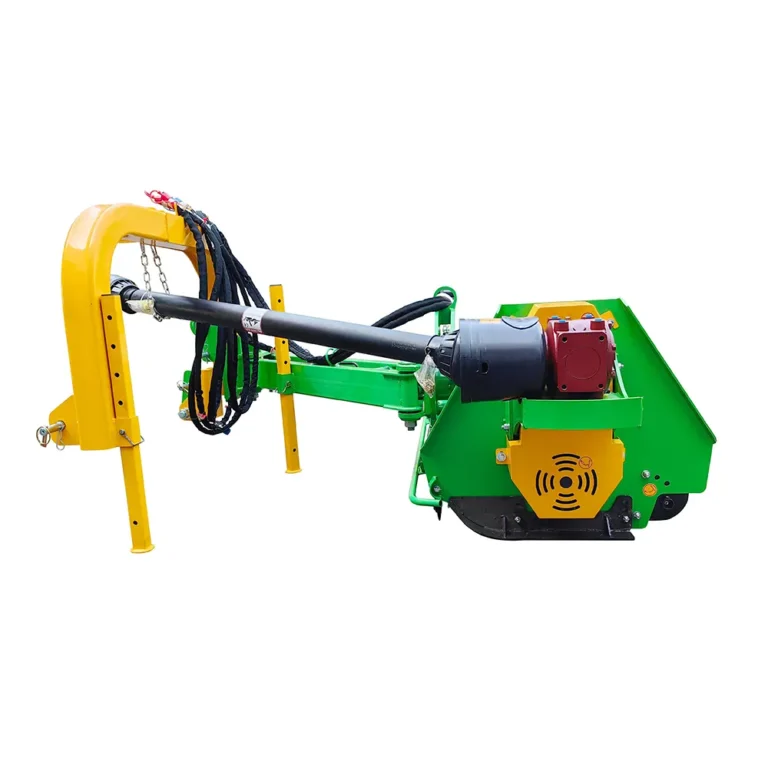

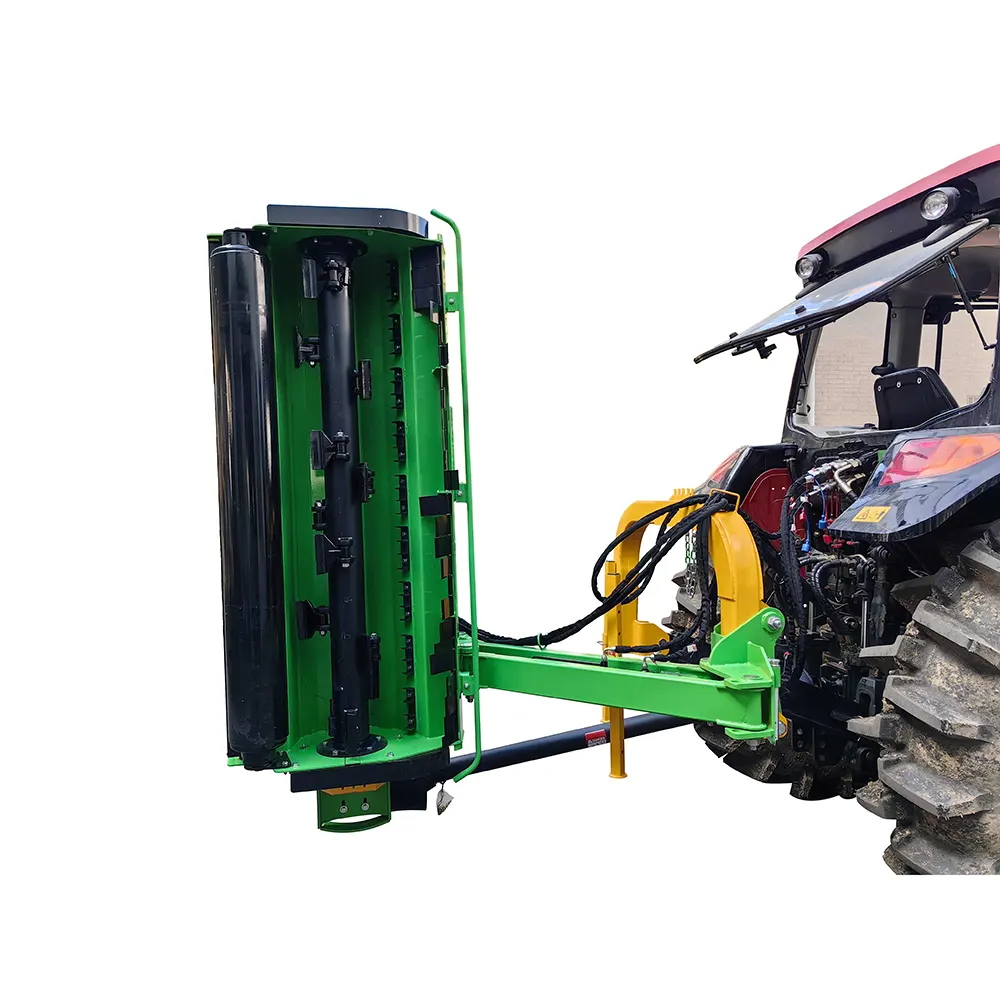

The BCRI‑220 uses 1300g. forged hammer flails mounted on a 2150 RPM electronically balanced rotor powered by a 4‑belt drive system with SKF ball bearings and CNC bearing seats. This setup, combined with the Comer gearbox, ensures exceptional mulching performance and virtually zero belt slippage. The mower’s rear roller is fully height‑adjustable (0.75″–2.95″) and has a 7.6″ diameter, maintaining even cutting on uneven terrain.

Safety is built‑in with dual safety valves that prevent the mower from dropping too quickly during lowering. Integrated transport lock pins keep the unit secure while in transit. The replaceable counter knife and front safety flaps help maintain optimal chopping performance while minimizing debris ejection.

Packaged in a solid wooden crate, the BCRI‑220 is shipped partially assembled. Once connected to two double‑acting hydraulic circuits, it can deliver 1.7–4.4 acres/hour productivity, making it one of the most efficient ditch mowers in its class.

PDF Icon

Product Manual (PDF)
BCRI-220 Product Manual.pdf

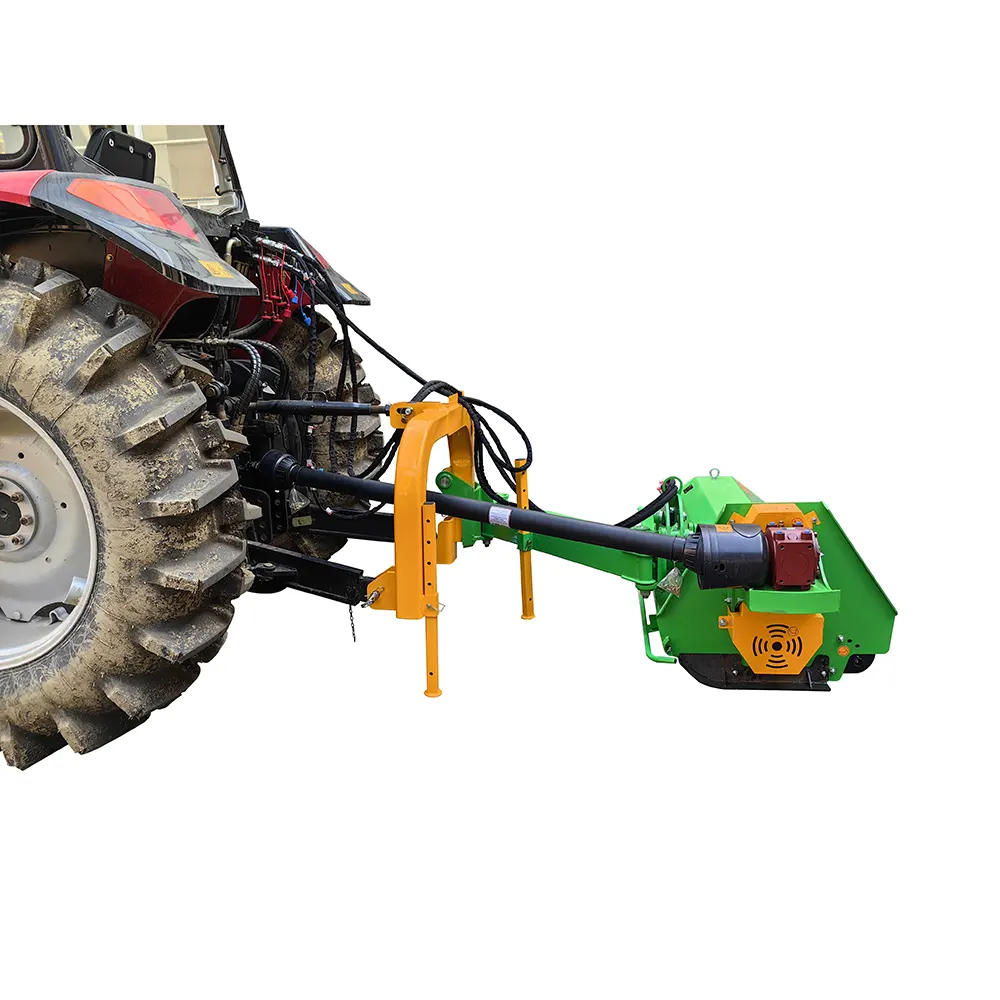

Tractor Power

Tractor Power
Optimized for 60–90 HP tractors, compatible with CAT II three‑point hitch.

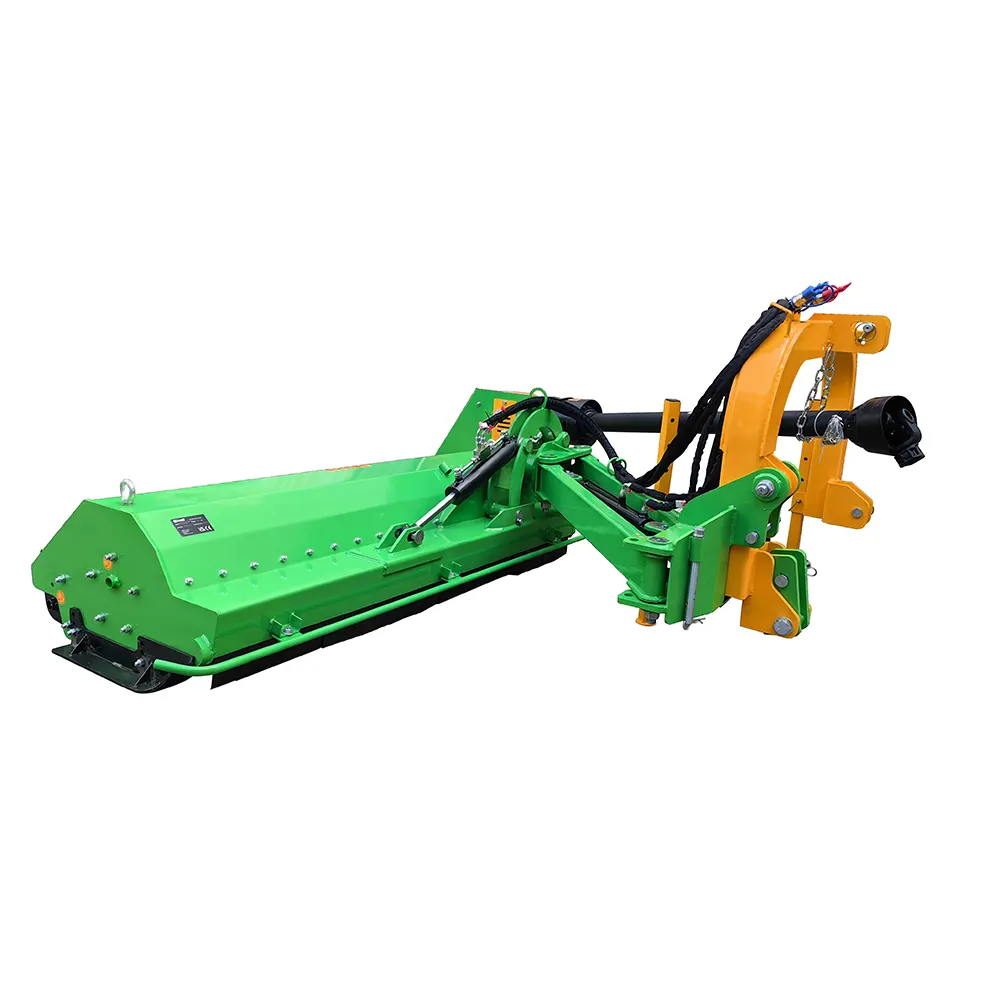

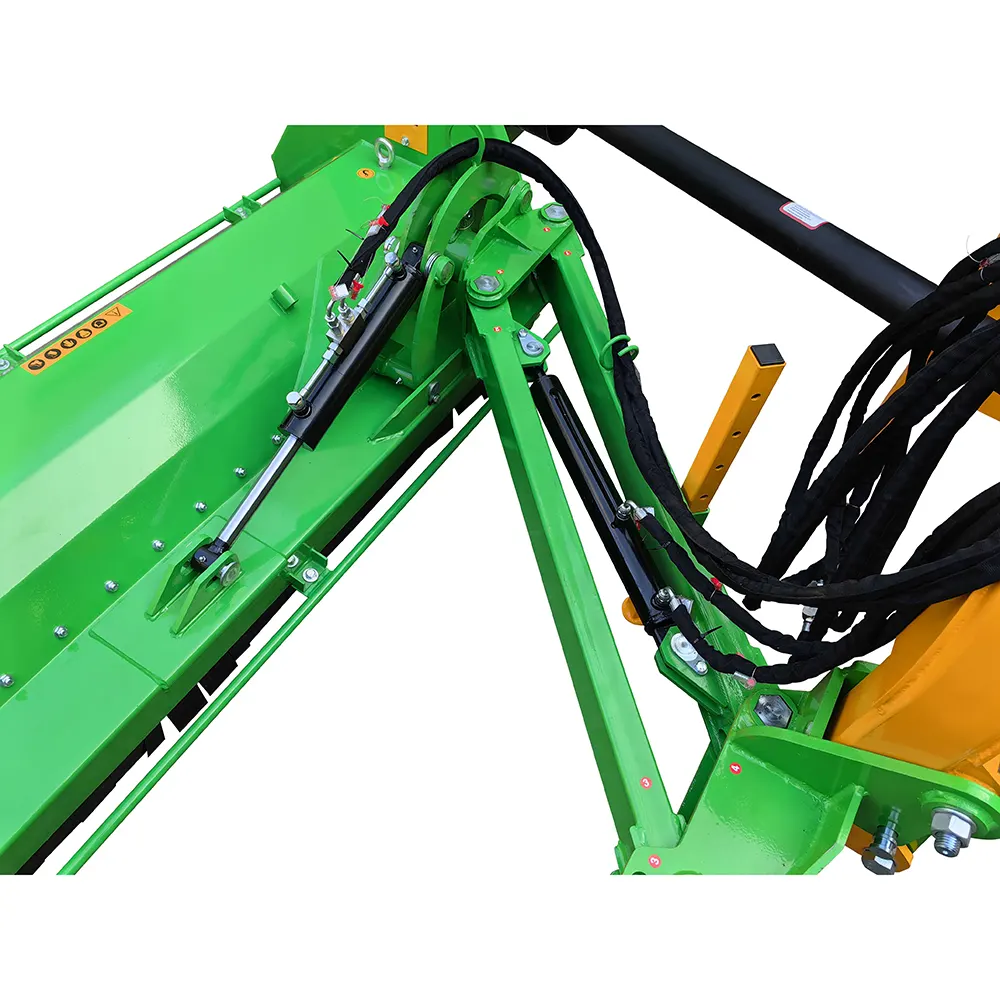

Hydraulic Side-Shift

Hydraulic Side-Shift
60″ hydraulic side‑shift and a -60° to +90° angle range provide maximum reach.

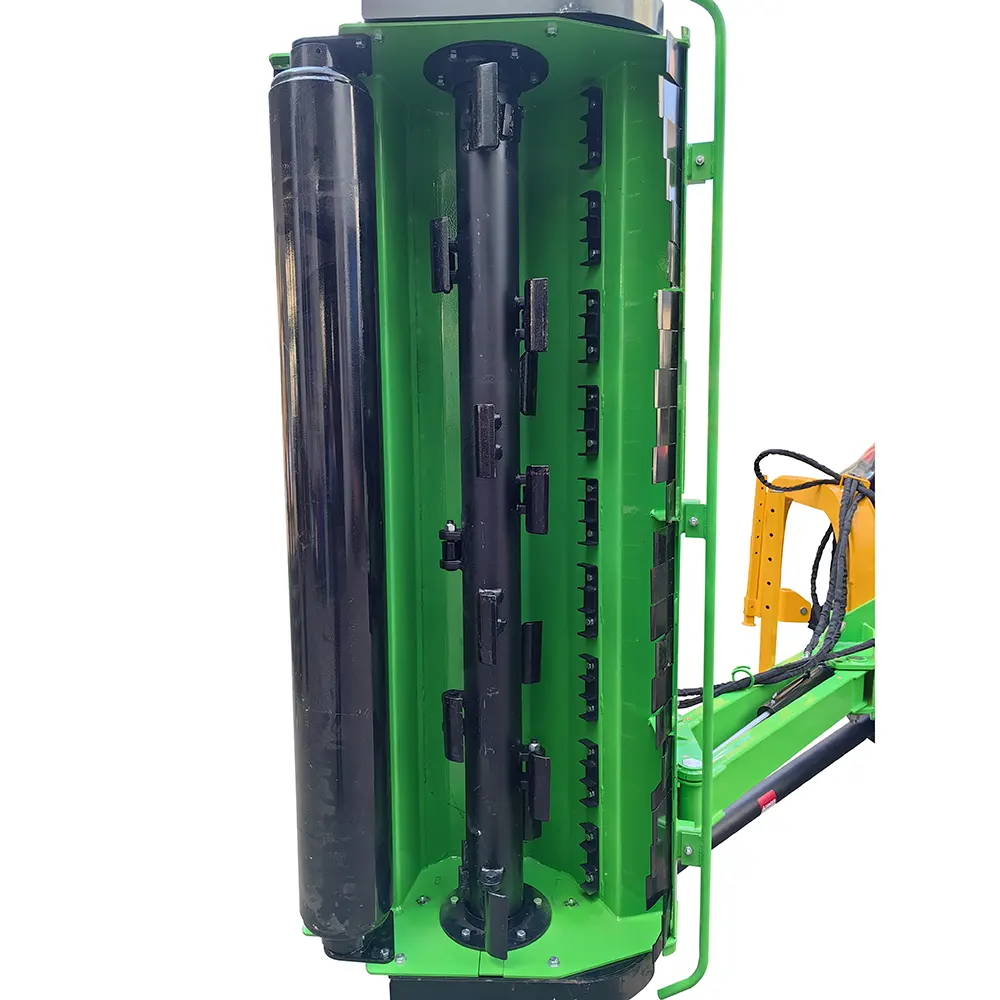

Forged Hammer Flails

Forged Hammer Flails
1300g. forged hammer flails provide high‑performance mulching on heavy vegetation.

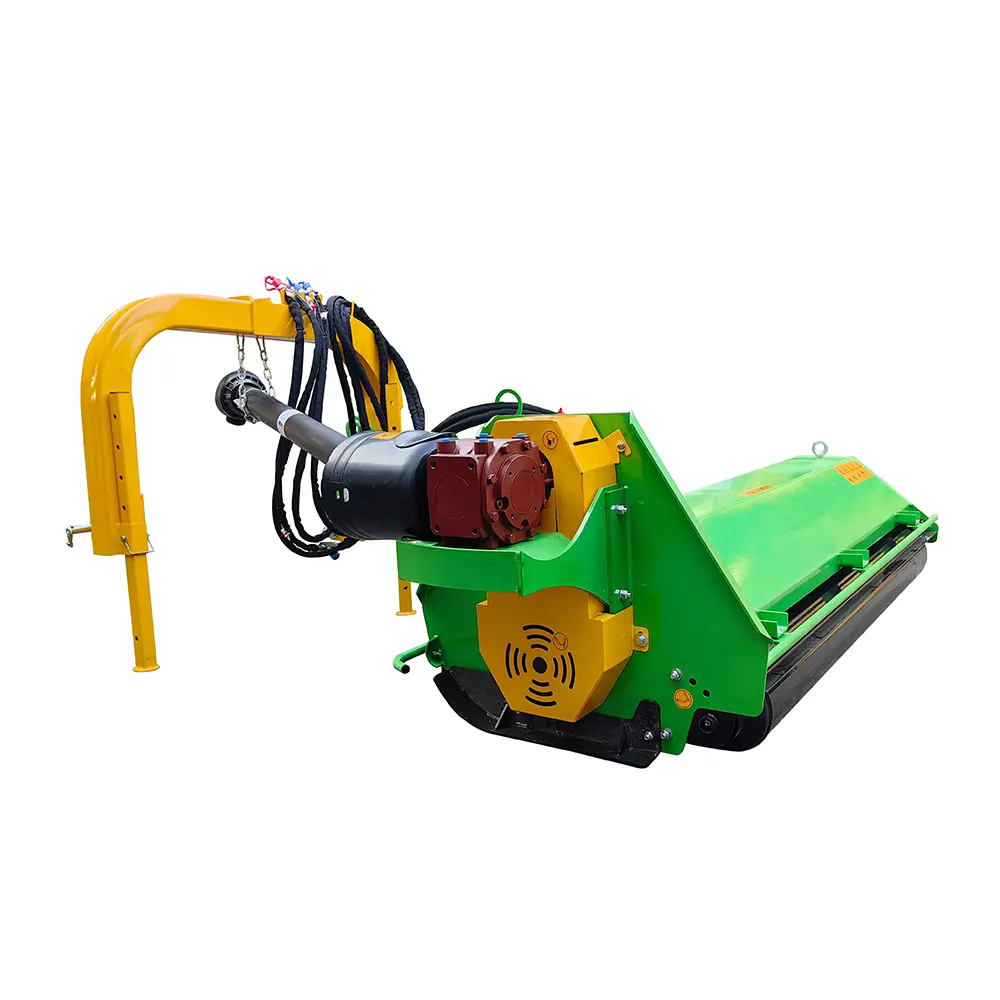

Comer Gearbox

Comer Gearbox & Bearings
Heavy‑duty Comer gearbox and SKF rotor shaft bearings ensure long‑lasting performance.

Heavy Duty Rear Roller

Heavy-Duty Rear Roller
Ball‑bearing rear roller prevents scalping and adjusts cutting height from 0.75″–2.95″.

Replaceable Counter Knife

Replaceable Counter Knife
Integrated counter knife and front safety flaps improve efficiency and operator safety.

Two-Year Warranty

The BCRI-220 Heavy Duty Flail Mower (SKU: VTI-BCRI220) has been rigorously tested to withstand tough conditions and includes a two-year warranty on the machine.
Learn More

PDF Icon

Parts Guide (PDF)
BCRI-220 Parts Guide.pdf

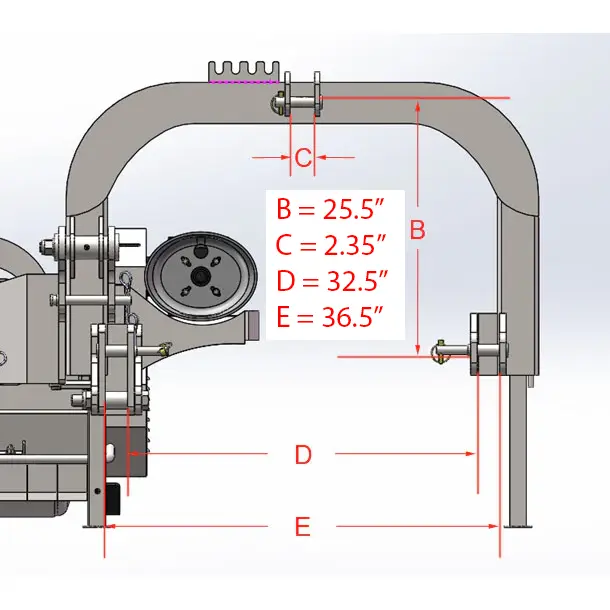

Tractor Diagram TRIM TORQ TANK
ABCDEFGH

Technical Data
BCRI-220
Dimensions (LxWxH)
98″ x 57″ x 30″
Total weight
1664 lb
Cutting width
86″
Adjustable mowing height
0.75″ – 2.95″
Hydraulic side movement
60″
Max. range from middle of tractor (horizontal)
134″

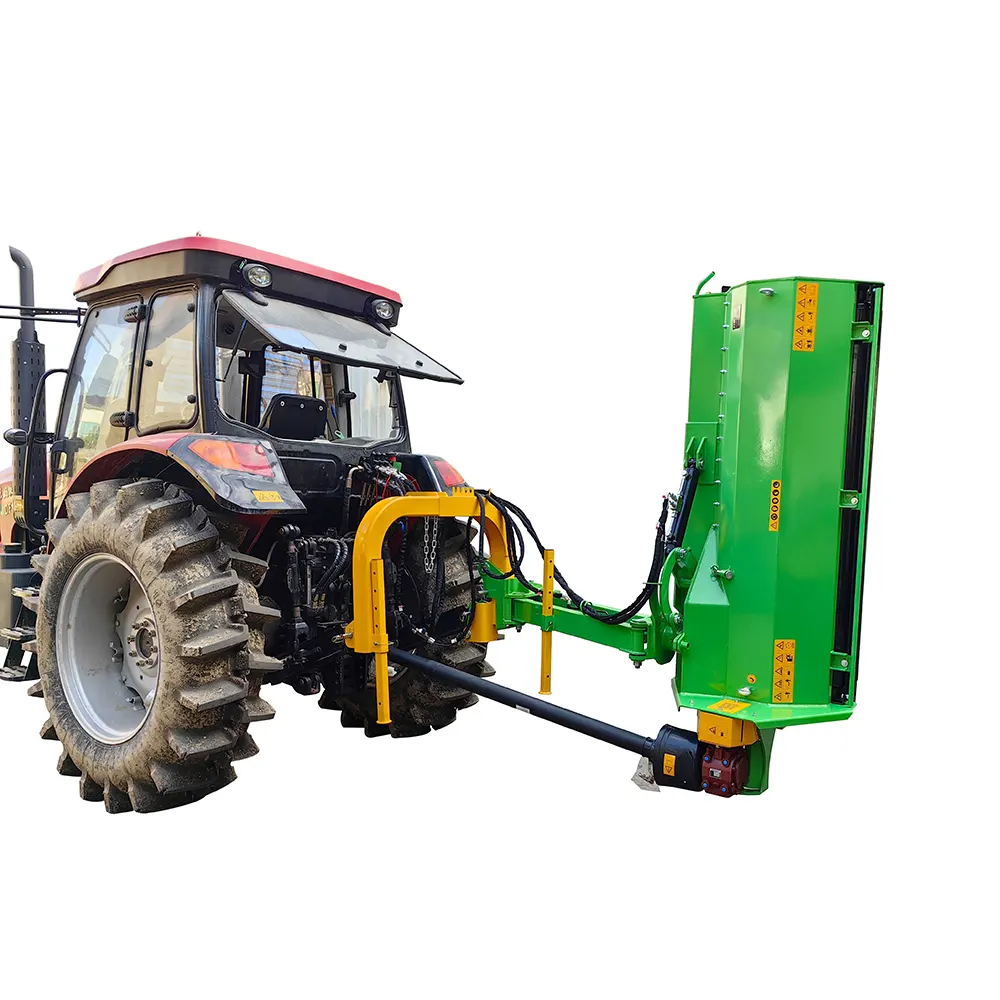

Max. range from middle of tractor (90° hedge trim)
75″
Slope mowing ability
-60° to +90°
3-point hitch
CAT II
PTO shaft speed
540 RPM
PTO shaft length
70″
Total length of hydraulic pipes
121″ / 131″
Working efficiency per hour (approx.)
1.7 – 4.4 acres
Drive system
4-belt system
Tractor engine power recommended
60–90 HP / 44–66 kW
Material strength (flail shaft cover)
0.15″ (4 mm)
Material strength (side walls)
0.23″ (6 mm)
Flail type
Hammer
Number of flails
20
Weight per flail
1300g.
Rotor (flail shaft) speed
2150 RPM
Painting
Powder coated
Wooden transport box (LxWxH)
111″ x 44″ x 36″
