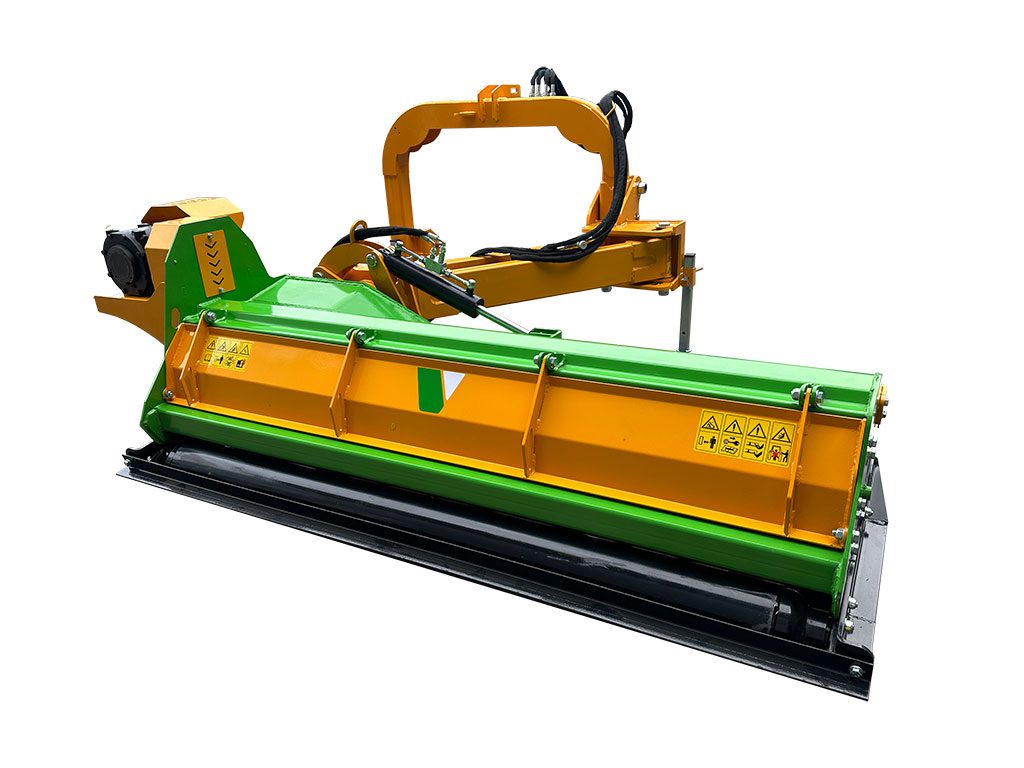

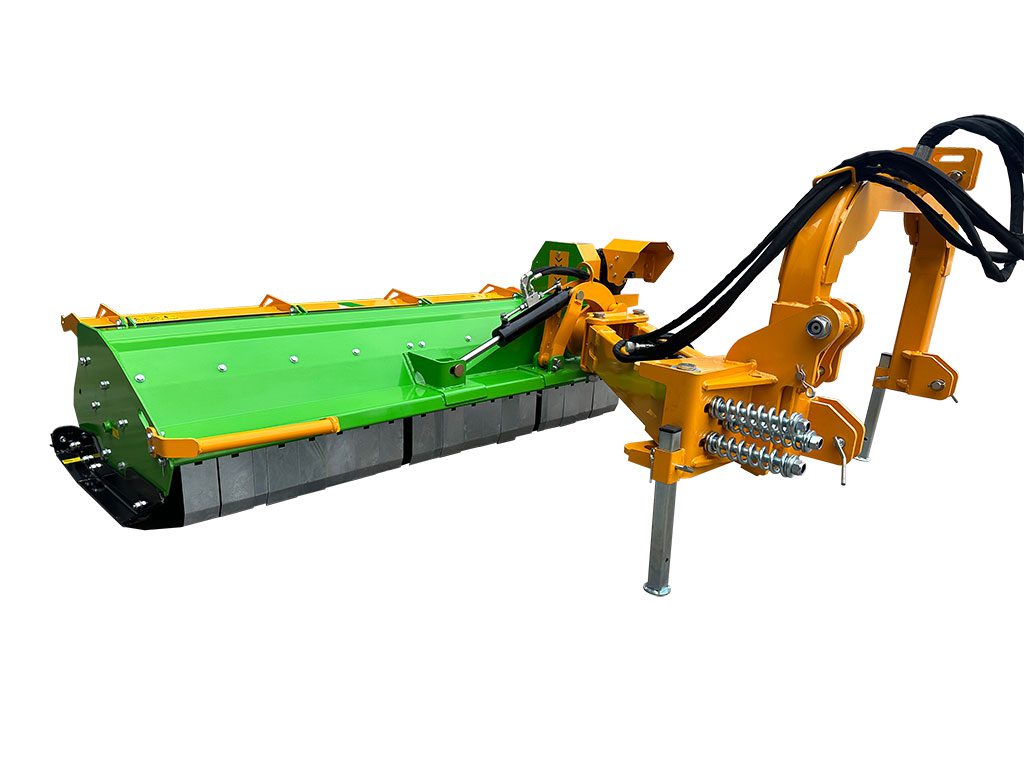

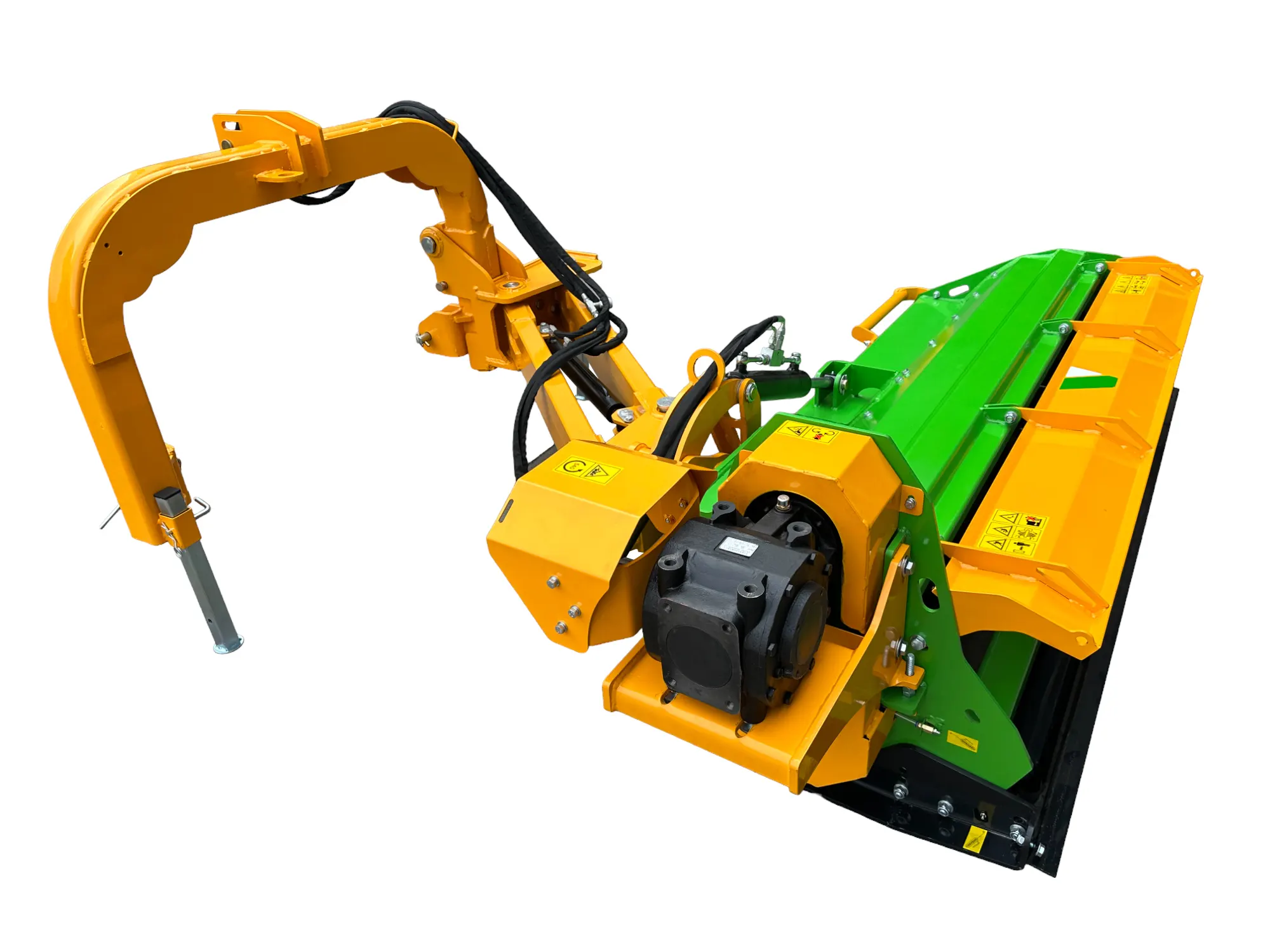

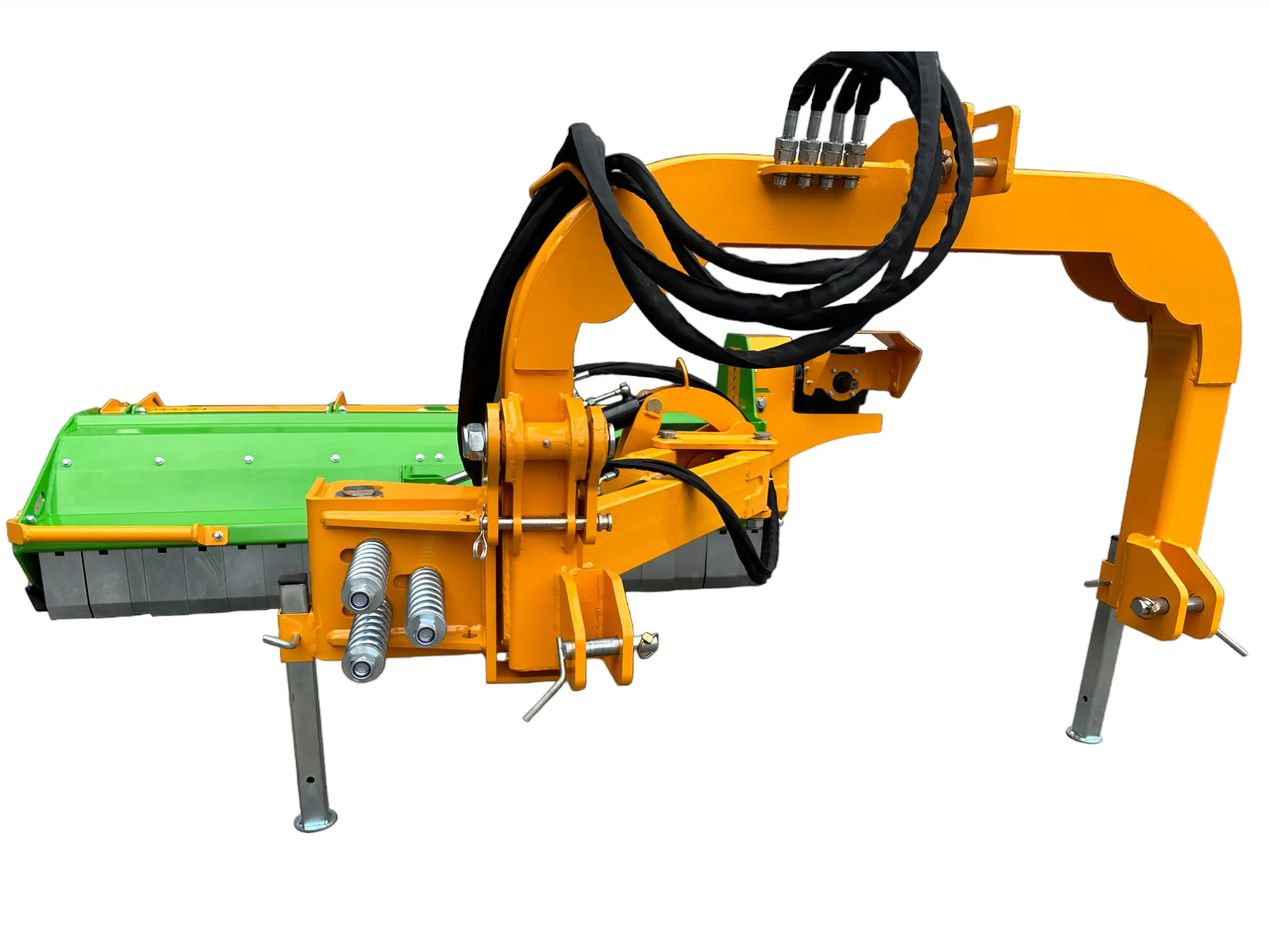

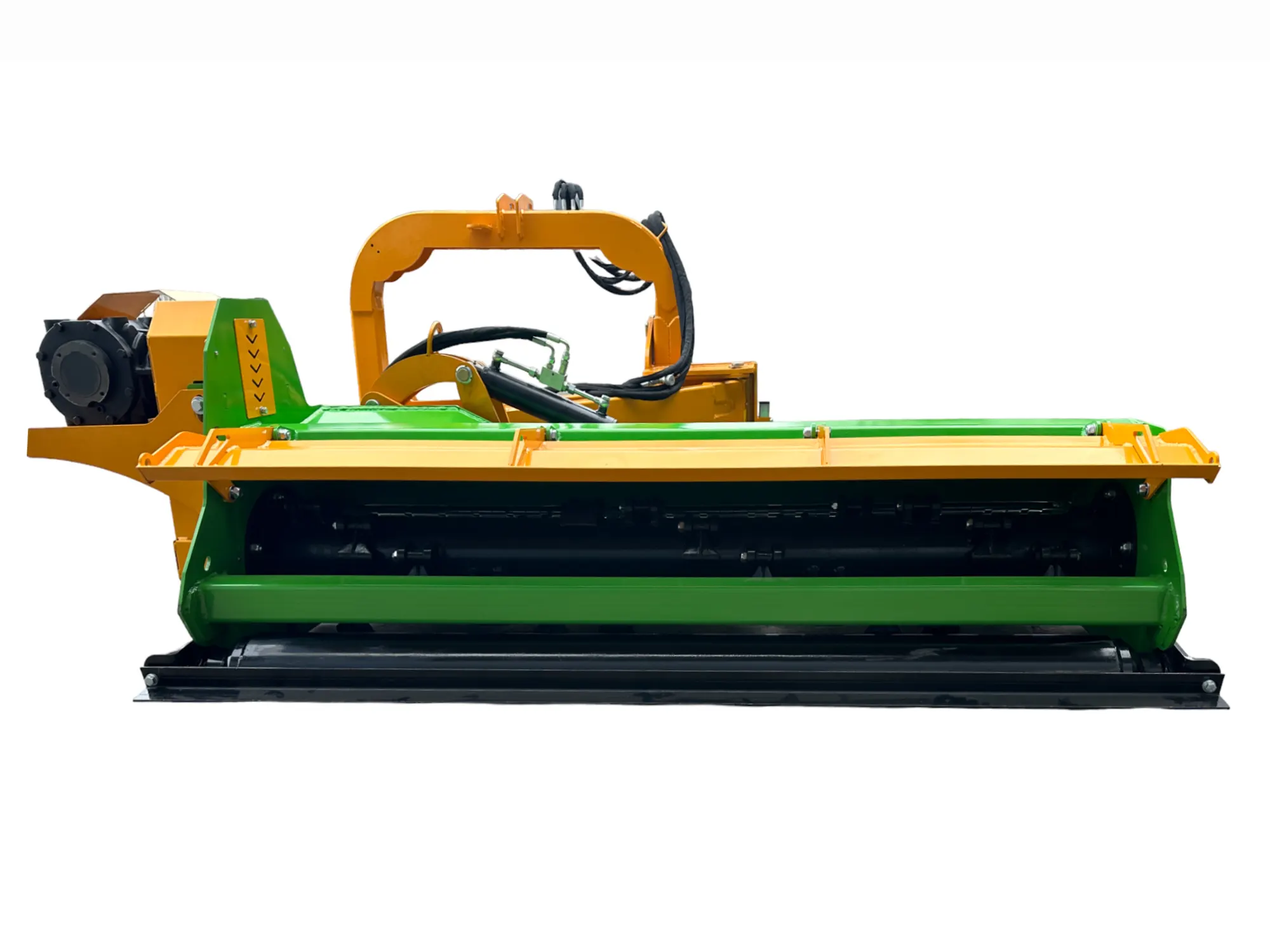

EMCP-94, Heavy-Duty Embankment Flail Mower with Crash Protection
We have added greater safety for 2023 with our new “Crash Protection” feature protecting both your tractor and the implement. Plus, we added size, 8 more inches!
The Victory EMCP embankment/verge flail mowers comply with all safety regulations and is CE tested.
➤ Tractor Power 80-120HP, CAT II 3-Point Hitch
➤ Hinged Rear Gate for easier Service and Maintenance, Spiral Flail Shaft for greater efficiency!
➤ Your tractor needs 2 double acting hydraulic control circuits to fully operate both hydraulic movements!
➤ Available in mowing width of 78″, 86″ and 94″!
➤ PTO Shaft included, 2 Years Warranty, Free Shipping!
The Victory EMCP Verge Flail Mower series is equipped with a powerful transmission made to withstand heavy duty use. This embankment mower is the ideal choice for mid-sized to larger tractors. This professional mower has a working width of 94″ and hydraulic linkage arms for maximum extension and flexibility. The maximum distance from the middle of the tractor to the right side of the mower is 148″ for the EMCP-94. The vertical movement is from an angle -55 degrees up to 90 degrees. Connected to your tractor EMCP mowers are equipped to handle almost any vegetation and can still offer high work efficiency.

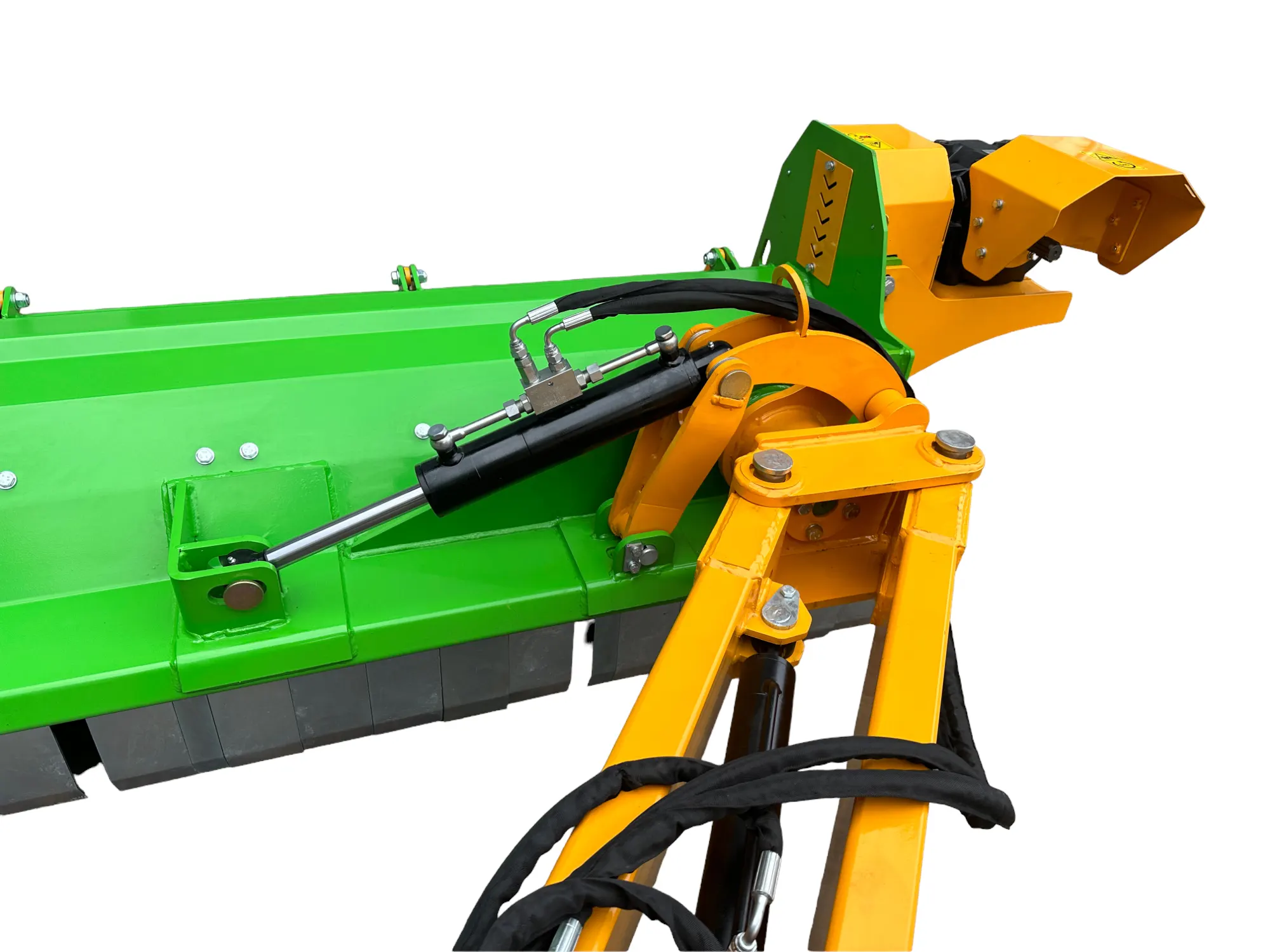

The hydraulic linkage cylinder and body cylinder not only allows mowing in almost any position. It also saves maneuvering in narrow corners. Your tractor needs 2 double acting hydraulic control circuits in order to fully operate the Hydraulics.
Mechanical Crash Protection System
Victory EMCP’s offer a maintenance free crash protection system (spring operated). When hitting a solid obstacle, the mower’s safety latch releases and lets the mower swing backwards. This feature allows the tractor driver the opportunity to brake in time and avoid serious damage to the mower and your tractor. The safety feature is totally maintenance free and runs reliably for years.
The diameter of the flail shaft tube has been increased to 6 5/8 inches producing a greatly improved balance and greater efficiency for the spiral flail shaft because of the larger diameter of the flails rotating.
We are using 32 forged galvanized steel high performance flail hammers – each with a weight of 800-grams, ensuring a perfect mowing result on grass, undergrowth, bushes and branches up to 1 1/2″ in diameter. The mowing height is adjusted by the heavy self-cleaning rear roller preventing the mower from cutting into the ground on bumpy surface. The new counter knives help to even cut high grass with perfect efficiency. The outside placed gearbox increases the horizontal extension even further.
The professional free-wheel transmission (gearbox) is rated at 75HP and lets the knife shaft turn with the PTO switched off. The movement will not be transferred to the tractor. The mower´s front is equipped with safety flaps to prevent debris and stones being thrown out of the machine.
All EMCP mowers have easily accessible stainless steel grease nipples for easy service and height adjustable skids and support legs for storage. The 65″ PTO shaft is part of the accessories for all EMCP mowers. The short and easy service plan in the user manual helps you with maintenance and service.
The nearly assembled machine is delivered in a steel crate. Just the 3-point hitch, the linkage arms and the hydraulic cylinders and the PTO shaft protector have to be assembled, taking you less than 2 hours for assembly. We offer an assembly guide with photos to assist you.
Like all Victory mowers, the EMCP series has an electronically balanced knives shaft which is driven by 5 belts. Despite the high weight for the number of 800-gram flails, the EMCP belt system guarantees an almost 100% power transfer. The gear box runs in an oil bath, make sure you add oil before you first use the machine.
Underneath the 6mm steel housing sits the laser balanced knives shaft with 26 to 32 high performance forged galvanized steel hammer shaped flails. Powered by the PTO shaft, the rotor shaft turns with 2,150 RPM and cuts the material down to a minimum for fast decomposing.
✅ PTO shaft included
✅ crash protection device for more safety
✅ 2 years of warranty included with your purchase
✅ Reinforced Cat II 3-Point Hitch
✅ Forged galvanized steel 800-gram high performance hammer flails
✅ replaceable counter knives for optimal shredding
✅ Gearbox rated at 75HP
✅ 5 belts drive system
Victory Tractor Implements combines the very best value with a maximum in personalized Customer Service.
ATTENTION
Partially assembled machines do not contain any fuel, oil or other fluids or grease needed for operation! BEFORE USING THE MACHINE please carefully read the user manual.
